BR-POE-M POE Surge Protector with 3kA Nominal Current DIN Rail Mounted and IP20 Protection for RJ45 Networks Industrial SPD Manufacturer

Large Image : BR-POE-M POE Surge Protector with 3kA Nominal Current DIN Rail Mounted and IP20 Protection for RJ45 Networks Industrial SPD Manufacturer

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	ISO9001/ISO14001/ISO45001
Model Number:	BR-POE-M

Payment & Shipping Terms:

Minimum Order Quantity:	20PCS
Packaging Details:	carton
Delivery Time:	15 days after receipt of deposit
Payment Terms:	TT
Supply Ability:	1000000 per month

Contact Now

BR-POE-M POE Surge Protector with 3kA Nominal Current DIN Rail Mounted and IP20 Protection for RJ45 Networks Industrial SPD Manufacturer

Description

Nominal Current:	3 KA	Weight:	0.125kg
Degree Of Protection:	IP20	Operating Temperature Range:	-40℃…+80℃
Product Name:	Poe Lightning Protector	Warranty:	3 Years
Name:	Industrial SPD Manufacturer
Highlight:	POE surge arrester DIN rail , RJ45 surge protector network systems , BR-POE-M signal surge arrestor

BR-POE-M Signal Surge Arrester for Network Systems

Product Overview

Technical Specifications

Specification	Symbol	Value
Test standards		IEC 61643-21
SPD class		TYPE2 P1
Nominal voltage	Un	48V
Max. continuous operating d.c. voltage	Uc	48V
Max. continuous operating a.c. voltage	Uc	34V
Max. continuous operating d.c. voltage pair-pair (PoE)	Uc	57V
Nominal current	IL	1A
D1 Lightning impulse current (10/350 μs) per line	Iimp	0.5kA
C2 Nominal discharge current (8/20μs) line-line	In	150A
C2 Nominal discharge current (8/20μs) line-PG	In	3kA
C2 Total nominal discharge current (8/20μs) line-PG	In	10kA
C2 Nominal discharge current (8/20μs) pair-pair (PoE)	In	150A
Voltage protection level pair-pair for In C2	Up	≤180V
Voltage protection level line-PG for In C2	Up	≤500V
Voltage protection level line-line for In C2 (POE)	Up	≤600V
Insertion loss at 250 MHz		≤3dB
Capacitance line-line	C	≤30pF
Capacitance line-PG	C	≤25pF
Operating temperature range	Tu	-40℃ to +80℃
For mounting on		35mm DIN rails acc. to EN 60715
Connection (input/output)		RJ45 socket/RJ45 socket
Pinning		1/2, 3/6, 4/5, 7/8
Earthing via		35mm DIN rails acc. to EN 60715
Enclosure material		Aluminium alloy
Degree of protection (plugged-in)		IP20
Order Code		D9160

Key Features

SPD for PoE designed according to IEC 61643-21 standards

Supports PoE applications in Fast/Gigabit Ethernet environments

Supports voltage: 48Vdc / 34Vac

Circuit and current protection

Enhanced surge protection capabilities

Mounts on 35mm DIN rails according to EN 60715

Ensures equipment operates properly under surge conditions

Protects against transient overvoltages from lightning and electrical switching

Operating conditions: 5%-95% humidity, -40℃~+80℃ temperature, 70kPa~106kPa pressure

Low clamping voltage operation

Absorbs high transient energy for long-term system reliability

Protects against line inductance and earth over voltage damage

High-grade materials ensure safe data transfer without loss

Applications

Power Over Ethernet (PoE) applications
Wireless bridge and network camera protection
Network equipment powered via Ethernet cable
Protection for network devices powered from Ethernet
PoE centralized power supply for HD digital surveillance cameras, exchangers, and concentrators
Protection against surges generated by PoE-enabled devices
Electronic device protection from voltage spikes
Protection against electrical transients
Ethernet device protection from lightning and surge damage
Server equipment, routers, workstations, HUBs, and broadband systems
LAN/Ethernet Network/switch protection from electrostatic discharge and voltage surges
Wireless bridge port protection from surge and over voltage
Data line applications to prevent damage from energy spikes caused by lightning and power events

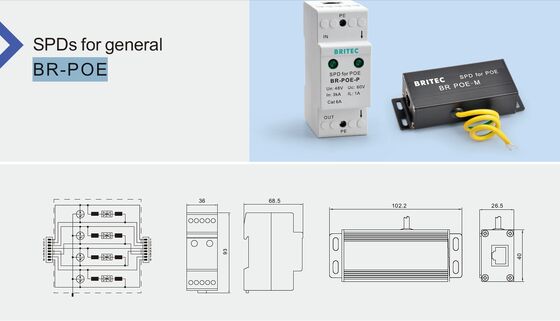

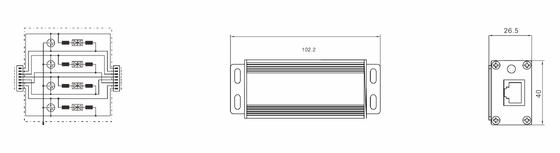

Product Images

About Britec

Britec Imp. & Exp. Wenzhou Co., Ltd. was established in 2003. Britec is a professional surge protective devices (SPD) manufacturer who designs and manufactures surge protection devices for power protection, data protection, PV protection, and more.

Britec operates an in-house laboratory equipped with 100kA 10/350µs lightning impulse generator, 25kA 10/350µs impulse generator, 120kA 8/20µs generator, 1.2/50µs 20kV combination generator, TOV test station, and other advanced test equipment.

The company maintains ISO9001, ISO45001, and ISO14001 management system certifications. Various products are TUV, CB CE, RoHS certified.

Britec has established long-term business relationships with European customers and extensive experience working with multi-national companies.
