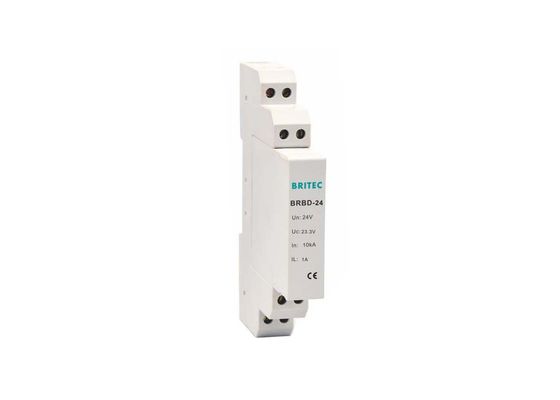

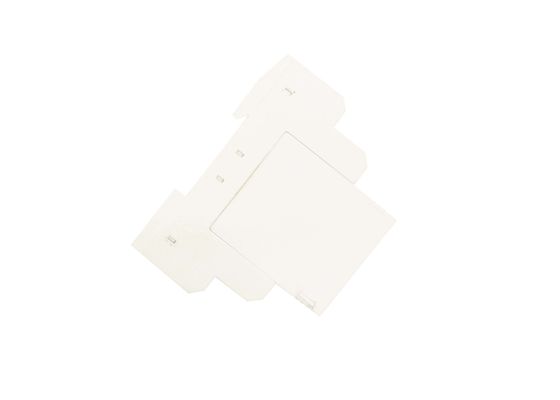

Signal Data Surge Protector Devices Power Line SPDs For Data Transmission

Signal Data Surge Protector Devices Power Line SPDs For Data Transmission

  • Signal Data Surge Protector Devices Power Line SPDs For Data Transmission
  • Signal Data Surge Protector Devices Power Line SPDs For Data Transmission
Signal Data Surge Protector Devices Power Line SPDs For Data Transmission
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BRBD-4L-24
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Place Of Origin: Zhejiang, China (Mainland) Un: 24V
Model Number: BRBD-4L-24 Item Name: Data Surge Protection Device
Material: Polyamide PA6.6 Uc: 23.3V
IL: 1A Tu: -40℃-80℃
FG: 7.8 MHz Standard: IEC61643-21
Protection: IP20 In(per Line): 10kA
High Light:

data line surge protector

,

ac data surge protection



Signal Surge Protective Devices Power Line SPDs for Data Transmission



Characteristics:



• Surge protection device.
• Nominal voltage: 24V.
• Nominal current at 45℃: 1A.
• C2 Nominal discharge current (8/20us) per line: 10kA.
• SPDs for Din rail mounting to enable easy installation.
• According to IEC 61643-21.
• Degree of protection: IP20.



Product detail:



  BRBD-4L-24
Test standards IEC 61643-21
SPD class TYPE2 P1
Nominal voltage                                                             Un 24v
Max. continuous operating d.c. voltage                         Uc 33V
Max. continuous operating a.c. voltage                         Uc 23.3V
Nominal current at 45℃                                                  IL 1A
C2 Total nominal discharge current (8/20us)                  In 20kA
C2 Nominal discharge current (8/20us) per line             In 10kA
Voltage protection level line-line for ln C2                     Up ≤55V
Voltage protection level line-PG for ln C2                      Up ≤600V
Voltage protection level line-line at 1 kV / us C3           Up ≤45V
Voltage protection level line-PG at 1 kV / us C3            Up ≤550V
Sereies impedance per line 1 Ohm
Cut-off frequency line-PG                                               fG 7.8 MHz
Capacitance line-line                                                       C ≤1.0nF
Capacitance line-PG                                                       C ≤16pF
Operating temperature range                                         Tu -40℃…+80℃
Enclosure material                        polyamide PA 6.6
Degree of protection (plugged-in) IP20

Dimension:

Signal Data Surge Protector Devices Power Line SPDs For Data Transmission 0

Application:

• Protection against indirect lightning effects.
• Protect equipment with high-speed signal.
• For the protection of network equipment.
• Protect low frequency signalling application.
• It protects AC power supply of sensitive data equipment against lightning induced surges.
• Protects your AC power circuits against lightning induced surges.
• Protect electronic equipment and power supply ports from power surge or lightning induced surges
  onto the signal cable, ground potential difference between equipment and electromagnetic coupling.

Certification:

Signal Data Surge Protector Devices Power Line SPDs For Data Transmission 1

Shipping:

By sea, By air, By express etc.

Signal Data Surge Protector Devices Power Line SPDs For Data Transmission 2

Company Introduction:

Britec Electric Wenzhou Co., Ltd. is specialized in the production of lightning protection. 17 years’
experience, ISO, TUV & CE certificated, three-hours reach Ningbo port, this is how we keep
superior quality and competitive offers for global valued customers. Our main products cover AC
surge arrester, DC surge protection, data surge protector, lightning protective device, etc.

Signal Data Surge Protector Devices Power Line SPDs For Data Transmission 3

Test:

Signal Data Surge Protector Devices Power Line SPDs For Data Transmission 4

FAQ:

Q1. English version is available?
  A: Yes.

Q2. What is the lead time for delivery?
  A: 15-30 workdays according to your quantity.

Q3. Do you have any MOQ limit?
  A: 100pcs.

Q4. What express do you often use?
  A: TNT, DHL, UPS, FedEx, etc. Any method you can choose!

Q5. What's your acceptable payment term?
  A: Our usually payment term is T/T.
