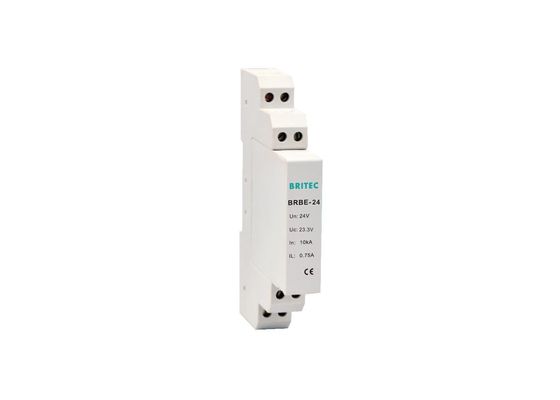

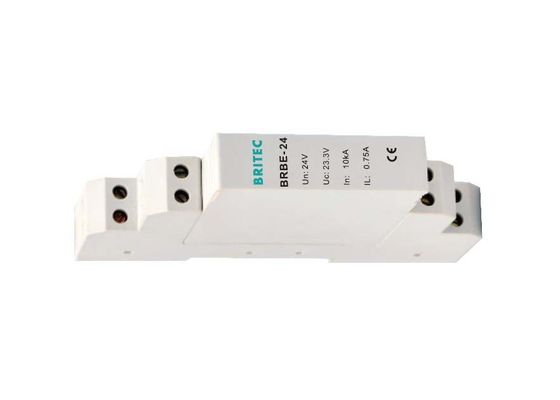

Signal Din Rail SPD Data Surge Protector 24V Surge Arrester For Data Line Protection

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BRBE-4L-24

Payment & Shipping Terms:

Minimum Order Quantity:	200 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Place Of Origin:	Zhejiang, China (Mainland)	Type:	TYPE2 P1
Model Number:	BRBE-4L-24	Item Name:	Data Surge Protector
Material:	Polyamide PA 6.6	Un:	24V
IL:	0.75A	Tu:	-40℃-80℃
High Light:	data center surge protection , ac data surge protection

24V Surge Arrester For Data Line Protection Signal Din Rail SPD

Characteristics:

• Modular Din-rail surge protection device.

• Version: Plug-in.

• Maximum continuous operating a.c. voltage: 23.3V.

• Total nominal discharge current (8/20us) 20kA.

• Frequency: 6.8 MHz.

• Polyamide PA 6.6 enclosure.

• Wide-temperature model available for -40 to 85°C environments.

• Data protector in accordance with standard IEC 61643-21.

• SPDs to protect the systems against the transient overvoltage (lightning).

Product Details:

	BRBE-4L-24
Test standards	IEC 61643-21
SPD class	TYPE2 P1
Nominal voltage Un	24V
Max. continuous operating d.c. voltage Uc	33V
Max. continuous operating a.c. voltage Uc	23.3V
Nominal current at 45℃ IL	0.75A
C2 Total nominal discharge current (8/20us) In	20kA
C2 Nominal discharge current (8/20us) per line In	10kA
Voltage protection level line-line for ln C2 Up	≤105V
Voltage protection level line-PG for ln C2 Up	≤85V
Voltage protection level line-line at 1 kV / us C3 Up	≤90V
Voltage protection level line-PG at 1 kV / us C3 Up	≤45V
Sereies impedance per line	1.8 Ohm
Cut-off frequency line-PG fG	6.8 MHz
Capacitance line-line C	≤0.5nF
Capacitance line-PG C	≤1.0nF
Operating temperature range Tu	-40℃…+80℃
Enclosure material	polyamide PA 6.6
Degree of protection (plugged-in)	IP20

Technology characteristic:

Advantage:

• High discharge capability.

• Compact size for easy installation.

• Plug and play.

• Fail-safe disconnection system.

• Low capacitance design minimizes signal loss.

Installation:

• The ground point of the surge protector and of the protected equipment must be bonded.

• The protection is installed at the service entrance of the installation to divert impulse current as soon

as possible.

• The earth resistance must adhere to the local electrical code.

• Protected and unprotected cables must be kept well apart to limit coupling.

Why need data surge protector?

• Telecommunication and data transmission devices are increasingly more vulnerable to lightning

induced voltage surges. They have become more sensitive, complex and have an increased

vulnerability to induced surges due to their possible connection across several different networks.

These devices are critical to a company’s communications and information processing. As such, it is

prudent to insure them against these potentially costly and disruptive events. A data line surge

protector installed in-line, directly in front of a sensitive piece of equipment will increase their useful

life and maintain the continuity of the flow of your information.

About us:

Britec Electric Wenzhou Co., LTD. a Chinese professional SPD manufacture company. Our company

was established in 2003, is professional only produce surge protection device of enterprise. Welcome

the friends from anywhere in the world, as long as you have about lightning arrester demand, please

Signal Din Rail SPD Data Surge Protector 24V Surge Arrester For Data Line Protection 1

Certifications:

Signal Din Rail SPD Data Surge Protector 24V Surge Arrester For Data Line Protection 2

Payment & Shipping:

Signal Din Rail SPD Data Surge Protector 24V Surge Arrester For Data Line Protection 3

FAQ:

Q1:Are you a manufacturer or trading company?
A:We are a manufacturer of lightning protection.

Q2: What is warranty time?
A: It is usually valid for two years.

Q3: How long is your delivery time?
A: Generally, within 15-30 days after deposit received.

Q4: Can we visit you factory?
A: Warmly welcome!

Q5: Do you provide samples? Is it free or extra?
A: Available upon request, but it is not free.
