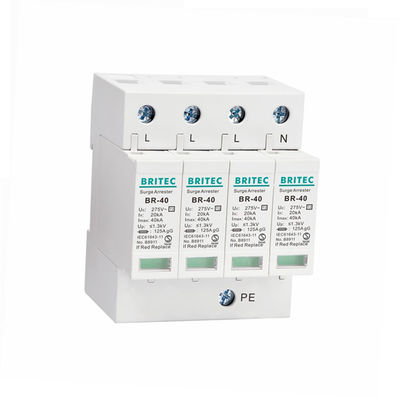

BR-40 4P 40kA Surge Protection Device with 4 Poles Protection and 25ns Fast Response Time

Large Image : BR-40 4P 40kA Surge Protection Device with 4 Poles Protection and 25ns Fast Response Time

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV/CB/CE/ROHS/ISO9001/ISO14001
Model Number:	BR-40 4P
Document:	BR-40 4P.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	30 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C,D/A,T/T,Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

BR-40 4P 40kA Surge Protection Device with 4 Poles Protection and 25ns Fast Response Time

Description

Item Name:	4 Poles Lighting Surge	Model Numbers:	BR-40 4P
Customized:	Yes	Protection Level Up:	1.3kV
OEM/ODM:	Available	MOQ:	30 PCS
Type:	Type 2	Standard:	IEC Standard
Response Time:	25ns	Brand Name:	BRITEC
Keyword:	Lightning Protection
Highlight:	class 2 surge Arrester protection device , 4 Pole surge Lightning Arrester , Three phase surge Lightning Arrester

BR-40 4P 40kA Surge Arrester Protection Device

40kA 4 poles surge arrestor single phase lightning surge protector with TUV Type 2 certification. Three-phase protection for TN-S systems with high discharge capacity and quick response.

We can produce according to your requirements. Contact us for the lowest price.

Key Features

Three-phase protection for TN-S system
Pluggable module for easy installation and maintenance
High discharge capacity with quick response
Double thermal disconnection devices for reliable protection
Green window indicates faults and provides remote alarm control

Technical Specifications

Parameter	Value
Max. continuous operating a.c. voltage (Uc)	275V
Nominal discharge current (8/20μs) (In)	20kA
Maximum discharge current (8/20μs) (Imax)	40kA
Voltage protection level (Up)	≤1.3kV
Response time (tA)	≤25ns
Max. backup fuse	125A
Operating temperature range (Tu)	-40℃ to +80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0
Test standards	IEC 61643-11, EN 61643-11

Product Dimensions

Available Options

Maximum discharge current: 20kA, 40kA, 80kA, 100kA, 120kA, 200kA
Number of poles: 1P, 1P+N, 2P, 3P, 3P+N, 4P
Maximum continuous operating voltage Uc: 150V, 275V, 320V, 385V, 440V, 550V, 800V, 1000V

Our Product Range

Type 1 surge protection device
Type 2 surge protection device
Type 1 + Type 2 surge protection device
Type 3 surge protection device
Type 2 + Type 3 surge protection device
DC (PV, solar) surge protection device

Applications

Surge protectors are used to guard sensitive equipment from voltage spikes and transient overvoltages in electrical systems.

Certifications

CB, CE, TUV, RoHS Certified

Company Information

Wenzhou Britec Electric Co., Ltd. established in 2003 and located in Yueqing, Zhejiang, China. Our company specializes in research and development of surge protection devices. We have 18 years of experience in the research & development and production of surge protection field and provide 5 years warranty.

Production Line

Laboratory Equipment

Shipping

Frequently Asked Questions

Q1: How to select the right surge protector?

A1: The grading of surge protectors is assessed according to the IEC61024 subdivision lightning protection theory, installed at the junction of partitions. Technical requirements and functions differ. The first-stage lightning protection device is installed between the 0-1 zone with high flow requirement (minimum 25kA 10/350), while second and third levels are installed between 1-2 and 2-3 zones, mainly to suppress overvoltage.

Q2: Are you a manufacturer or trading company?

A2: We are a lightning surge protectors manufacturer.

Q3: What is your warranty and service policy?

A3: 1. Warranty 5 years
2. Products and accessories are tested 3 times before shipment
3. We provide comprehensive after-sale service support

Q4: How can I get samples?

A4: Samples are available - please contact our staff with your detailed contact information. We maintain strict confidentiality of your information.

Q5: Are samples free?

A5: Samples are available but require payment. The sample cost will be refunded after further orders.

Q6: Do you accept customized orders?

A6: Yes, we accept customized orders according to your specific requirements.
