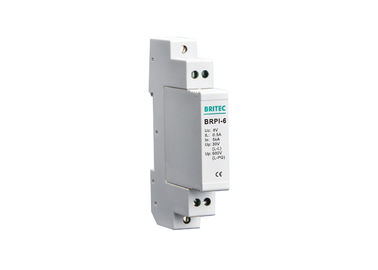

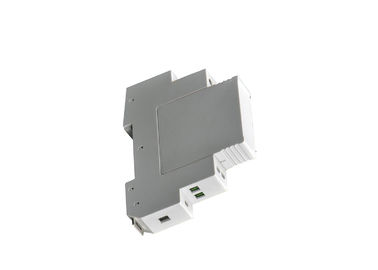

Compact BRPI Series Data Surge Protector Devices SPD For Data Applications

Compact BRPI Series Data Surge Protector Devices SPD For Data Applications
Compact BRPI Series Data Surge Protector Devices SPD For Data Applications Compact BRPI Series Data Surge Protector Devices SPD For Data Applications

Large Image :  Compact BRPI Series Data Surge Protector Devices SPD For Data Applications

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BRPI-2L-6
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now

Compact BRPI Series Data Surge Protector Devices SPD For Data Applications

Description
Place Of Origin: Zhejiang, China (Mainland) Material: Thermal Plastic
Model Number: BRPI-2L-6 Item Name: SPD For Data
Un: 6V Modular: 1 Modular
Tu: -40℃-80℃ IL: 0.5A
Standard: IEC61643-21 In: 5kA
Highlight:

data line surge protector

,

data center surge protection



BRPI Series Surge Protective Devices (SPD) for Data Applications



Compact BRPI Series Data Surge Protector Devices SPD Characteristic:



• Nominal voltage: 6V.
• Nominal current: 0.5A.
• It offers 8/20us per-line 5kA protection.
• The bandwidth can be 10Mbps and insertion loss ≤0.3dB.
• Plug-in modules, easy to replace the product during maintainace.
• Provide complete system protection.
• Conform to IEC61643-21.

Compact BRPI Series Data Surge Protector Devices SPD Product detail:

  BRPI-2L-6
Test standards IEC 61643-11
Nominal voltage                                                           Un 6V
Max. continuous operating d.c. voltage                       Uc 8V
Max. continuous operating a.c. voltage                       Uc 5V
Nominal current                                                             IL 0.5A
C2 Nominal discharge current (8/20us) per line            In 5kA
Voltage protection level [line-line]                                Up ≤30V
Voltage protection level [line-PG]                                Up ≤600V
Response time [line-line]                                              tA ≤1ns
Response time [line-PG]                                               tA ≤100ns
Operating temperature range                                       Tu -40℃…+80℃
Connection input/output Terminal Block
Bandwidth 10 Mbps
Insertion loss ≤0.3dB
Enclosure material                   Thermal plastic UL94-V0
Degree of protection IP20



Dimension:


Compact BRPI Series Data Surge Protector Devices SPD For Data Applications 0

Compact BRPI Series Data Surge Protector Devices SPD Application:

• Protect equipment connected to data lines.
• Protection against lightning and electrical switching surges.

Compact BRPI Series Data Surge Protector Devices SPD Advantage:

• High reliability.
• Minimal system interference.
• Easy application.
• Compact designs.


Company informtaion:


Wenzhou Britec Electric Co.,Ltd was a manufacturer in china, established in 2003, specialized in research, manufacture and sales of SPDs. Most products are exported to worldwide: Europe, South America, Southeast Asia etc. We have enjoyed much good reputation and many partners. OEM/ODM are welcome!



Compact BRPI Series Data Surge Protector Devices SPD For Data Applications 1



Certification:


Compact BRPI Series Data Surge Protector Devices SPD For Data Applications 2

Packaging & Shipping:

• Professional packing suitable for long way transportation by sea, air, land.
• We often ship the goods for small quantity by specialized express company like DHL, UPS, EMS, FedEx and TNT; it's a door to door service and fast to deliver the goods to you.

Compact BRPI Series Data Surge Protector Devices SPD For Data Applications 3


Payment Terms:



T/T, Paypal are available.



Compact BRPI Series Data Surge Protector Devices SPD For Data Applications 4

FAQ:



Q1. How is your quality?
  A: Quality is the life of us! We use only the best quality (original) components to ensure the standard of our product range is of the highest quality. All product has 2 years warranty. All products we sold out are strictly selected and tested by our QC Department.



Q2: Do you provide warranty for the goods?
  A: Yes, our products are guaranteed for two years.

Q3: Could you provide technology support?
  A: We're in this field many year. If there's any problem, please contact with us, we'll provide suggestion from our engineer to help you solve problem.


Q4: What is the packing material?
  A: Usually packed in cartons.





Tag:

data line surge protector,

ac data surge protection,

data center surge protection
