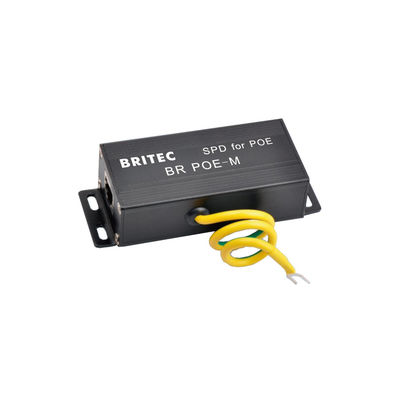

BR-POE-M Ethernet PoE Surge Protector

24V Data Surge Protector

Certification

I'm Online Chat Now

48V POE Surge Protector with 3kA Nominal Discharge Current and IP20 Protection for Ethernet Data Networks

Large Image : 48V POE Surge Protector with 3kA Nominal Discharge Current and IP20 Protection for Ethernet Data Networks

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	ISO9001/ISO14001/ISO45001
Model Number:	BR-POE-P
Document:	BR-POE.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Packaging Details:	carton
Delivery Time:	15 days after receipt of deposit
Payment Terms:	TT
Supply Ability:	1000000 per month

Contact Now

48V POE Surge Protector with 3kA Nominal Discharge Current and IP20 Protection for Ethernet Data Networks

Description

Product Name:	Poe Ethernet Surge Protector	Weight:	100g
Nominal Current:	1A	Norminal Voltage:	48V
Operating Temperature Range:	-40℃…+80℃	C2 Nominal Discharge Current (8/20μs) Line-PG Current (8/20μs) Line-PG:	3kA
Enclosure Material:	Thermoplastic UL94-V0	Degree Of Protection:	IP20
Highlight:	BR-POE-P , 48v Poe Ethernet Surge Protector , Data Surge Protector Cat6

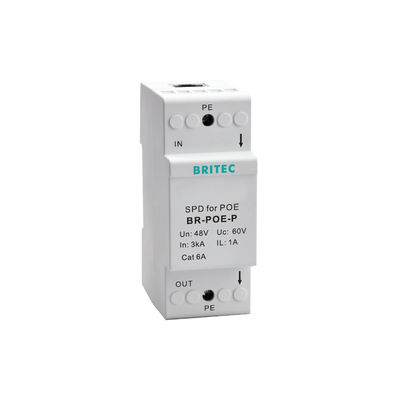

BR-POE-P Signal Surge Arrestor - POE Ethernet Data Surge Protector

Product Overview

The BR-POE-P Data Surge Protector provides robust surge protection for both data signals and power over Ethernet networks. Designed to safeguard your critical equipment from electrical disturbances including lightning strikes and power surges, this device ensures maximum protection for your network infrastructure.

Key Features

Signal surge arrestor for data line protection
Power surge protector for equipment safety
Superior transient voltage suppression
IP20 degree of protection
Lightweight design at 100g
Polyamide PA 6.6 enclosure material
Comprehensive surge protection network

Technical Specifications

Parameter	Value
Nominal voltage	48V
Weight	100g
Enclosure material	Thermoplastic UL94-V0
Operating temperature range	-40℃ to +80℃
Nominal current	1A
C2 Nominal discharge current (8/20μs)	3kA
Degree of protection	IP20

Applications

The BR-POE-P POE Ethernet surge protector is ideal for protecting data and network systems from surge damage. It provides reliable protection for data and signal transmission in various industrial and commercial applications, ensuring network stability and equipment safety.

Product Customization & Ordering

Brand Name: BRITEC

Model Number: BR-POE-P

Place of Origin: China

Certification: ISO9001

Minimum Order Quantity: 1PCS

Packaging Details: Carton

Delivery Time: 15 days after receipt of deposit

Payment Terms: TT

Supply Ability: 1,000,000 per month

Technical Support & Services

Our technical support team provides comprehensive assistance including product installation guidance, troubleshooting, and maintenance support. We offer multiple contact channels including email, phone, and chat, with 24/7 customer service availability to ensure your data protection needs are met.

Product Gallery
