|Place of Origin:||China|
|Minimum Order Quantity:||1PCS|
|Delivery Time:||15 days after receipt of deposit|
|Supply Ability:||1000000 per month|
|Product Name:||Data Surge Protector||Norminal Voltage:||5V|
|Operating Temperature Range:||-40℃…+80℃||Enclosure Material:||Aluminium Alloy|
|C2 Nominal Discharge Current (8/20μs) Line-PG:||5kA||Weight:||0.5kg|
|For Mounting On:||BNC Socket||Degree Of Protection:||IP20|

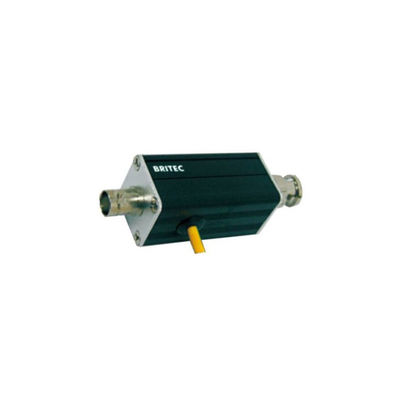

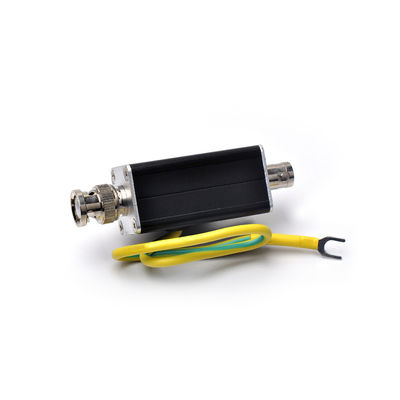

BR-BNC 5V Data Surge Protector,
Signal data Surge Arrestor,
5kA Data Surge Protector
|Test standards||IEC 61643-21|
|Max. continuous operating d.c. voltage||Uc||6V|
|Max. continuous operating a.c. voltage||Uc||4V|
|C2 Norminal discharge current (8/20μs) line-shield||In||5kA|
|C2 Norminal discharge current (8/20μs) shield-PG||In||10kA|
|Voltage protection level [line-shield]||Up||≤30V|
|Voltage protection level [shield-PG]||Up||≤500V|
|Response time [line-shield]||tA||≤1ns|
|Response time [shield-PG]||tA||≤100ns|
|Operating temperature range||Tu||-40℃-80℃|
|Connection input/output||BNC socket|
|Enclosure material||aluminium alloy|
|Degree of protection||IP20|
High discharge capacity.
Protection for all lines.
Quantity discount is available.
Perfect transmission performance.
Small size, Easy installation and replacement.
Residual voltage is low, excellent transmission performance.
Grounding point after a special process to avoid signal interference.
It can be used for single BNC terminal, F terminal and N terminal lightning protection.
Security engineering signal port.
Fire engineering signal port.
Test signal line.
Industrial control signal.
BNC connector of monitoring system.
Lightning protection of other video line signal equipment.
Designed to protect coaxial lines.
Compact SPD with BNC interface for protecting coaxial system.
Data Surge Protector, made by BRITEC, model BR-BNC, is a reliable device for surge protection network. With TUV/CB/CE/ROHS/ISO9001 certification and made from aluminum alloy, this data signal protector provides optimal performance in a rugged enclosure. In addition, its nominal discharge current (8/20μs) line-PG is 5kA, and its operating temperature range is -40℃…+80℃. Data Surge Protector is compact in size and lightweight, with a weight of 0.5kg. The minimum order quantity is 1PCS, and delivery is expected within 15 days after receipt of deposit. Payment is accepted by TT, and supply capacity is 1000000 per month.
Data Surge Protector is an ideal choice for protecting data signal from surge. It has outstanding characteristics such as advanced protection technology, fast response and excellent surge handling capability. With this signal surge arrestor, your data signal will be safe and secure.
Data Surge Protector
Brand Name: BRITEC
Model Number: BR-BNC
Place of Origin: China
Minimum Order Quantity: 1PCS
Packaging Details: carton
Delivery Time: 15 days after receipt of deposit
Payment Terms: TT
Supply Ability: 1000000 per month
Enclosure material: Aluminium Alloy
Norminal voltage: 5V
C2 Nominal discharge current (8/20μs) line-PG: 5kA
Degree of protection: IP20
Our Data Surge Protector is the perfect choice for your surge protection network. It is a signal surge arrestor and data signal protector that can protect your data from any unexpected surge. It is made of Aluminium Alloy which makes it lightweight and durable, with a nominal voltage of 5V and a C2 nominal discharge current of 5kA. It has a degree of protection of IP20 and comes with a minimum order quantity of 1PCS. It is certified by TUV/CB/CE/ROHS/ISO9001 and can be delivered within 15 days after receipt of deposit. We have a supply ability of 1000000 per month.
Data Surge Protector provides technical support and services to help customers maximize the value of their investments. Our team of certified professionals is available to help you with installation, maintenance, and troubleshooting of your Data Surge Protector.
Our technical support services include:
We also provide customer education and training services, including webinars and tutorials, to help customers get the most out of their Data Surge Protector.
