| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | CE |
| Model Number: | BRGI-2L-12 |
| Minimum Order Quantity: | 20 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15-30 days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 50000 Piece/Pieces per Month |
| Place Of Origin: | CN;JIA | Model Number: | BRGI-2L-12 |
|---|---|---|---|
| Item Name: | Data/Signal Line Protection | Low Loss: | 0.3 DB |
| Temperature Range: | -55℃~155℃ | Function: | Lighting Protection |
| Relative Humidity: | ≤95％ | Packing Unit: | 1 Pc |
| High Light: | OEM Signal Surge Protector,0.3dB Signal Surge Protector,OEM Signal Surge Device |
||

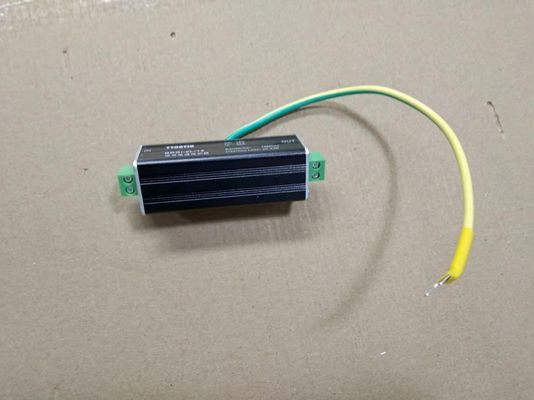

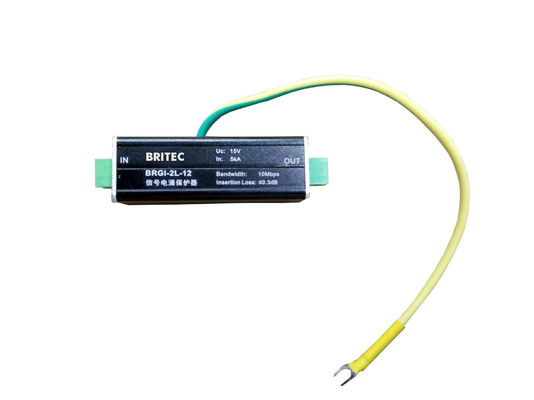

Data Line 1-Port Data Surge Protector
BRITEC is a real AC&DC surge protection device (SPD) manufacturer, also provide OEM/ODM service. some of the products approved by TUV, CB, CE, EAC according to IEC 61643-11:2011 and EN 61643-11:2012.
network surge protective device includes 100M
ethernet network lightning arrester and Gigabit ethernet network
lightning arrester.It is suitable for lightning surge or electrostatic protection of network switches,network cameras and other important equipment transmitted by wired network.
SPD Shipping:
1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Product features
Product Details:
| BRGI-2L-12 | |
| Test standards | IEC 61643-21 |
| Nominal voltage Un | 12V |
| Max. continuous operating d.c. voltage Uc | 15V |
| Max. continuous operating a.c. voltage Uc | 11V |
| Nominal current IL | 0.5A |
| C2 Nominal discharge current (8/20us) per line In | 5kA |
| Voltage protection level [line-line] Up | ≤40V |
| Voltage protection level [line-PG] Up | ≤600V |
| Response time [line-line] tA | ≤1ns |
| Response time [line-PG] tA | ≤100ns |
| Operating temperature range Tu | -40℃…+80℃ |
| Connection input / output | Terminal Block |
| Bandwidth | 10 Mbps |
| Insertion Loss | ≤0.3dB |
| Enclosure material | aluminium alloy |
| Degree of protection | IP20 |
Technology characteristic:
FAQ:
Q1. Are you a trading company or manufacturer?
A: Manufacturer with factory!
Q2. What kinds of products do you produce?
A: It covers AC surge protection, DC lightning protection, data surge protector, LED lightning
arrester,etc.
Q3.Is customized available?
A: Yes, please offer your required specs.
Q4. Do you accept OEM service?
A: YES!
Q5. What's your Delivery Time?
A: Normally 15-30days
Contact Person: Lucky Zhu
Tel: +8615888436909
