12V Network Surge Protective Device with Aluminium Alloy Enclosure and Fast Response Time for Data Line Protection

Large Image : 12V Network Surge Protective Device with Aluminium Alloy Enclosure and Fast Response Time for Data Line Protection

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BRGI-2L-12

Payment & Shipping Terms:

Minimum Order Quantity:	20 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 Piece/Pieces per Month

Contact Now

12V Network Surge Protective Device with Aluminium Alloy Enclosure and Fast Response Time for Data Line Protection

Description

Place Of Origin:	CN;JIA	Model Number:	BRGI-2L-12
Item Name:	Data/Signal Line Protection	Low Loss:	0.3 DB
Temperature Range:	-55℃~155℃	Function:	Lighting Protection
Relative Humidity:	≤95％	Packing Unit:	1 Pc
Highlight:	OEM Signal Surge Protector , 0.3dB Signal Surge Protector , OEM Signal Surge Device

BRGI-2L-12 Network Surge Protective Device Signal Surge Protector

Product Overview

BRITEC is a professional AC & DC surge protection device (SPD) manufacturer offering OEM/ODM services. Our products are approved by TUV, CB, CE, EAC according to IEC 61643-11:2011 and EN 61643-11:2012 standards.

This network surge protective device includes 100M Ethernet network lightning arrester and Gigabit Ethernet network lightning arrester. It is suitable for lightning surge or electrostatic protection of network switches, network cameras, and other important equipment transmitted by wired network.

Shipping Information

Shipment port: SHANGHAI/NINGBO
By Air or by Sea for batch goods, Airport/Port receiving
Customers specifying freight forwarders or negotiable shipping methods

Product Features

Core components adopt famous brands with reliable quality
Residual low voltage
Simple installation and convenient maintenance

Technical Specifications

Test standards	IEC 61643-21
Nominal voltage Un	12V
Max. continuous operating d.c. voltage Uc	15V
Max. continuous operating a.c. voltage Uc	11V
Nominal current IL	0.5A
C2 Nominal discharge current (8/20us) per line In	5kA
Voltage protection level [line-line] Up	≤40V
Voltage protection level [line-PG] Up	≤600V
Response time [line-line] tA	≤1ns
Response time [line-PG] tA	≤100ns
Operating temperature range Tu	-40℃…+80℃
Connection input / output	Terminal Block
Bandwidth	10 Mbps
Insertion Loss	≤0.3dB
Enclosure material	Aluminium alloy
Degree of protection	IP20

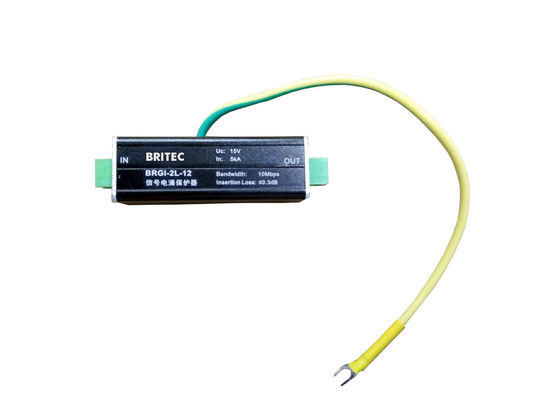

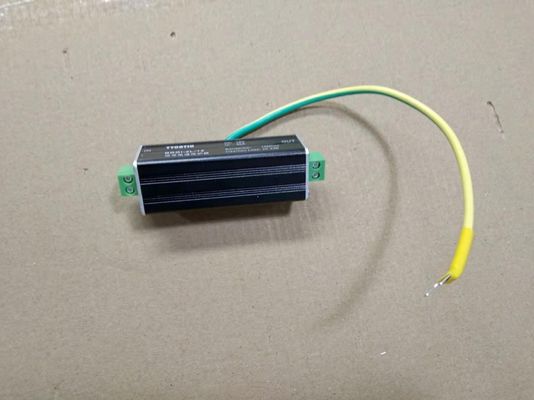

Product Images

Applications

Protect expensive equipment against surges and transients entering a building on exposed transmission lines
Protect electrical devices from voltage spikes
Protect high-speed communication network from lightning over-voltage, transient over-voltage and static discharge

Advantages

Fast energy absorption when over-voltage occurs
Advanced manufacturing process
Excellent performance on discharge current
Fast response time
Professional manufacturer

Factory Overview

Certifications

Frequently Asked Questions

Q1. Are you a trading company or manufacturer?

A: Manufacturer with factory!

Q2. What kinds of products do you produce?

A: It covers AC surge protection, DC lightning protection, data surge protector, LED lightning arrester, etc.

Q3. Is customized available?

A: Yes, please offer your required specs.

Q4. Do you accept OEM service?

A: YES!

Q5. What's your Delivery Time?

A: Normally 15-30 days
