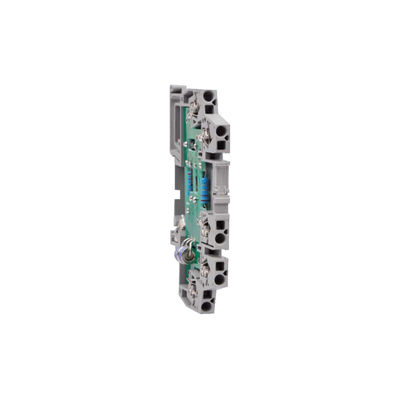

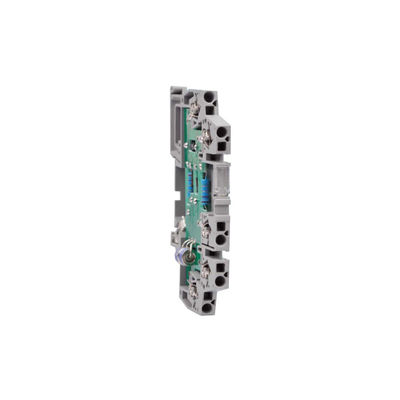

Slim Din Rail Mounted Data Surge Protector SPDs For 2 Lines Sharing A Common Reference

Slim Din Rail Mounted Data Surge Protector SPDs For 2 Lines Sharing A Common Reference

  • Slim Din Rail Mounted Data Surge Protector SPDs For 2 Lines Sharing A Common Reference
  • Slim Din Rail Mounted Data Surge Protector SPDs For 2 Lines Sharing A Common Reference
Slim Din Rail Mounted Data Surge Protector SPDs For 2 Lines Sharing A Common Reference
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-MD-12
Payment & Shipping Terms:
Minimum Order Quantity: 20 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Place Of Origin: CN;JIA Type: TYPE2
Model Number: BR-MD-12 Item Name: Data Surge Protector
Nominal Current At 45℃: 0.5A Cross Section Of Cable: 0.08—2.5mm2
Degree Of Protection: IP20 Temp.range: -55℃-80℃
High Light:

Din Rail Mounted Data Surge Protector

,

Slim SPDs Data Surge Protector

,

IP20 0.5A Data Surge Protector



Terminal-type Arrester 12V Surge Protection For Data Interfaces



Features:

Total nominal discharge current (8/20us) up to 10kA.
Test Standards for communication line surge protectors comply with IEC 61643-21: Tests of Surge Protectors for Communication Lines.
Data surge protection provides a complete solution to avoid damage, downtime and power outages.



Advantage:

Compact Size.

High capacity.

Wide operating temperature.



Why need data surge protector?

Telecommunication and data transmission devices are increasingly more vulnerable to lightning induced voltage surges. They have become more sensitive, complex and have an increased vulnerability to induced surges due to their possible connection across several different networks. These devices are critical to a company’s communications and information processing. As such, it is prudent to insure them against these potentially costly and disruptive events. A data line surge protector installed in-line, directly in front of a sensitive piece of equipment will increase their useful life and maintain the continuity of the flow of your information.



Product Details:



  BR-MD-12
Test standards IEC 61643-21
SPD class TYPE2 P1
Nominal voltage                                                                     Un 12V
Max. continuous operating d.c. voltage                                 Uc 14V
Max. continuous operating a.c. voltage                                 Uc 9.5V
Nominal current at 45℃                                                          IL 0.5A
C2 Total nominal discharge current (8/20us)                          In 10kA
C2 Nominal discharge current (8/20us) per line                     In 5kA
Voltage protection level line-line for ln C2                             Up ≤25V
Voltage protection level line-PG for ln C2                              Up ≤750V
Voltage protection level line-line at 1 kV / us C3                   Up ≤19V
Voltage protection level line-PG at 1 kV / us C3                    Up ≤650V
Sereies impedance per line 1.8 Ohm
Cut-off frequency line-PG                                                       fG 2.5 MHz
Capacitance line-line                                                               C ≤2.4nF
Capacitance line-PG                                                               C ≤5pF
Operating temperature range                                                 Tu -40℃…+80℃
Cross section of cable 0.08—2.5mm2
Enclosure material                    polyamide PA 6.6
Degree of protection IP20



Technology characteristic:



Slim Din Rail Mounted Data Surge Protector SPDs For 2 Lines Sharing A Common Reference 0



Application:

• Protects network components against transients, surges, and spikes that are often introduced into low
  voltage systems.
• Protect all susceptible low-voltage routes like cable, telephone/data lines from surges, spikes, and
  transients.
• Protect the low voltage lines to block transients from entering into your system.

Why need data surge protection?

• When a power surge happens it is unexpected and almost instantaneous, and the damage that will
  occur if your equipment is unprotected is not something that can be reversed. Even worse than the
  loss of the equipment itself may be the data that was being stored on or within the device that was
  damaged. This can cause extreme difficulties for most people, and even bigger difficulties for
  companies that rely upon data just to function. This is why the data surge protection is needed.

Certifications:

Slim Din Rail Mounted Data Surge Protector SPDs For 2 Lines Sharing A Common Reference 1

Our company:

Estbilsed in 2003, Britec Electric Wenzhou CO.,Ltd. is located in Yueqing, Zhejiang, China, near
Shanghai port and Ningbo port of China. We have plenty of export experience. Our products have
been deliveried to more than 50 contries and areas, including Brazil, Argentina, Russia, Genmery,
Spain, UK, France, Philippines, Malaysia and so on.

Slim Din Rail Mounted Data Surge Protector SPDs For 2 Lines Sharing A Common Reference 2

Slim Din Rail Mounted Data Surge Protector SPDs For 2 Lines Sharing A Common Reference 3

Shipping:


We have strong cooperation with DHL, TNT, UPS, FedEx and EMS. You also can choose your own

shipping forwarder.



Slim Din Rail Mounted Data Surge Protector SPDs For 2 Lines Sharing A Common Reference 4



Factory photos:



Slim Din Rail Mounted Data Surge Protector SPDs For 2 Lines Sharing A Common Reference 5



FAQ:


Q1: I’m so interested in your SPD products, how to contact with you?
A1: You can contact us online or check our website to send e-mail.

Q2: Where can download catalogues of your surge arrester production?
A2: You can download our catalogues on our website, or we can send it to you by email.

Q3: Your lightning protection products are so impressive. How can I become your distributor?
A3: We are so happy and welcome you to be our distributor, and looking forward to your long term

      cooperation. Please self-introduce your company or business information, and your detailed plan to

      contact with us online or check our website and send by e-mail.
