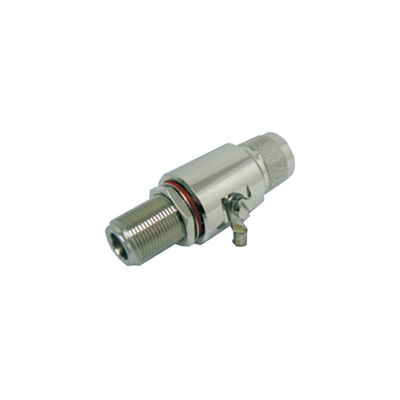

Brass Plated Nickel RF Lightning Arrester Data Surge Protector Lightning Surge

Brass Plated Nickel RF Lightning Arrester Data Surge Protector Lightning Surge

  • Brass Plated Nickel RF Lightning Arrester Data Surge Protector Lightning Surge
  • Brass Plated Nickel RF Lightning Arrester Data Surge Protector Lightning Surge
  • Brass Plated Nickel RF Lightning Arrester Data Surge Protector Lightning Surge
  • Brass Plated Nickel RF Lightning Arrester Data Surge Protector Lightning Surge
Brass Plated Nickel RF Lightning Arrester Data Surge Protector Lightning Surge
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-N
Payment & Shipping Terms:
Minimum Order Quantity: 10 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Plating: Nickel/gold Material Body: Brass Plated Nickel
Connector Type: N MOQ: 11PCS
Body Structure: Straight Mounting Type: Solder With RG Cable
Low Loss: <0.3 DB Connector Types: N-Male To N-Female
Place Of Origin: CN Impedance: 50Ω
High Light:

RF Lightning Arrester

,

Data Surge Protector Lightning Arrester

,

Brass plated nickel RF Arrester


N Type Coaxial Lightning Arrestor Surge Protector data transmission device

N Type Coaxial Lightning Arrestor  Feature:


They are used for many radio frequency applications including broadcast and communication equipment.
We provide Standard rf connectors as well as accept OEM custom designs of rf connectors.
Welcome to send us your inquiry with your drawing or spec needed.


It can realize high efficiency of discharging lightning surge current and anti-lightning function.

Radio transmission and receiving equipment.

Designed for antenna coaxial device and receive/transmit system not to be spoiled by lightning over-voltage.


· N coax lightning surge arrestor male to female should be installed close to the equipment which need to be protected, often at the point where the coax cable enters the building. It can also be installed near the antenna for additional protection

The BR-N is a high bandwith protector used to protect many 50 Ohm based coaxial systems up to 780 Watts power. Typical applications are broadband systems, two-way radios, cellular systems, wireless LAN, coaxial cables, and amateur radio equipment. The BR-N uses a rugged gas discharge tube which bypasses the surge to ground thus protecting downstream equipment. Installs in minutes indoors or outdoors, uses type N connectors.


N Type Coaxial Lightning Arrestor Details:
Brass Plated Nickel RF Lightning Arrester Data Surge Protector Lightning Surge 0


  BR-N
Test standards IEC 61643-21
Max.continuous operating d.c.voltage                                          Uc 180V
Max.continuous operating a.c.voltage                                          Uc 130V
Nominal current IL                                                                         IL 20A
C2 Nominal discharge current (8/20us) line-shield/PG                  In 10kA
Voltage protection level [line-shield/PG]                                      Up   ≤800V
Response time [line-shield/PG]                                                     tA   ≤100ns
Operating temperature range                                                      Tu -40℃…+80℃
Connection input/output N socket
Bandwidth 3Gbps
Insertion loss ≤0.3dB
Impedience 50Ω
Enclosure material                         Steel
Degree of protection IP20
Order Code D9023


Dimension:

Brass Plated Nickel RF Lightning Arrester Data Surge Protector Lightning Surge 1

N Type Coaxial Lightning Arrestor  Application:


• It can be used for the lightning surge protection of monitoring system's video line with BNC connector, BNC Matrix Connector, Optical Transmitter and Receiver BNC connector, Video Camera BNC connector.
• It can realize high efficiency of discharging lightning surge current and anti lightning function
• It is suitable for lightning protection of wireless communication antenna feeder, such as Satellite Antenna/Microwave/CATV/Short Wave/Ultra Short Wave/ Mobile Communication Equipment etc.
• Radio transmission and receiving equipment.
• Designed for antenna coaxial device and receive/transmit system not to be spoiled by lightning over-voltage.


N Socket Coaxial Surge Protector Advantage:


• High discharge capacity, low residual voltage
• Multi grade protection
• Large flow current
• Low insertion loss
• Great transmission performance
• Quick respond
• Easy installation and connection
• High frequency transmission


Our Services:


• Professional manufacturer, 17 years global leading profession manufacture of electrical products surge arrester.
• Prompt response: Any inquiries will be replied within 24 hours
• OEM/ODM available
• Standard packaging, and you can also tell us your own requirements on packaging
• All products in accordance with the IEC IEEE the international standard.
• Faster delivery
• Individually Tested Prior to Shipment


N Socket Coaxial Surge Protector Installation:


• N Surge protector should be installed as close a possible to the equipment to be protected, often at the point where the coax cable enters the building.
• A grounding stud is provided which should be connected to the system ground or coaxial feed-through bulkhead, as directly as possible.


Company profile:

Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.

Brass Plated Nickel RF Lightning Arrester Data Surge Protector Lightning Surge 2

Brass Plated Nickel RF Lightning Arrester Data Surge Protector Lightning Surge 3

Brass Plated Nickel RF Lightning Arrester Data Surge Protector Lightning Surge 4

Brass Plated Nickel RF Lightning Arrester Data Surge Protector Lightning Surge 5

FAQ:

Q1: Are you factory or trading company?
  A: We are professional SPD factory, ISO9001 certified, we have our own mould, R&D, engineer, production, and QC department. Our products have very competitive advantage in price, quality, and lead time.

Q2: How about the pay term?
  A: T/T, Paypal etc.

Q3: How about the shipping period?
  A: Mass production time is 20 days (depend on your order quantities). Shipping by express is about 7 working days.

Q4: What certifications do you have?
  A: We have approved ISO9001, CE, CB, TUV etc.

Q5. Can I add my logo on the products?
  A: Yes, OEM and ODM are available for us.
