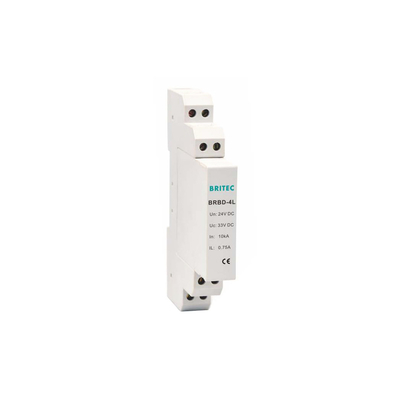

Pluggable Data Surge Protector IP20 Din Rail Transmission Device network surge protective device

Pluggable Data Surge Protector IP20 Din Rail Transmission Device network surge protective device
Pluggable Data Surge Protector IP20 Din Rail Transmission Device network surge protective device Pluggable Data Surge Protector IP20 Din Rail Transmission Device network surge protective device Pluggable Data Surge Protector IP20 Din Rail Transmission Device network surge protective device Pluggable Data Surge Protector IP20 Din Rail Transmission Device network surge protective device

Large Image :  Pluggable Data Surge Protector IP20 Din Rail Transmission Device network surge protective device

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BRBD-4L-24
Payment & Shipping Terms:
Minimum Order Quantity: 20 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now

Pluggable Data Surge Protector IP20 Din Rail Transmission Device network surge protective device

Description
Place Of Origin: Zhejiang, China (Mainland) IP Degred: IP20
Model Number: BRBD-4L-24 Item Name: Data Transmission Device
Shipping Term: Sea/Air Shipping Certificate: CE,CB,IEC Etc
Delivery Time: 15days Warranty: 2 Year
Capacitance Line-PG: ≤16pF Enclosure Material: Polyamide PA 6.6
Highlight:

Pluggable Data Surge Protector

,

Transmission Device IP20 Data Surge Protector

,

Data Surge Protector Din Rail Mounted



Signal Surge Protective Devices Power Line SPDs for Data Transmission



Our Product
Type 1 surge protection device.

Type 2 surge protection device.

Type 1 + Type 2 surge protection device.

Type 3 surge protection device.

Type 2 + Type 3 surge protection device.

DC (pv, solar) surge protection device.

LED surge protection device.

Data surge protection device.



Product detail:

Pluggable Data Surge Protector IP20 Din Rail Transmission Device network surge protective device 0



  BRBD-4L-24
Test standards IEC 61643-21
SPD class TYPE2 P1
Nominal voltage                                                             Un 24V
Max. continuous operating d.c. voltage                         Uc 33V
Max. continuous operating a.c. voltage                         Uc 23.3V
Nominal current at 45℃                                                  IL 1A
C2 Total nominal discharge current (8/20us)                  In 20kA
C2 Nominal discharge current (8/20us) per line             In 10kA
Voltage protection level line-line for ln C2                     Up ≤55V
Voltage protection level line-PG for ln C2                      Up ≤600V
Voltage protection level line-line at 1 kV / us C3           Up ≤45V
Voltage protection level line-PG at 1 kV / us C3            Up ≤550V
Sereies impedance per line 1 Ohm
Cut-off frequency line-PG                                               fG 7.8 MHz
Capacitance line-line                                                       C ≤1.0nF
Capacitance line-PG                                                       C ≤16pF
Operating temperature range                                         Tu -40℃…+80℃
Enclosure material                        polyamide PA 6.6
Degree of protection (plugged-in) IP20

Dimension:

Pluggable Data Surge Protector IP20 Din Rail Transmission Device network surge protective device 1


Our Services:

Sample service: sample offered.

Fast & cost -effective shipping.

Fast lead time.

Best after-sale service.



Application:

• Protection against indirect lightning effects.
• Protect equipment with high-speed signal.
• For the protection of network equipment.
• Protect low frequency signalling application.
• It protects AC power supply of sensitive data equipment against lightning induced surges.

Certification:

Pluggable Data Surge Protector IP20 Din Rail Transmission Device network surge protective device 2

Shipping:

By sea, By air, By express etc.

Pluggable Data Surge Protector IP20 Din Rail Transmission Device network surge protective device 3

Company Introduction:

Britec Electric Wenzhou Co., Ltd. is specialized in the production of lightning protection. 17 years’
experience, ISO, TUV & CE certificated, three-hours reach Ningbo port, this is how we keep
superior quality and competitive offers for global valued customers. Our main products cover AC
surge arrester, DC surge protection, data surge protector, lightning protective device, etc.

Pluggable Data Surge Protector IP20 Din Rail Transmission Device network surge protective device 4

Pluggable Data Surge Protector IP20 Din Rail Transmission Device network surge protective device 5

Test:

Pluggable Data Surge Protector IP20 Din Rail Transmission Device network surge protective device 6

FAQ:

Q1. English version is available?
  A: Yes.

Q2. What is the lead time for delivery?
  A: 15-30 workdays according to your quantity.

Q3. Do you have any MOQ limit?
  A: 100pcs.

Q4. What express do you often use?
  A: TNT, DHL, UPS, FedEx, etc. Any method you can choose!

Q5. What's your acceptable payment term?
  A: Our usually payment term is T/T.
