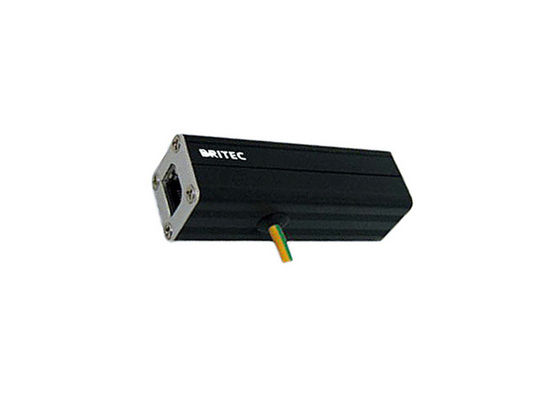

RJ45 Data Surge Protector Ethernet Signal OEM 6V Aluminium Alloy

RJ45 Data Surge Protector Ethernet Signal OEM 6V Aluminium Alloy

  • RJ45 Data Surge Protector Ethernet Signal OEM 6V Aluminium Alloy
  • RJ45 Data Surge Protector Ethernet Signal OEM 6V Aluminium Alloy
RJ45 Data Surge Protector Ethernet Signal OEM 6V Aluminium Alloy
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BRRJ45L-4L
Payment & Shipping Terms:
Minimum Order Quantity: 200 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Bandwidth: 30 Mbps Protection Level At In (8/20μs): 30V
Material: Aluminium Alloy Type: RJ45
Item Name: Ethernet Surge Protector Tu: -40℃-80℃
Un: 5V IL: 0.5A
In: 5kA Connection: RJ45 Socket
High Light:

6V Aluminium Alloy Surge Protector

,

RJ45 Data Surge Protector

,

Ethernet Signal Surge Protection Device

RJ45 surge protector Ethernet Signal Surge Protection OEM/ODM 6V



RJ45 surge protector Ethernet Signal Surge Protection Product description:

Specially designed to protect network devices.
Used to prevent indirect lightning or direct lightning impact and network over-voltage damage to signal equipment.
Surge protective devices use RJ45 interface.
BR-RJ45 series signal surge protector (hereinafter referred to as SPD) is suitable for computer networks (Ethernet, LAN, token ring), servers, routers, Hub, broadband.
Designed according to IEC 61643-21


RJ45 surge protector Ethernet Signal Surge Protection Product Details:



  BRRJ45L-4L
Test standards IEC61643-21
Nominal voltage                                                           Un 5V
Max.continuous operating d.c.voltage                         Uc 6V
Max.continuous operating a.c.voltage                         Uc 4V
Nominal current                                                             IL 0.5A
C2 Nominal discharge current (8/20us) per line            In 5kA
Voltage protection level [line-line]                                Up ≤30V
Voltage protection level [line-PG]                                 Up ≤500V
Response time [line-line]                                               tA ≤1ns
Response time [line-PG]                                               tA ≤100ns
Operating temperature range                                       Tu -40℃…+80℃
Connection (input/output) RJ45 socket
Bandwidth             30 Mbps / 100 Mbps / 300 Mbps
Insertion Loss ≤0.3dB
Enclosure material aluminium alloy
Degree of protection IP20



Dimension:



RJ45 Data Surge Protector Ethernet Signal OEM 6V Aluminium Alloy 0



RJ45 surge protector Ethernet Signal Surge Protection Main character:

1. For protecting network devices.
2. BR-RJ45 SPDs are specially designed to avoid failures in data transfer between equipment inside the same network.
3. Good discharge capacity, low voltage protection level
4. It protects the input of the electronic circuits of the network cards against harms due to transient currents.
5. Quick response, high transmission speed, low signal attenuation
6. BR-RJ45 is a protector with RJ45 input and output connectors, with a withstanding current up to 5kA for line.
7. Metallic housing RJ45 connection, easy for installation
8. It’s designed to protect equipment connected to the computers network.
9. Optional with DIN rail installation

RJ45 surge protector Ethernet Signal Surge Protection Installation:

• It should be properly grounded to work. The Ethernet ground wire (11 Inch - 12 AWG) on the surge protector needs to be connected to ground through the shortest path.
• The Line-to-Line Ethernet surge protection mode helps protect against short circuits between different nodes of the network system while the Line-to-Ground mode protects against short circuits between the network node and the earth.
