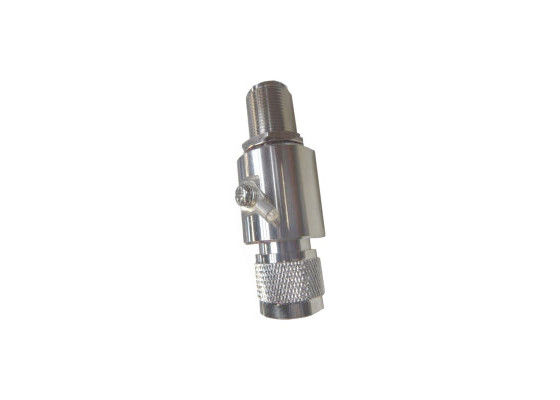

50Ohm Coaxial Lightning Arrester 3Gbps Antenna Type With Gas Tube

50Ohm Coaxial Lightning Arrester 3Gbps Antenna Type With Gas Tube

  • 50Ohm Coaxial Lightning Arrester 3Gbps Antenna Type With Gas Tube
50Ohm Coaxial Lightning Arrester 3Gbps Antenna Type With Gas Tube
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-N
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Test Standards: IEC 61643-21 Type: Antenna
Uc (DC): 180V Uc (AC): 130V
Material: Steel Connection: N Socket
Bandwidth: 3 Gbps Insertion Loss: ≤0.3dB
Impedience: 50 Ohm Manufacturer Warranty: 2 Years
High Light:

50Ohm Coaxial Lightning Arrester

,

3Gbps Coaxial Lightning Arrester

,

Antenna Type Coaxial Lightning Arrester



Coaxial Lightning Arrester Lightning Arrestor N Male to Female 50 Ohm 3 Gbps with Gas Tube



Coaxial Lightning Arrester Lightning Arrestor Features:

1. Lightning surge protector, with N type male to female Connectors 50 ohm, broad bandwidth 3 Gbps, Attenuation less than 0.3 dB.
2. Coaxial lightning suppressors should be installed between outdoor antennas and radio equipment to protect equipment, structures and personnel from high-energy electrical pulses carried through the coax cable either from a direct or nearby lightning strike.
3. Protects signal boosters from lightning strikes, requires additional ground cable.
4. Prevent lightning from damaging your wireless antenna and equipment.
5. N connector lightning arrestor, it has a Gas Discharge Element with High Surge Power Capability and Bi-directional Protection.
6. Fast response time and superior RF performance
7. Lightning protector should be installed as close as possible to the equipment to be protected, often at the point where the coax cable enters the building. They can also be installed near the antenna for additional protection



Coaxial Lightning Arrester Lightning Arrestor Product Details:



  BR-N
Test standards IEC 61643-21
Max.continuous operating d.c.voltage                                             Uc 180V
Max.continuous operating a.c.voltage                                             Uc 130V
Nominal current                                                                                IL 20A
C2 Nominal discharge current (8/20us) line-shield/PG                     In 10kA
Voltage protection level [line-shield/PG]                                          Up   ≤800V
Response time [line-shield/PG]                                                        tA   ≤100ns
Operating temperature range                                                          Tu -40℃…+80℃
Connection input/output N socket
Bandwidth 3Gbps
Insertion loss ≤0.3dB
Impedience 50Ω
Enclosure material                         Steel
Degree of protection IP20
Order Code D9023



Dimension:



50Ohm Coaxial Lightning Arrester 3Gbps Antenna Type With Gas Tube 0



Coaxial Lightning Arrester Lightning Arrestor Application:

Prevent a lightning strike from destroying your electrical system.
This protector will pass DC, so it is suitable for applications where DC is carried through the coax cable, such as remote amplifiers and LNAs.
The 50 ohm Arrester with N Male to Female Connectors can be installed to prevent expensive damage from incapacitating your circuitry.



Coaxial Lightning Arrester Lightning Arrestor Advantage:



• High discharge capacity, low residual voltage
• Multi grade protection
• Large flow current
• Low insertion loss
• Great transmission performance
• Quick respond
• Easy installation and connection
• High frequency transmission



Our Services:



• Professional manufacturer, 17 years global leading profession manufacture of electrical products surge arrester.
• Prompt response: Any inquiries will be replied within 24 hours
• OEM/ODM available
• Standard packaging, and you can also tell us your own requirements on packaging
• All products in accordance with the IEC IEEE the international standard.
• Faster delivery
• Individually Tested Prior to Shipment



Company profile:



Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.



50Ohm Coaxial Lightning Arrester 3Gbps Antenna Type With Gas Tube 1



FAQ:



Q1: Are you factory or trading company?

  A: We are professional SPD factory, ISO9001 certified, we have our own mould, R&D, engineer, production, and QC department. Our products have very competitive advantage in price, quality, and lead time.



Q2: How about the pay term?

  A: T/T, Paypal etc.



Q3: How about the shipping period?

  A: Mass production time is 20 days (depend on your order quantities). Shipping by express is about 7 working days.



Q4: What certifications do you have?

  A: We have approved ISO9001, CE, CB, TUV etc.



Q5. Can I add my logo on the products?

  A: Yes, OEM and ODM are available for us.
