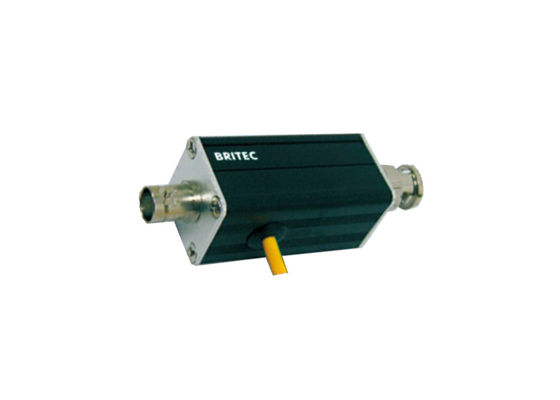

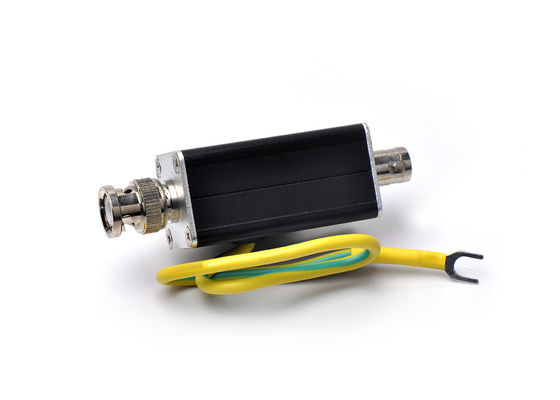

BNC Surge Protector with 5kA/10kA Nominal Discharge Current and ≤0.3dB Insertion Loss for Lightning Protection DVR

BNC Surge Protector with 5kA/10kA Nominal Discharge Current and ≤0.3dB Insertion Loss for Lightning Protection DVR
BNC Surge Protector with 5kA/10kA Nominal Discharge Current and ≤0.3dB Insertion Loss for Lightning Protection DVR BNC Surge Protector with 5kA/10kA Nominal Discharge Current and ≤0.3dB Insertion Loss for Lightning Protection DVR

Large Image :  BNC Surge Protector with 5kA/10kA Nominal Discharge Current and ≤0.3dB Insertion Loss for Lightning Protection DVR

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-BNC
Document: SPDs for coaxial.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 30 days after payment
Payment Terms: T/T
Supply Ability: 100000 pieces per month
Contact Now

BNC Surge Protector with 5kA/10kA Nominal Discharge Current and ≤0.3dB Insertion Loss for Lightning Protection DVR

Description
Information Content: Data Condition: New
Nominal Discharge Current In (8/20us): 5kA/10kA Insertion Loss: ≤0.3dB
Connector Type: BNC Dimension: 84*25*25mm
Transport Package: Carton Usage: Telephone, Computer, Workstation, Server, Mobile Phone, CCTV Systems
Support Network: Ethernet Nominal Operating Voltage Un: 5V
Highlight:

DVR bnc surge protector

,

Lightning Protection bnc surge protector

,

CCTV Signal Lightning Protector

BNC Lightning Protection DVR Surge Protector
Professional video signal surge protection device designed for CCTV camera systems and coaxial cable transmission equipment.
Key Features
  • Multi-protection circuits with low residual voltage
  • Superior transmission performance for coaxial cable video and data signals
  • Protection against induced over-voltage, over-voltage, and electrostatic discharge
  • Excellent durability and long service life in harsh environments
  • High flow capacity with fast response time
  • Convenient and easy installation
Technical Specifications
Parameter Specification
Test Standards IEC 61643-21
Nominal Voltage (Un) 5V
Max. Continuous Operating DC Voltage (Uc) 6V
Max. Continuous Operating AC Voltage (Uc) 4V
Nominal Current (IL) 0.5A
C2 Nominal Discharge Current (8/20μs) Line-Shield (In) 5kA
C2 Nominal Discharge Current (8/20μs) Shield-PG (In) 10kA
Voltage Protection Level [Line-Shield] (Up) ≤30V
Voltage Protection Level [Shield-PG] (Up) ≤500V
Response Time [Line-Shield] (tA) ≤1ns
Response Time [Shield-PG] (tA) ≤100ns
Operating Temperature Range (Tu) -40℃ to +80℃
Connection Input/Output BNC Socket
Bandwidth 10Mbps
Insertion Loss ≤0.3dB
Impedance 50Ω
Enclosure Material Aluminium Alloy
Degree of Protection IP20
Order Code D9020
Product Dimensions
BNC Surge Protector with 5kA/10kA Nominal Discharge Current and ≤0.3dB Insertion Loss for Lightning Protection DVR 0
Installation Instructions
  1. Connect in series between protected equipment and signal channels, installing close to the protected equipment
  2. Connect IN-port to signal channels and OUT-port to protected equipment
  3. Connect lead to grounding bar dependably
  4. No special maintenance needed. If malfunction occurs, remove protector and check system. If system recovers, replace the protector
Applications
  • Cable television transmission systems
  • CCTV video monitoring system equipment
  • Coaxial cable transmission lines (hard disk recorder, matrix, optical transceiver, camera)
  • Protection against permanent damage or transient interruption caused by induced overvoltage, overcurrent, and surge voltages
Quality Assurance
  • All products strictly quality checked before packing
  • Professional packaging with custom options available
  • Fast delivery service
  • Individual testing prior to shipment
IEC 61643-21 Standards
Low-voltage surge protective devices; Part 21: Surge protective devices connected to telecommunications and signalling networks; Performance requirements and testing methods. These standards define test categories for surge protective devices in telecommunications and signalling networks.
Manufacturer Information
Wenzhou Britec Electric Co., Ltd. specializes in manufacturing and exporting SPDs including AC surge protectors, DC surge protection, LED lighting surge arresters, and data surge protective devices. Located in Yueqing, Zhejiang, China, we are committed to sincere service, punctuality, and high-quality products that attract customers worldwide.
Production Facility
BNC Surge Protector with 5kA/10kA Nominal Discharge Current and ≤0.3dB Insertion Loss for Lightning Protection DVR 1
Testing Laboratory
BNC Surge Protector with 5kA/10kA Nominal Discharge Current and ≤0.3dB Insertion Loss for Lightning Protection DVR 2
Certifications
BNC Surge Protector with 5kA/10kA Nominal Discharge Current and ≤0.3dB Insertion Loss for Lightning Protection DVR 3
Shipping & Logistics
BNC Surge Protector with 5kA/10kA Nominal Discharge Current and ≤0.3dB Insertion Loss for Lightning Protection DVR 4
