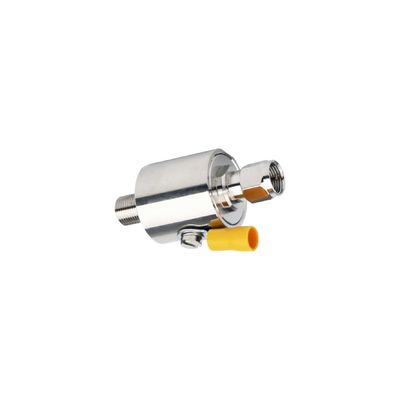

10kA 50Ω Coaxial Surge Protector with IEC 61643-21 Standards RF Surge Arrester for Industrial Applications

Large Image : 10kA 50Ω Coaxial Surge Protector with IEC 61643-21 Standards RF Surge Arrester for Industrial Applications

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Model Number:	BR-F
Document:	SPDs for coaxial.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	30 days after payment
Payment Terms:	T/T
Supply Ability:	100000 pieces per month

Contact Now

10kA 50Ω Coaxial Surge Protector with IEC 61643-21 Standards RF Surge Arrester for Industrial Applications

Description

Application:	Industrial, Electronic Equipment	Nominal Discharge Current (8/20μs):	10kA
Connection (input/output):	F Connector	Warranty:	2 Years
Type:	Singal Protection	Characteristic Impedance:	50Ω
Enclosure Material:	Steel	Test Standards:	IEC 61643-21
IL:	20A	TA:	≤100ns
Highlight:	spd surge protector , commercial surge protection devices

F Type 10KA 50Ω Coaxial Surge Protector 130V/180V RF Surge Arrester SPD Surge Protection Device F Connector

Coaxial Surge Protector Features:

High discharge capacity and low voltage protection level for reliable performance in satellite and cable TV systems
50 Ω impedance technology
Durable steel enclosure with F connector for easy installation
High reliability protection from excessive voltages
Exchangeable integrated gas discharge tube
Multiple grounding types available
IP20 protection degree
Metallic housing with F connection for easy installation
Data cable protection for transmission and reception technology

Product Specifications:

Model	BR-F
Test standards	IEC 61643-21
Max. continuous operating DC voltage (Uc)	180V
Max. continuous operating AC voltage (Uc)	130V
Nominal current (IL)	20A
Nominal discharge current (8/20μs) line-shield/PG (In)	10kA
Voltage protection level [line-shield/PG] (Up)	≤800V
Response time [line-shield/PG] (tA)	≤100ns
Operating temperature range (Tu)	-40℃ to +80℃
Connection input/output	F socket
Bandwidth	3Gbps
Insertion loss	≤0.3dB
Impedance	50Ω
Enclosure material	Steel
Degree of protection	IP20
Order Code	D9024

Dimensions:

Applications:

Protects antenna coaxial devices and receive/transmit systems from lightning over-voltage, induced over-voltage, and static discharge
BOS radio, SAT and TV systems, mobile radio
Antenna systems
Security camera systems
Network appliances
Transmitters and receivers
Communication stations, radar stations, PHS base stations, mobile communication base stations, GPS base stations, CDMA base stations, satellite communications, and microwave stations

Product Advantages:

Long endurance due to minimum contact erosion from large-area contact surface of gas discharge tube
Multi-grade protection
High quality with extremely low capacitance
High frequency and low insertion loss
Wide range of connector styles
Water resistance designs
Built-in high-speed overvoltage protection device for efficient defense against lightning high-voltage pulses

Our Services:

Professional manufacturer with 21 years experience in surge protection products
Prompt response to inquiries within 24 hours
OEM/ODM services available
Custom packaging options
All products comply with IEC and IEEE international standards
Fast delivery
Individual testing prior to shipment

Shipping Information:

Certifications:

About IEC 61643-21 Standards:

Defines low-voltage surge protective devices for telecommunications and signalling networks
Specifies performance requirements and testing methods
Establishes test categories for surge protective devices in telecommunications applications
