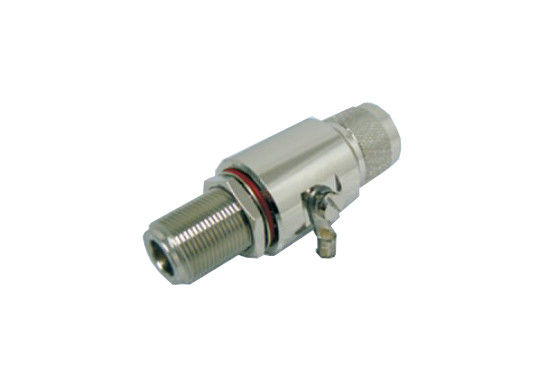

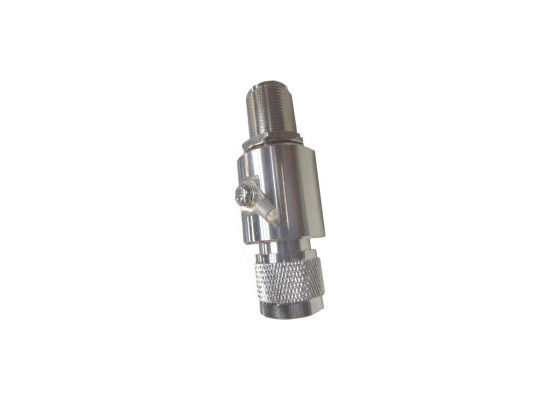

N Socket Universal Coaxial Communication Connector for SPD Surge Protection Device Signal N Male to Female
N Socket Coaxial Surge Protector Feature:
• Material Steel.
• Interface port: coaxial
• High quality N-type termination connectors
• Certificate IEC 61643-21
• Interface Type: N style coaxial connection
• Low insertion loss≤0.3Db
• Termination: BNC Connectors
• Characteristic impedance 50Ω
• High Reliability Protection from Excessive Voltages
• Water Resistance Designs
• Various Grounding Types Available
• A great surge protector to protect your equipment.
• Provides superior protection against high and low voltage transient surges
• This SPD (surge protective device) for co-axial cables can provide lightning surge protection for high frequency co-axial cables with N type connectors.
N Socket Coaxial Surge Protector Product Details:
| |
BR-N |
| Test standards |
IEC 61643-21 |
| Max.continuous operating d.c.voltage Uc |
180V |
| Max.continuous operating a.c.voltage Uc |
130V |
| Nominal current IL IL |
20A |
| C2 Nominal discharge current (8/20us) line-shield/PG In |
10kA |
| Voltage protection level [line-shield/PG] Up |
≤800V |
| Response time [line-shield/PG] tA |
≤100ns |
| Operating temperature range Tu |
-40℃…+80℃ |
| Connection input/output |
N socket |
| Bandwidth |
3Gbps |
| Insertion loss |
≤0.3dB |
| Impedience |
50Ω |
| Enclosure material |
Steel |
| Degree of protection |
IP20 |
| Order Code |
D9023 |
Dimension:
N Socket Coaxial Surge Protector Application:
• It can be used for the lightning surge protection of monitoring system's video line with BNC connector, BNC Matrix Connector, Optical Transmitter and Receiver BNC connector, Video Camera BNC connector.
• It can realize high efficiency of discharging lightning surge current and anti lightning function
• It is suitable for lightning protection of wireless communication antenna feeder, such as Satellite Antenna/Microwave/CATV/Short Wave/Ultra Short Wave/ Mobile Communication Equipment etc.
• Radio transmission and receiving equipment.
• Designed for antenna coaxial device and receive/transmit system not to be spoiled by lightning over-voltage.
N Socket Coaxial Surge Protector Advantage:
• High discharge capacity, low residual voltage
• Multi grade protection
• Large flow current
• Low insertion loss
• Great transmission performance
• Quick respond
• Easy installation and connection
• High frequency transmission
Our Services:
• Professional manufacturer, 17 years global leading profession manufacture of electrical products surge arrester.
• Prompt response: Any inquiries will be replied within 24 hours
• OEM/ODM available
• Standard packaging, and you can also tell us your own requirements on packaging
• All products in accordance with the IEC IEEE the international standard.
• Faster delivery
• Individually Tested Prior to Shipment
N Socket Coaxial Surge Protector Installation:
• N Surge protector should be installed as close a possible to the equipment to be protected, often at the point where the coax cable enters the building.
• A grounding stud is provided which should be connected to the system ground or coaxial feed-through bulkhead, as directly as possible.
Company profile:
Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.
FAQ:
Q1: Are you factory or trading company?
A: We are professional SPD factory, ISO9001 certified, we have our own mould, R&D, engineer, production, and QC department. Our products have very competitive advantage in price, quality, and lead time.
Q2: How about the pay term?
A: T/T, Paypal etc.
Q3: How about the shipping period?
A: Mass production time is 20 days (depend on your order quantities). Shipping by express is about 7 working days.
Q4: What certifications do you have?
A: We have approved ISO9001, CE, CB, TUV etc.
Q5. Can I add my logo on the products?
A: Yes, OEM and ODM are available for us.
