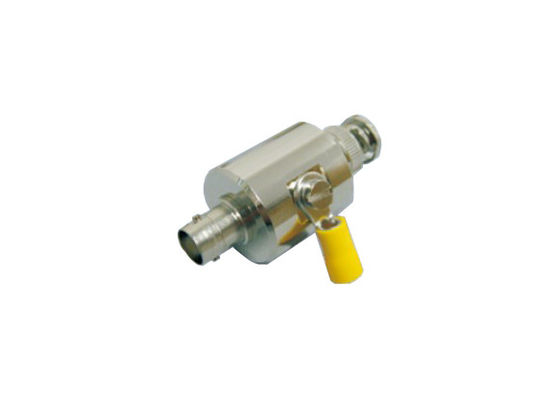

Name: BNC Connector Coaxial Surge Protection Device Spd Protection Low Insertion Loss
Brand: BRITEC
SKU: BR-BNC-H
Rating: 5 (151 reviews)

Home Products Data Surge Protector

BNC Connector Coaxial Surge Protection Device Spd Protection Low Insertion Loss

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BR-BNC-H

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Test Standards:	IEC 61643-21	In:	10kA
Uc (DC):	180V	Material:	Steel
IL:	20A	Connection:	BNC Socket
Bandwidth:	3Gbps	Insertion Loss:	≤0.3dB
Uc (AC):	130V	Impedience:	50Ω
Highlight:	spd surge protector , commercial surge protection devices

SPDs for Coaxial Connection BNC Connector Coaxial Surge Protection Device

BNC Connector Coaxial Surge Protection Device Spd Feature:

• Connector: BNC

• Designed according to IEC 61643-21 standard

• Interface accord with BNC standard Specification

• Short circuit current: up to 10kA (8/20μs)

• Universal surge and combined arresters

• It can realize high efficiency of discharging lightning surge current and anti lightning function

• High Reliability Protection from Excessive Voltages

• Characteristic impedance 50Ω

• High Frequency and Low Insertion Loss

• Easily Replaced Element

• Various Grounding Types Available

• The built-in high-speed overvoltage protection device has an efficient defensive function against the lightning high-voltage pulses induced on the antenna feeder to prevent the antenna.

BNC Connector Coaxial Surge Protection Device Spd Product Details:

	BR-BNC-H
Test standards	IEC 61643-21
Max.continuous operating d.c.voltage Uc	180V
Max.continuous operating a.c.voltage Uc	130V
Nominal current IL IL	20A
C2 Nominal discharge current (8/20us) line-shield/PG In	10kA
Voltage protection level [line-shield/PG] Up	≤800V
Response time [line-shield/PG] tA	≤100ns
Operating temperature range Tu	-40℃…+80℃
Connection input/output	BNC socket
Bandwidth	3Gbps
Insertion loss	≤0.3dB
Impedience	50Ω
Enclosure material	Steel
Degree of protection	IP20
Order Code	D9022

Dimension:

BNC Connector Coaxial Surge Protection Device Spd Protection Low Insertion Loss 0

BNC Connector Coaxial Surge Protection Device Spd Application:

• Protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage.

• It can be used for the lightning surge protection of monitoring system's video line with BNC connector, BNC Matrix Connector, Optical Transmitter and Receiver BNC connector, Video Camera BNC connector.

• The signal protection: low frequency signal protection, high-frequency signal protection etc.

• It is suitable for lightning protection of wireless communication, such as Satellite Antenna/Microwave/CATV/Short Wave/Ultra Short Wave/ Mobile Communication Equipment etc.

BNC Connector Coaxial Surge Protection Device Spd Advantage:

• Multi grade protection

• No power pollution

• Large flow current

• Contact materials with extremely long endurance

• The temperature protection circuit, built-in thermal protection

• Low insertion loss

• Low residual voltage

• Great transmission performance

• Quick respond

• High discharging capacity

• Easy installation and connection

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester

• All products will be well packed before shipping

• Standard packaging, and you can also tell us your own requirements on packaging

• Faster delivery

• Individually Tested Prior to Shipment

What is IEC 61643-21 standards?

• IEC 61643-21: Low-voltage surge protective devices; Part 21: Surge protective devices connected to telecommunications and signalling networks; Performance requirements and testing methods.

• The test categories for surge protective devices connected to telecommunications and signalling networks are defined in these standards.

Production process:

BNC Connector Coaxial Surge Protection Device Spd Protection Low Insertion Loss 1

About us:

Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.

BNC Connector Coaxial Surge Protection Device Spd Protection Low Insertion Loss 2

Laboratory:

BNC Connector Coaxial Surge Protection Device Spd Protection Low Insertion Loss 3

Certification:

BNC Connector Coaxial Surge Protection Device Spd Protection Low Insertion Loss 4

Shipping:

BNC Connector Coaxial Surge Protection Device Spd Protection Low Insertion Loss 5
