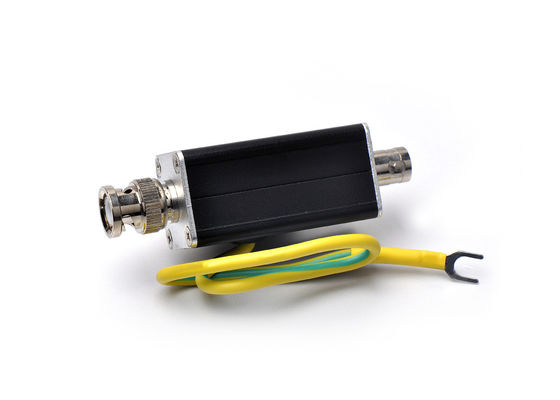

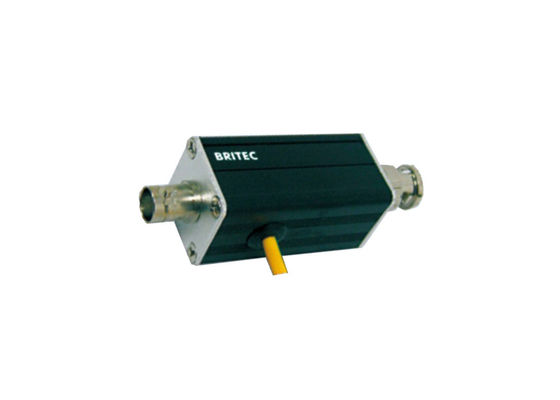

Aluminium Alloy Surge Protection Device BNC Connector Signal Coaxial Data SPD

Aluminium Alloy Surge Protection Device BNC Connector Signal Coaxial Data SPD

  • Aluminium Alloy Surge Protection Device BNC Connector Signal Coaxial Data SPD
  • Aluminium Alloy Surge Protection Device BNC Connector Signal Coaxial Data SPD
Aluminium Alloy Surge Protection Device BNC Connector Signal Coaxial Data SPD
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-BNC
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Test Standards: IEC 61643-21 Un: 5V
Uc (DC): 6V Material: Aluminium Alloy
IL: 0.5A Connection: BNC Socket
Bandwidth: 10Mbps Insertion Loss: ≤0.3dB
Uc (AC): 4V Impedience: 50Ω
High Light:

spd surge protector

,

commercial surge protection devices



Aluminium Alloy BNC Connector Signal Coaxial Surge Protection Device Coaxial Data SPD



Aluminium Alloy Surge Protection Device Feature:



• IEC 61643-21
• High discharge capacity
• Low insertion loss
• Protection for all lines
• Multistage protection, flow capacity and fast response
• Residual voltage is low, excellent transmission performance
• Grounding point after a special process to avoid signal interference
• BNC Surge Protective Device is designed according to the IEC standard
• It can be used for single BNC terminal, F terminal and N terminal lightning protection
• It realized high efficient discharging lightning currents which caused by lightning current
• Protect the system equipment from the permanent damage or transient interruption arising from inductive overvoltage, overcurrent and the other transient surge voltage caused by lightning or industrial noise, etc.



Aluminium Alloy Surge Protection Device Product Details:



  BR-BNC
Test standards IEC 61643-21
Nominal voltage                                                                           Un 5V
Max.continuous operating d.c.voltage                                          Uc 6V
Max.continuous operating a.c.voltage                                          Uc 4V
Nominal current IL                                                                         IL 0.5A
C2 Nominal discharge current (8/20us)line-shield                         In 5kA
C2 Nominal discharge current (8/20us)shield-PG                         In 10kA
Voltage protection level [line-shield]                                            Up   ≤30V
Voltage protection level [shield-PG]                                             Up   ≤500V
Response time [line-shield]                                                           tA ≤1ns
Response time [shield-PG]                                                           tA   ≤100ns
Operating temperature range                                                      Tu -40℃…+80℃
Connection input/output BNC socket
Bandwidth 10Mbps
Insertion loss ≤0.3dB
Impedience 50Ω
Enclosure material                 aluminium alloy
Degree of protection IP20
Order Code D9020



Dimension:



Aluminium Alloy Surge Protection Device BNC Connector Signal Coaxial Data SPD 0



Aluminium Alloy Surge Protection Device Application:



• Security engineering signal port
• Fire engineering signal port
• Test signal line
• Industrial control signal
• Field bus
• Control bus
• Field instruments
• BNC connector of monitoring system
• Lightning protection of other video line signal equipment
• Designed to protect coaxial lines
• Compact SPD with BNC interface for protecting coaxial system



Aluminium Alloy Surge Protection Device Advantage:



• Small size, Easy installation and replacement
• It has advantages of multi classes protection
• Perfect transmission performance
• Lower prices than other companies in the industry
• Professional manufacturer, over 10 years experience in production and processing
• Faster product innovation, production specialization, timely delivery
• Strict quality inspection procedure
• Quantity discount is available



Our Services:



• All products will be strictly Quality Checked in house before packing
• All products will be well packed before shipping
• Standard packaging, and you can also tell us your own requirements on packaging
• Faster delivery
• Individually Tested Prior to Shipment



What is IEC 61643-21 standards?



IEC 61643-21: Low-voltage surge protective devices; Part 21: Surge protective devices connected to telecommunications and signalling networks; Performance requirements and testing methods. The test categories for surge protective devices connected to telecommunications and signalling networks are defined in these standards.
