| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | CE |
| Model Number: | BR-BNC / BR-BNC-R / BR-BNC-H / BR-N / BR-F |
| Minimum Order Quantity: | 200 piece / pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | 15-30 days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pieces per month |
| Test Standards: | IEC 61643-21 | TU: | -40℃…+80℃ |
|---|---|---|---|
| Material: | Aluminium Alloy / Steel | Connection: | BNC Socket / BNC 24 Sockets / N Socket / F Socket |
| IL: | 0.5A / 20A | Bandwidth: | 10 Mbps |
| Insertion Loss: | ≤0.3dB | Impedience: | 50Ω |
| Highlight: | data surge protection devices,spd surge protector |
||

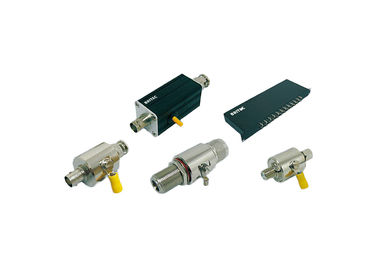

50Ω SPDs for Coxial,BR-BNC / BR-BNC-R / BR-BNC-H / BR-N / BR-F, aluminium alloy / steel
Product Details:

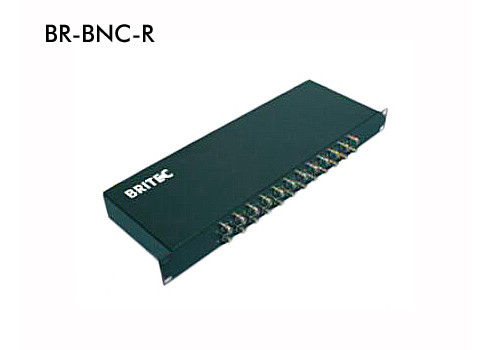

| BR-BNC | BR-BNC-R | BR-BNC-H | BR-N | BR-F | |
| Test standards | IEC 61643-21 | ||||
| Nominal voltage Un | 5V | 5V | - | - | - |
| Max.continuous operating d.c.voltage Uc | 6V | 6V | 180V | 180V | 180V |
| Max.continuous operating a.c.voltage Uc | 4V | 4V | 130V | 130V | 130V |
| Nominal current IL | 0.5A | 0.5A | 20A | 20A | 20A |
| C2 Nominal discharge current (8/20us) line-shield In | 5kA | 5kA | - | - | - |
| C2 Nominal discharge current (8/20us) shield-PG In | 10kA | 10kA | - | - | - |
| C2 Nominal discharge current(8/20us)line-shield/PG In | - | - | 10kA | 10kA | 10kA |
| Voltage protection level [line-shield] Up | ≤30V | ≤30V | - | - | - |
| Voltage protection level [shield-PG] Up | ≤500V | ≤500V | - | - | - |
| Voltage protection level [line-shield/PG] Up | - | - | ≤800V | ≤800V | ≤800V |
| Response time [line-shield] tA | ≤1ns | ≤1ns | - | - | - |
| Response time [shield-PG] tA | ≤100ns | ≤100ns | - | - | - |
| Response time [line-shield/PG] tA | - | - | ≤100ns | ≤100ns | ≤100ns |
| Operating temperature range Tu | -40℃…+80℃ | ||||
| Connection (input/output) | BNC socket | BNC 24 sockets | BNC socket | N socket | F socket |
| Bandwidth | 10Mbps | 10Mbps | 3Gbps | 3Gbps | 3Gbps |
| Insertion Loss | ≤0.3dB | ≤0.3dB | ≤0.3dB | ≤0.3dB | ≤0.3dB |
| Impedience | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω |
| Enclosure material | aluminium alloy | aluminium alloy | Steel | Steel | Steel |
| Degree of protection | IP20 | IP20 | IP20 | IP20 | IP20 |
| Order Code | D9020 | D9021 | D9022 | D9023 | D9024 |
Product Description:
Dimension:
Britec owns advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. Britec team keep developing newest product for our customer, that is why technical level of our products can be reached to the leading level, we also can help customer OEM/ODM.
Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.
Britec have strong sales team, our surge protection device are sold to many countries around the world. Europe and Asia are our main market. We would like to cooperate with global customers and help you success in your market.
Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company implements ISO9001 quality mangement system.
Britec have developed a wide range of products mainly covering requirements in the area of low voltage lightning protection, such as SPD for power system,PV system and data , etc. All these products have been widely applied in electronic system, computer network and security system, protection for power industry, petroleum chemical industry and national defense industry.
FAQ:
Q1: Are you manufacturer or trader?
A: We are manufacturer and trader.
Q2: Do you provide samples?
A: Yes, we could offer sample.
Q3: What's your payment tearms?
A: 30% deposit by T/T, balance before shipment.
Q4: How long is your delivery time?
A: Generally 20 working days after receiving deposit, if the pruducts out of stock delivery time should depend on the production schedule.
Q5: Can we visit your factory?
A: Warmly welcome.
