Data Surge Protector
>

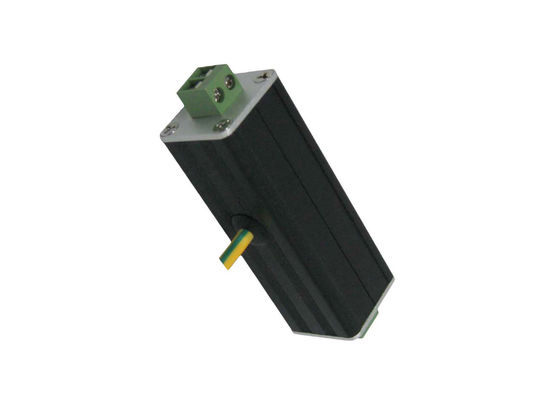

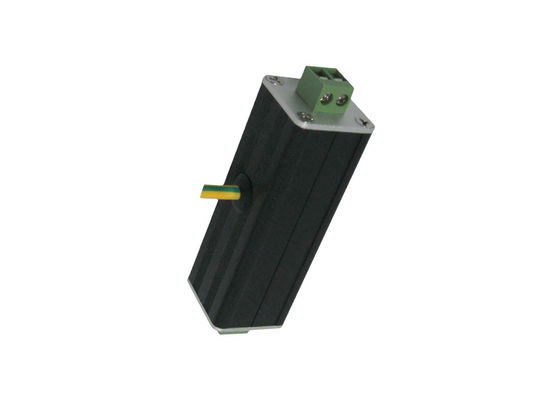

10 Mbps Data Line 1- Port Data Surge Protector With IEC61643-21 Standard

10 Mbps Data Line 1- Port Data Surge Protector With IEC61643-21 Standard

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BRGI-2L-6 1port
Detail Information
Place of Origin:
China
Brand Name:
BRITEC
Certification:
CE
Model Number:
BRGI-2L-6 1port
Place Of Origin:
Zhejiang, China (Mainland)
Standards:
IEC 61643-21
Model Number:
BRGI-2L-6 1port
Item Name:
Rs485 Surge Protection Device
Material:
Aluminium Alloy
Un:
6V
Port:
1 Port
Tu:
-40℃-80℃
Highlight:

High Light

Highlight:

data line surge protector

,

data center surge protection

Trading Information
Minimum Order Quantity:
200 Piece/Pieces
Packaging Details:
EXPORT PACKING
Delivery Time:
Shipped in 15-30 days after payment
Payment Terms:
T/T
Supply Ability:
50000 Piece/Pieces per Month
Product Description



10 Mbps Data Line 1-Port Data Surge Protector IEC61643-21 Standard



Characteristics:



• Compatible with 6V nominal voltage.
• 5kA surge discharge current.
• 10 Mbps data rate.
• Grounding is accomplished via a ground wire.



Product Details:



                      BRGI-2L-6 1port
Test standards IEC 61643-21
Nominal voltage                                                                     Un 6V
Max. continuous operating d.c. voltage                                 Uc 8V
Max. continuous operating a.c. voltage                                 Uc 5V
Nominal current                                                                       IL 0.5A
C2 Nominal discharge current (8/20us) per line                      In 5kA
Voltage protection level [line-line]                                          Up ≤30V
Voltage protection level [line-PG]                                           Up ≤600V
Response time [line-line]                                                         tA ≤1ns
Response time [line-PG]                                                         tA ≤100ns
Operating temperature range                                                 Tu -40℃…+80℃
Connection input / output Terminal Block
Bandwidth 10 Mbps
Insertion Loss ≤0.3dB
Enclosure material aluminium alloy
Degree of protection IP20



Technology characteristic:



10 Mbps Data Line 1- Port Data Surge Protector With IEC61643-21 Standard 0


Application:

• Protect expensive equipment against surges and transients entering a building on exposed
  transmission lines.
• Protect electrical devices from voltage spikes.
• Protect high-speed communication network from lightning over-voltage, transient over-voltage and
  static discharge.

Advantage:

• Fast energy absorption when over-voltage occurs.
• Advanced manufacturing process.
• Excellent performance on discharge current.
• Fast response time.
• Professional manufacturer.

Factory:

10 Mbps Data Line 1- Port Data Surge Protector With IEC61643-21 Standard 1

Certification:

10 Mbps Data Line 1- Port Data Surge Protector With IEC61643-21 Standard 2


FAQ:


Q1. Are you a trading company or manufacturer?

  A: Manufacturer with factory!


Q2. What kinds of products do you produce?
  A: It covers AC surge protection, DC lightning protection, data surge protector, LED lightning

      arrester,etc.


Q3.Is customized available?
  A: Yes, please offer your required specs.


Q4. Do you accept OEM service?
  A: YES!


Q5. What's your Delivery Time?
  A: Normally 15-30days
