| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | CE |
| Model Number: | BR-ME-12 |
| Minimum Order Quantity: | 200 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15-30 days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 50000 Piece/Pieces per Month |
| Place Of Origin: | Zhejiang, China (Mainland) | Type: | TYPE2 P1 |
|---|---|---|---|
| Model Number: | BR-ME-12 | Item Name: | Data SPDs |
| Material: | Polyamide PA 6.6 | Un: | 12V |
| IL: | 0.5A | Tu: | -40℃-80℃ |
| High Light: | data line surge protector,ac data surge protection |
||

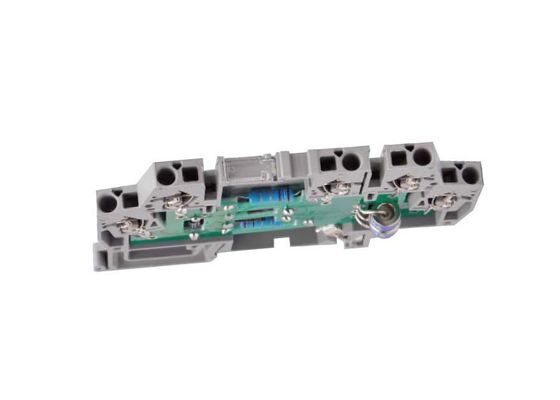

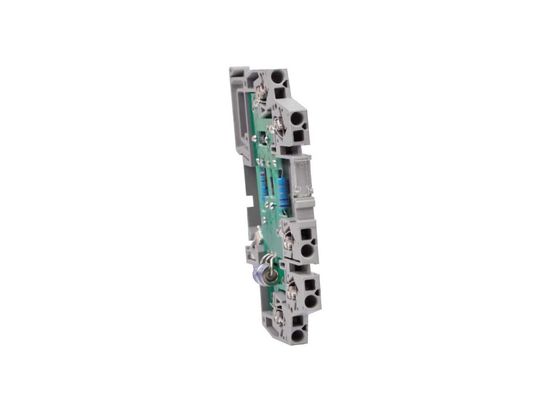

12V Data signal SPDs Data Line Surge Suppressor For Lightning Protection Systems
Characteristics:
Technology characteristic:
| BR-ME-12 | |
| Test standards | IEC 61643-21 |
| SPD class | TYPE2 P1 |
| Nominal voltage Un | 12V |
| Max. continuous operating d.c. voltage Uc | 14V |
| Max. continuous operating a.c. voltage Uc | 9.5V |
| Nominal current at 45℃ IL | 0.5A |
| C2 Total nominal discharge current (8/20us) In | 10kA |
| C2 Nominal discharge current (8/20us) per line In | 5kA |
| Voltage protection level line-line for ln C2 Up | ≤55V |
| Voltage protection level line-PG for ln C2 Up | ≤40V |
| Voltage protection level line-line at 1 kV / us C3 Up | ≤36V |
| Voltage protection level line-PG at 1 kV / us C3 Up | ≤19V |
| Sereies impedance per line | 1.8 Ohm |
| Cut-off frequency line-PG fG | 2.5 MHz |
| Capacitance line-line C | ＜1.2nF |
| Capacitance line-PG C | ＜2.4nF |
| Operating temperature range Tu | -40℃…+80℃ |
| Cross section of cable | 0.08—2.5mm2 |
| Enclosure material | polyamide PA 6.6 |
| Degree of protection | IP20 |
Established in 2003, now we have professional sell team and R&D with 17 year's customized
experience on SPDs. Product category: AC surge arrester, PV (solar) surge protector, data surge
protection, LED lightning protective device. We are factory, compare with purchase from trading
company, you can save 20% -40%. Quick Delivery: 15-30 days after received your deposit. Making
perfect quality is our unceasing pursuit. We regard first-class quality and credit as our tent, and to
supply excellent service for our customers.
FAQ:
Q1. What is your terms of packing?
A: For carton. Accept OEM package.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about the delivery time?
A: 15 to 30 days.
Q5: Where is your factory located? How can I visit there?
A: Located in Yueqing city, Zhejiang province. You can fly to Longwan International Airport, welcome
to visit us.
