BR-DB25 Data Surge Protector with 10 KA Nominal Current, 5-Year Warranty, and IP20 Protection for Lightning Protection Systems

BR-DB25 Data Surge Protector with 10 KA Nominal Current, 5-Year Warranty, and IP20 Protection for Lightning Protection Systems
BR-DB25 Data Surge Protector with 10 KA Nominal Current, 5-Year Warranty, and IP20 Protection for Lightning Protection Systems
BR-DB25 Data Surge Protector with 10 KA Nominal Current, 5-Year Warranty, and IP20 Protection for Lightning Protection Systems BR-DB25 Data Surge Protector with 10 KA Nominal Current, 5-Year Warranty, and IP20 Protection for Lightning Protection Systems BR-DB25 Data Surge Protector with 10 KA Nominal Current, 5-Year Warranty, and IP20 Protection for Lightning Protection Systems BR-DB25 Data Surge Protector with 10 KA Nominal Current, 5-Year Warranty, and IP20 Protection for Lightning Protection Systems

Large Image :  BR-DB25 Data Surge Protector with 10 KA Nominal Current, 5-Year Warranty, and IP20 Protection for Lightning Protection Systems

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: ISO9001/ISO14001/ISO45001
Model Number: BR-DB25
Payment & Shipping Terms:
Minimum Order Quantity: 5 PCS
Packaging Details: carton
Delivery Time: 15 days after receipt of deposit
Payment Terms: TT
Supply Ability: 1000000 per month
Contact Now

BR-DB25 Data Surge Protector with 10 KA Nominal Current, 5-Year Warranty, and IP20 Protection for Lightning Protection Systems

Description
Degree Of Protection: IP20 Operating Temperature Range: -40℃…+80℃
Product Name: Computer Surge Protector Nominal Current: 10 KA
Weight: 150g Warranty: 5 Years
Highlight:

BR-DB25 Signal Surge Arrester

,

Telecommunication Network Surge Arrester

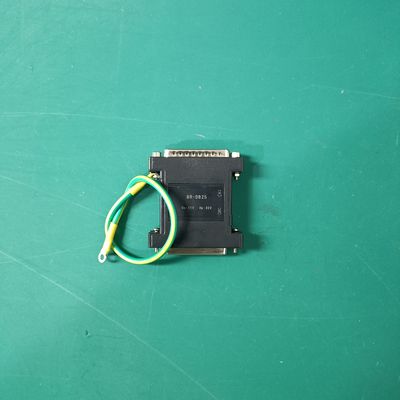

BR-DB25 Signal Surge Arrester Lightning Protection System
BR-DB25 Signal Surge Arrester front view BR-DB25 Signal Surge Arrester technical diagram
Technical Specifications
Specification BR-DB25
Test standards IEC 61643-21
Nominal voltage Un 12V
Max. continuous operating d.c. voltage Uc 15V
C2 Norminal discharge current (8/20μs) line-SG In 5kA
C2 Norminal discharge current (8/20μs) SG-PG In 10kA
Voltage protection level [line-SG] Up ≤40V
Voltage protection level [SG-PG] Up ≤500V
Response time [line-SG] tA ≤1ns
Response time [SG-PG] tA ≤100ns
Operating temperature range Tu -40℃-80℃
Connection input/output D-Sub 25 plug/socket
Pinning line: 2/3/4/5/6/8/20, SG: 7
Bandwidth 10Mbps
Insertion Loss ≤0.3dB
Enclosure material aluminium alloy
Degree of protection IP20
Order code D9072
Key Features
  • Operating voltage (Un): 12V
  • Compatible with D-Sub 25 plug/socket connectors
  • DB series serial communication line surge protection
  • All 25 lines wired pin-to-pin with included locking hardware
  • Designed to lightning surge protection standard IEC communications
  • Provides comprehensive lightning protection for D-SUB data transfer ports
  • Weight: 150g
  • Nominal current: 10 KA
  • Degree of protection: IP20
  • Operating temperature range: -40℃ to +80℃
  • 5-year warranty
Applications
  • Electronic devices and equipment
  • Male to male and female to female 25-pin 'D' connector gender changers
  • Industrial control lightning protection systems
  • DB25 telecom and LAN networks
  • Commercial and military applications
  • Computer rooms and data centers
  • Telecommunications rooms
  • Surveillance systems
  • Industrial control systems
Installation and Maintenance
DB series serial communication system surge protector can be installed on LPZ1-LPZ2 interface and higher interface that provides the full range of lightning protection for the D-SUB port for data transfer.
  • The ground path should be as short as possible, no longer than 1.5 meters
  • During installation, confirm whether the pin configuration matches the communication equipment being protected
  • Regularly inspect the surge protector's operation
  • Immediately replace the protector if system transmission performance decreases or signal interruption occurs
Product Overview
The Computer Surge Protector is designed to operate within a temperature range of -40℃ to +80℃, making it suitable for use in various environments. Whether in hot server rooms or cold outdoor settings, this device withstands extreme temperatures while protecting your electronics.
With a 5-year warranty, lightweight design (300g), and nominal current rating of 10 KA, this signal surge arrestor handles high voltages and currents common in data and signal lines, ensuring your electronics remain protected from power surges and spikes.
Manufacturing Details
Manufactured in China with ISO9001/ISO14001/ISO45001 certifications. Minimum order quantity: 1PCS. Packaging: carton. Delivery time: 15 days after receipt of deposit. Payment terms: TT. Supply capacity: 1,000,000 units per month.
Support and Services
Comprehensive technical support and services ensure protection and continuity of your data. Our expert team assists with installation, configuration, and operation. We offer maintenance services to ensure optimal performance and provide updates and upgrades as necessary.
Frequently Asked Questions
Q1: What is the brand name of the data surge protector?
A1: The brand name is BRITEC.
Q2: What is the model number of the data surge protector?
A2: The model number is BR-DB9.
Q3: Where is the data surge protector manufactured?
A3: Manufactured in China.
Q4: What certifications does the data surge protector have?
A4: Certified with ISO9001/ISO14001/ISO45001.
Q5: What is the minimum order quantity for the data surge protector?
A5: Minimum order quantity is 1PCS, packaged in carton. Delivery time is 15 days after receipt of deposit. Payment terms: TT. Supply capacity: 1,000,000 units per month.
BR-DB25 installation diagram BR-DB25 technical specifications diagram BR-DB25 application examples BR-DB25 product packaging
