Place of Origin: | China |
Brand Name: | BRITEC |
Certification: | TUV/CB/CE/ROHS/ISO9001 |
Model Number: | BR-POE-P |
Minimum Order Quantity: | 1PCS |
---|---|
Packaging Details: | carton |
Delivery Time: | 15 days after receipt of deposit |
Payment Terms: | TT |
Supply Ability: | 1000000 per month |
Product Name: | Data Surge Protector | Nominal Current: | 1A |
---|---|---|---|
Norminal Voltage: | 48V | C2 Nominal Discharge Current (8/20μs) Line-PG: | 3kA |
For Mounting On: | 35mm DIN Rails Acc. To EN 60715 | Degree Of Protection: | IP20 |
Operating Temperature Range: | -40℃…+80℃ | Enclosure Material: | Polyamide PA 6.6 |
Enhanced surge protection.
Standard: IEC 61643-21.
SPD Class: TYPE2 P1.
Nominal current: 1A.
D1 lightning impulse current (10/350us) per line: 0.5kA.
Connection: RJ45 socket.
Insertion loss at 250MHz: ≤3 dB.
Operating temperature range: -40℃—80℃.
For mounting on 35mm DIN rails acc. to EN 60715.
It can effectively ensure the equipment work properly.
Protect transmission of Ethernet signals with 48V power supply circuits against lightning induced surges.
Advantage:
Easy installation and replacement.
Lower prices than other companies in the industry.
Strong protection ability and high reliability.
The 48V DC power interface can be installed according to the user's needs.
Professional manufacturer, over 20 years' experience in production and processing.
Faster product innovation, production specialization, timely delivery.
Strict quality inspection procedure.
Multi-stage protection, low residual voltage, good transmission performance, and fast response.
Our POE surge protector boasts high-speed, high-energy handling capacity to protect against overvoltage problems.
Specification | BR-POE-P | |
Test standards | IEC 61643-21 | |
SPD class | TYPE2 P1 | |
Nominal voltage | Un | 48V |
Max. continuous operating d.c. voltage | Uc | 48V |
Max. continuous operating a.c. voltage | Uc | 34V |
Max. continuous operating d.c. voltage pair-pair(PoE) | Uc | 57V |
Nominal current | IL | 1A |
D1 Lightning impulse current (10/350 μs) per line | Iimp | 0.5kA |
C2 Nominal discharge current (8/20μs) line-line | In | 150A |
C2 Nominal discharge current (8/20μs) line-PG | In | 2.5kA |
C2 Total nominal discharge current (8/20μs) line-PG | In | 10kA |
C2 Nominal discharge current (8/20μs) pair-pair(PoE) | In | 150A |
Voltage protection level pair-pair for In C2 | Up | ≤180V |
Voltage protection level line-PG for In C2 | Up | ≤500V |
Voltage protection level line-line for In C2(POE) | Up | ≤600V |
Insertion loss at 250 MHz | ≤3dB | |
Capacitance line-line | C | ≤30pF |
capacitance line-PG | C | ≤25pF |
Operating temperature range | Tu | -40℃-80℃ |
For mounting on | 35mm DIN rails acc. to EN 60715 | |
Connection (input/output) | RJ45 socket/RJ45 socket | |
Pinning | 1/2, 3/6, 4/5, 7/8 | |
Earthing via | 35mm DIN rails acc. to EN 60715 | |
Enclosure material | polyamide PA 6.6 | |
Degree of protection (plugged-in) | IP10 | |
Order Code | D9161 |

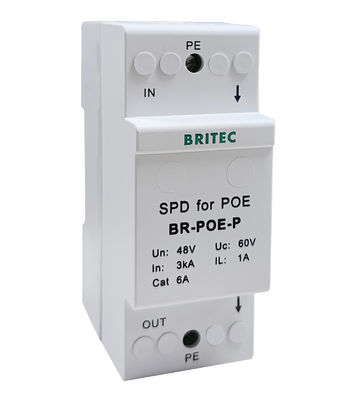

The BRITEC BR-POE-P Data Surge Protector is a signal surge arrestor and power surge protection device designed to protect your network from signal and power surges. This surge protection network device is certified by TUV/CB/CE/ROHS/ISO9001 and comes with a minimum order quantity of 1PCS. It is packaged in a carton and can be delivered within 15 days after receipt of the deposit. The payment can be made via TT. The BRITEC BR-POE-P Data Surge Protector is capable of supplying up to 1000000 per month. It is designed to be mounted on 35mm DIN rails in accordance with EN 60715. The product weighs only 0.5kg and has an operating temperature range of -40℃…+80℃ with a polyamide PA 6.6 enclosure material. It is the perfect choice for those looking for reliable data protection and surge protection network devices.
We offer customized service for Data Surge Protector with brand name BRITEC and model number BR-POE-P. It is certified by TUV/CB/CE/ROHS/ISO9001. The minimum order quantity is 1PCS, and it is packaged in carton. Delivery time is 15 days after receipt of deposit, and payment terms are TT. Our Supply Ability is 1000000 per month. Its C2 Nominal discharge current (8/20μs) line-PG is 2.5kA, and its Weight is 0.5kg. It is for mounting on 35mm DIN Rails Acc. To EN 60715, with Degree of protection IP20, and its Enclosure material is Polyamide PA 6.6.
