BRBD-4L-12 12V Rated Voltage Data Surge Protector with DIN Rail Mounting and 20kA Discharge Current

Large Image : BRBD-4L-12 12V Rated Voltage Data Surge Protector with DIN Rail Mounting and 20kA Discharge Current

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BRBD-4L-12

Payment & Shipping Terms:

Minimum Order Quantity:	20 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C,D/A,T/T,Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

BRBD-4L-12 12V Rated Voltage Data Surge Protector with DIN Rail Mounting and 20kA Discharge Current

Description

Place Of Origin:	Zhejiang, China (Mainland)	Rated Voltage:	12V
Model Number:	BRBD-4L-12	Item Name:	Signal System Surge Protector
Shipping Term:	TNT DHL FEDEX EMS UPS	Customized:	Yes
Delivery Time:	15days	Quality:	100%Brand
Protection Class:	IP 20	Package:	Carton Package
Highlight:	12V network surge Protector , DIN rail mouting Data Surge Protector , 12V Data Surge Protector

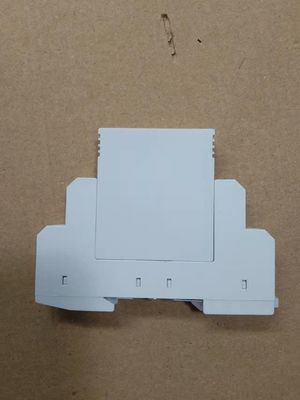

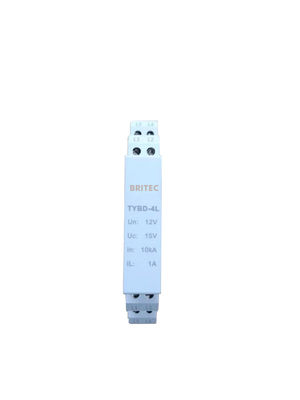

12V Data Surge Protector Transmission Device SPD Network Surge Protective Device

Signal Surge Protective Devices Power Line SPDs for Data Transmission

Surge protection for use in measurement and control technology. Medium and fine protection.

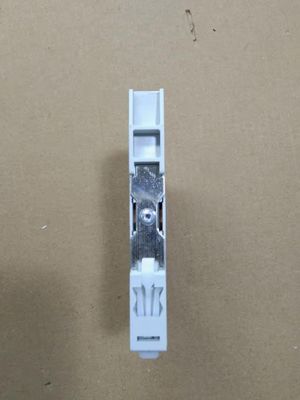

Consists of a pluggable surge protection module and a base part for DIN rail mounting
Easy replacement of protection modules
All protection components integrated in the protection module

Product Details

Model	BRBD-4L-12
Test standards	IEC 61643-21
SPD class	TYPE2 P1
Nominal voltage Un	12V
Max. continuous operating d.c. voltage Uc	15V
Max. continuous operating a.c. voltage Uc	10.6V
Nominal current at 45℃ IL	1A
C2 Total nominal discharge current (8/20us) In	20kA
C2 Nominal discharge current (8/20us) per line In	10kA
Voltage protection level line-line for ln C2 Up	≤27V
Voltage protection level line-PG for ln C2 Up	≤600V
Voltage protection level line-line at 1 kV / us C3 Up	≤19V
Voltage protection level line-PG at 1 kV / us C3 Up	≤550V
Series impedance per line	1 Ohm
Cut-off frequency line-PG fG	2.8 MHz
Capacitance line-line C	≤1.0nF
Capacitance line-PG C	≤16pF
Operating temperature range Tu	-40℃…+80℃
Enclosure material	polyamide PA 6.6
Degree of protection (plugged-in)	IP20

Dimensions

Our Services

Sample service: sample offered
Fast & cost-effective shipping
Fast lead time
Best after-sale service

Applications

Protection against indirect lightning effects
Protect equipment with high-speed signal
For the protection of network equipment
Protect low frequency signalling application
It protects AC power supply of sensitive data equipment against lightning induced surges

Certification

Shipping

By sea, By air, By express etc.

Company Introduction

Britec Electric Wenzhou Co., Ltd. is specialized in the production of lightning protection. 17 years' experience, ISO, TUV & CE certificated, three-hours reach Ningbo port, this is how we keep superior quality and competitive offers for global valued customers. Our main products cover AC surge arrester, DC surge protection, data surge protector, lightning protective device, etc.

Testing

Frequently Asked Questions

Q1. English version is available?

A: Yes.

Q2. What is the lead time for delivery?

A: 15-30 workdays according to your quantity.

Q3. Do you have any MOQ limit?

A: 100pcs.

Q4. What express do you often use?

A: TNT, DHL, UPS, FedEx, etc. Any method you can choose!

Q5. What's your acceptable payment term?

A: Our usually payment term is T/T.
