| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | CE |
| Model Number: | BRGI-2L-12 |
| Minimum Order Quantity: | 20 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15-30 days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 50000 Piece/Pieces per Month |
| Place Of Origin: | Zhejiang, China (Mainland) | Standards: | IEC 61643-21 |
|---|---|---|---|
| Model Number: | BRGI-2L-12 | Item Name: | Network Surge Protective Device |
| Material: | Aluminium Alloy | Un: | 12V |
| IP Code: | IP20 | Tu: | -40℃-80℃ |
| Response Time: | 1n (s) | ||
| High Light: | aluminium alloy surge protective device,IP20 signal surge protector,aluminium alloy signal surge protector |
||

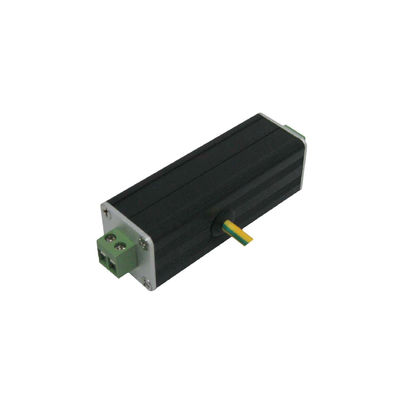

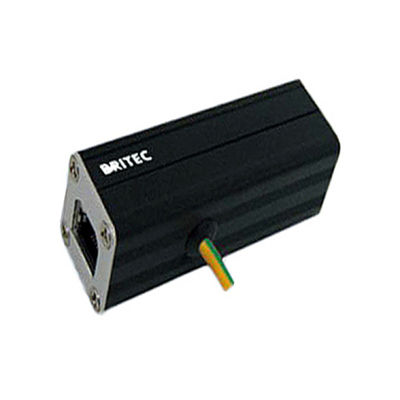

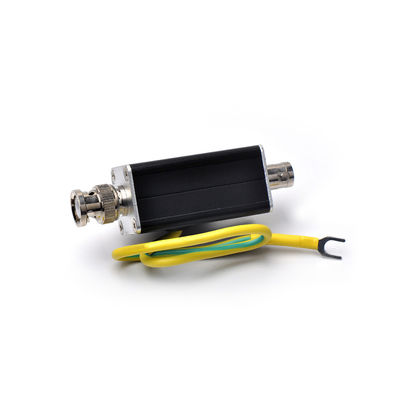

Data Line 1-Port Data Surge Protector IEC61643-21 Standard
Characteristics:
network surge protective device includes 100M
ethernet network lightning arrester and Gigabit ethernet network
lightning arrester.It is suitable for lightning surge or electrostatic protection of network switches,network cameras and other important equipment transmitted by wired network.
Product features
Product Details:
| BRGI-2L-12 | |
| Test standards | IEC 61643-21 |
| Nominal voltage Un | 12V |
| Max. continuous operating d.c. voltage Uc | 15V |
| Max. continuous operating a.c. voltage Uc | 11V |
| Nominal current IL | 0.5A |
| C2 Nominal discharge current (8/20us) per line In | 5kA |
| Voltage protection level [line-line] Up | ≤40V |
| Voltage protection level [line-PG] Up | ≤600V |
| Response time [line-line] tA | ≤1ns |
| Response time [line-PG] tA | ≤100ns |
| Operating temperature range Tu | -40℃…+80℃ |
| Connection input / output | Terminal Block |
| Bandwidth | 10 Mbps |
| Insertion Loss | ≤0.3dB |
| Enclosure material | aluminium alloy |
| Degree of protection | IP20 |
Technology characteristic:
FAQ:
Q1. Are you a trading company or manufacturer?
A: Manufacturer with factory!
Q2. What kinds of products do you produce?
A: It covers AC surge protection, DC lightning protection, data surge protector, LED lightning
arrester,etc.
Q3.Is customized available?
A: Yes, please offer your required specs.
Q4. Do you accept OEM service?
A: YES!
Q5. What's your Delivery Time?
A: Normally 15-30days
