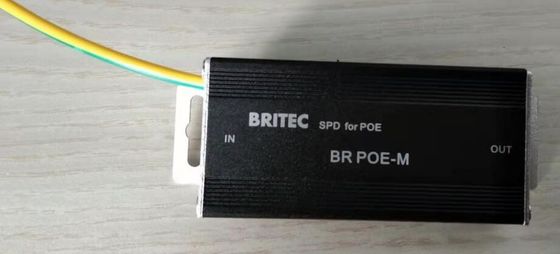

Ethernet PoE Surge Protector Telecom RJ45 Power Over lightning arrester rj45

Ethernet PoE Surge Protector Telecom RJ45 Power Over lightning arrester rj45

  • Ethernet PoE Surge Protector Telecom RJ45 Power Over lightning arrester rj45
  • Ethernet PoE Surge Protector Telecom RJ45 Power Over lightning arrester rj45
  • Ethernet PoE Surge Protector Telecom RJ45 Power Over lightning arrester rj45
Ethernet PoE Surge Protector Telecom RJ45 Power Over lightning arrester rj45
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-POE-M
Payment & Shipping Terms:
Minimum Order Quantity: 10 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-20 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Insertion Loss At 250 MHz: < 3dB Packing Unit: 2 Pc
Approvals: TUV, CB, RoHS MOQ: 10PCS
Delivery Time: 10 Days Connection (input / Output): RJ45 / RJ45
Rated Current IL: 1 A Degree Of Protection: IP 20
Item: Telecom Surge Protection Devices
High Light:

Power Over Ethernet PoE Surge Protector

,

RJ45 Ethernet PoE Surge Protector

,

Telecom PoE Surge Protector

Ethernet network Power System SPD 48V RJ45 POE surge protector



RJ45 POE surge protector​​ Product Details:

The Power over Ethernet PoE surge protector device SPD is designed to protect sensitive data-processing equipment connected to a PoE (Power over Ethernet) network from transient overvoltages for indoor application.

The “Net Defender” permits the use of Power over Ethernet PoE surge protector with nominal currents of up to 1 A. It can be snapped directly onto the hat rail and uses it to create the necessary equipotential bonding. Alternatively, terminal protection using a separately connectable

Nominal voltage UN

The nominal voltage stands for the nominal voltage of the system to be protected. The value of the nominal voltage often serves as type designation for surge protective devices for information technology systems. It is indicated as an r.m.s. value for a.c. systems.

It can effectively ensure the equipment work properly.

Protect transmission of Ethernet signals with 48V power supply circuits against lightning induced surges.

Small insertion loss, good transmission rate.



Specification BR-POE-M
Test standards IEC 61643-21
SPD class   TYPE2 P1
Norminal voltage Un 48V
Max. continuous operating d.c. voltage Uc 48V
Max. continuous operating a.c. voltage Uc 34V
Max. continuous operating d.c. voltage pair-pair(PoE) Uc 57V
Nominal current IL 1A
D1 Lightning impulse current (10/350 μs) per line Iimp 0.5kA
C2 Norminal discharge current (8/20μs) line-line In 150A
C2 Nominal discharge current (8/20μs) line-PG In 2.5kA
C2 Total nominal discharge current (8/20μs) line-PG In 10kA
C2 Nominal discharge current (8/20μs) pair-pair(PoE) In 150A
Voltage protection level pair-pair for In C2 Up ≤180V
Voltage protection level line-PG for In C2 Up ≤500V
Voltage protection level line-line for In C2(POE) Up ≤600V
Insertion loss at 250 MHz   ≤3dB
Capacitance line-line C ≤30pF
capacitance line-PG C ≤25pF
Operating temperature range Tu -40-80
For mounting on   35mm DIN rails acc. to EN 60715
Connection (input/output)   RJ45 socket/RJ45 socket
Pinning   1/2, 3/6, 4/5, 7/8
Earthing via 35mm DIN rails acc. to EN 60715
Enclosure material polyamide PA 6.6
Degree of protection (plugged-in) IP10



Product Description:

Ethernet PoE Surge Protector Telecom RJ45 Power Over lightning arrester rj45 0

Ethernet PoE Surge Protector Telecom RJ45 Power Over lightning arrester rj45 1

Ethernet PoE Surge Protector Telecom RJ45 Power Over lightning arrester rj45 2

Dimension:


Ethernet PoE Surge Protector Telecom RJ45 Power Over lightning arrester rj45 3



POE Surge Protector (Gigabit)

Power over Ethernet protector is designed for POE power supply equipment, are widely used in the areas of wireless coverage, security monitoring, etc. to protect the communication equipment's POE port line from the impact of lightning Electromagnetic pulse, lightning electromagnetic pulse, switching overvoltage.
