48V RJ45 Data Surge Protector with 100M/1000M Transmission Rate and 5 Years Warranty for Ethernet Protection

Name: 48V RJ45 Data Surge Protector with 100M/1000M Transmission Rate and 5 Years Warranty for Ethernet Protection
Brand: Britec Electric Co., Ltd.
SKU: BR-POE-M
Price: 100.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BR-POE-M

Detail Information

Place of Origin:

China

Brand Name:

BRITEC

Certification:

Model Number:

BR-POE-M

OEM/ODM:

Support

Packing Unit:

3 Pc

Item:

Ethernet PoE Data Surge Protector

MOQ:

5 PCS

Material:

Shielded Aluminum Alloy

Connector:

RJ45

Warranty:

5 Years

Temperature:

-40 To 85℃

Transmission Rate:

100M/1000M

IP Code:

IP20

Highlight:

High Light

Highlight:

Ethernet Surge Arrestor

RJ45 Ethernet 48V Surge Arrestor

Ethernet Surge Protector Arrester

Trading Information

Minimum Order Quantity:

5 piece / pieces

Packaging Details:

EXPORT PACKING

Delivery Time:

15-20 days after payment

Payment Terms:

T/T

Supply Ability:

50000 pieces per month

Product Description

SPD 48V RJ45 Ethernet Surge Arrestor - 100M/1000M Ethernet PoE Lightning Data Protection

Designed to protect Ethernet devices from lightning over-voltage, induced over-voltage, and static discharge.

Key Features

Gigabit PoE lightning protector
Shielded aluminum alloy construction
48V nominal voltage
100Mbps response time
IEC 61643-21 compliant
DIN rail mounting (35mm)

Technical Specifications

Specification	Value
Test standards	IEC 61643-21
SPD class	TYPE2 P1
Nominal voltage (Un)	48V
Max continuous operating d.c. voltage (Uc)	48V
Lightning impulse current (10/350 μs) per line (Iimp)	0.5kA
Nominal discharge current (8/20μs) line-PG (In)	2.5kA
Voltage protection level pair-pair for In C2 (Up)	≤180V
Operating temperature range	-40℃ to +80℃
Enclosure material	Polyamide PA 6.6

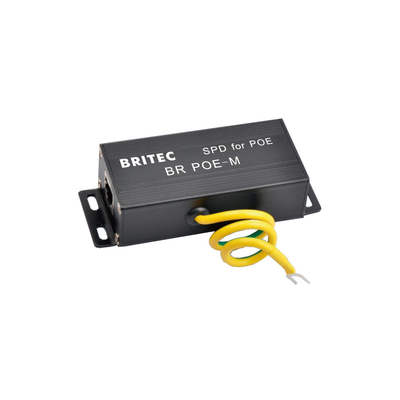

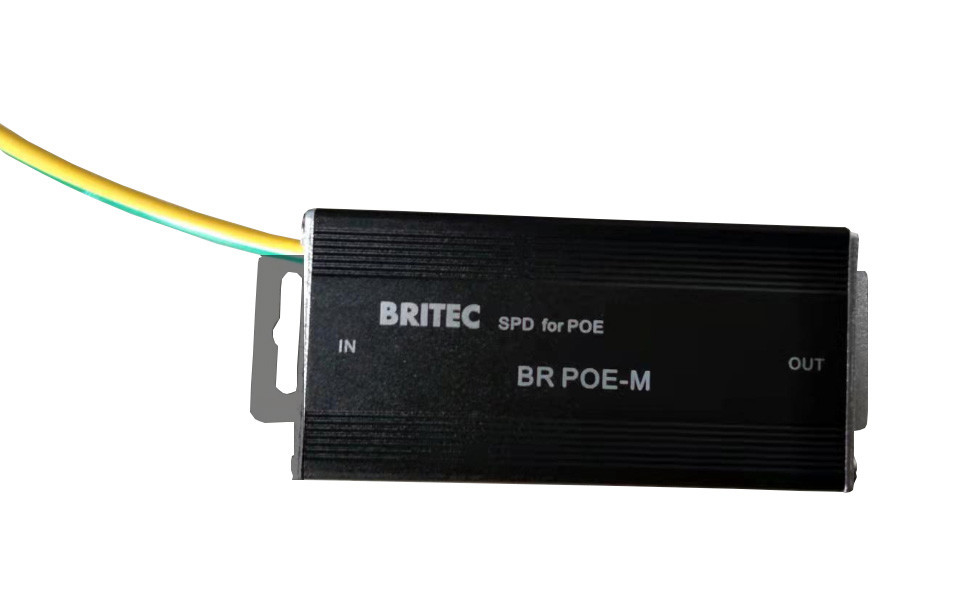

Product Images

Dimensions

Applications

Surge protection for terminal PC network cards
Protection for Ethernet networks
PoE (Power over Ethernet) systems

Manufacturer Information

Britec Electric Co., Ltd. is a professional surge protective devices (SPD) manufacturer established in 2003 with extensive experience in lightning protection solutions.

Quality Assurance

ISO9001 certified quality management system
CE, RoHS, TUV, SEMKO, CB certified products
In-house test laboratory
22+ years of R&D experience

Frequently Asked Questions

What is your production experience?

We have our own factory and in-house test laboratory, with R&D department having more than 22 years experience.

What are your advantages?

Fast delivery (2-3 weeks), large scale production (300,000 pieces/year), and quality recognized by transnational companies.

Do you accept custom packaging?

Yes, we can make packaging according to customer requirements while maintaining international standards.

Do you offer OEM services?

Yes, we accept OEM and ODM orders with proper brand authorization.

What is your warranty policy?

3 years warranty.

Can I order samples or small quantities?

Yes, we support sample orders, especially for new customers under certain conditions.
