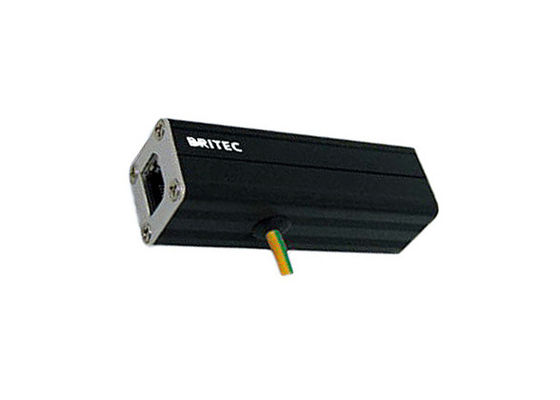

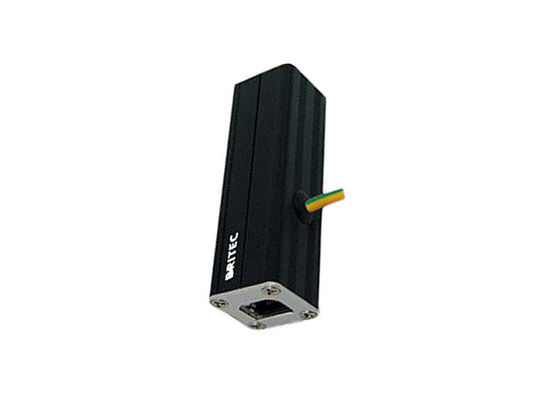

RJ45 Adapter Arrester Gas Discharge Tube Data Surge Protector

RJ45 Adapter Arrester Gas Discharge Tube Data Surge Protector

  • RJ45 Adapter Arrester Gas Discharge Tube Data Surge Protector
  • RJ45 Adapter Arrester Gas Discharge Tube Data Surge Protector
RJ45 Adapter Arrester Gas Discharge Tube Data Surge Protector
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BRRJ45L-4L
Payment & Shipping Terms:
Minimum Order Quantity: 200 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Item Name: Surge Arrester Lightning RJ45 LAN Surge Protector Connector Type: RJ45
Outlets: 1 Port Cable Type: Ethernet
Un: 5V IL: 0.5A
In: 5kA Bandwidth: 30 Mbps
OEM: Available Condition: 100% Original
High Light:

RJ45 Adapter Data Surge Protector

,

RJ45 Adapter data arrester

,

Gas Discharge tube arrester

RJ45 Adapter Lightning Protection Arrester Gas Discharge Tube Lightning Suppressor



RJ45 Adapter Lightning Protection Arrester Product description:

Model: BR-RJ45
RJ45 Lightning Suppressor with Gas Discharge Tube
Rated voltage Un: 5V
Maximum continuous running voltage Uc: 6V
Line-Line Line-Ground Protection, Bidirectional Clamping, 5KA 8/20μs
Case Material: Aluminum alloy
Thunder Arrestor Protects Computer Networking Equipment Devices like Router, Modem, Camera, Switch etc.
Interface method: RJ45


RJ45 Adapter Lightning Protection Arrester Product Details:



  BRRJ45L-4L
Test standards IEC61643-21
Nominal voltage                                                           Un 5V
Max.continuous operating d.c.voltage                         Uc 6V
Max.continuous operating a.c.voltage                         Uc 4V
Nominal current                                                             IL 0.5A
C2 Nominal discharge current (8/20us) per line            In 5kA
Voltage protection level [line-line]                                Up ≤30V
Voltage protection level [line-PG]                                 Up ≤500V
Response time [line-line]                                               tA ≤1ns
Response time [line-PG]                                               tA ≤100ns
Operating temperature range                                       Tu -40℃…+80℃
Connection (input/output) RJ45 socket
Bandwidth             30 Mbps
Insertion Loss ≤0.3dB
Enclosure material aluminium alloy
Degree of protection IP20



Dimension:



RJ45 Adapter Arrester Gas Discharge Tube Data Surge Protector 0



RJ45 Adapter Lightning Protection Arrester Usage environment:

Temperature: -40℃~80℃
Relative humidity: ≤95%
Atmospheric pressure: 70kPa~106kPa.

RJ45 Adapter Lightning Protection Arrester Installation instructions:

Protectors access system before, first check grounding resistance, generating should comply with the requirements specification
Protectors by protection equipment front-end, access to reliable connect
Protectors as soon as possible the grounding lines connected to protect grounding busbar.

Company information:

Wenzhou Britec Electric Co., Ltd. is a manufacturer and exporter specialized in SPDs. Such as ac surge protector, dc surge protection, LED lighting surge arrester, data surge protective device and so on. Our company is located in Yueqing, Zhejiang, China. Convenient transportation, excellent quality and prices and good service attract customers from each place of the world. Our company culture is "sincere and trustworthy, punctuality, high - quality" Welcome every clients!

RJ45 Adapter Arrester Gas Discharge Tube Data Surge Protector 1

Certificate:

RJ45 Adapter Arrester Gas Discharge Tube Data Surge Protector 2

Payment & Shipping:

RJ45 Adapter Arrester Gas Discharge Tube Data Surge Protector 3RJ45 Adapter Arrester Gas Discharge Tube Data Surge Protector 4

FAQ:


Q1: Are you a trade company or a manufacturer?
  A: We are the manufacturer and we are specialized in low voltage surge protection field.


Q2: What is your delivery date?
  A: Sample Order: 7-15 days after receipt of the full payment; Mass Order: 15-20days after receipt of the full payment; OEM Order: 15-30days after receipt of the deposit.

Q3: What is your payment terms?
  A: Paypel, TT, L/C ect.



Q4: Can you send samples?
  A: Yes, every time you need, please contact us directly.
