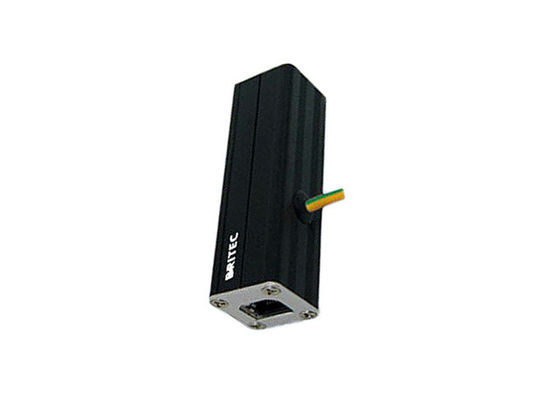

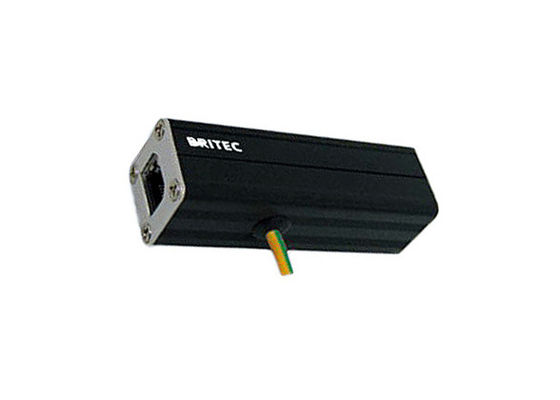

30Mbps LAN Lightning RJ45 Thunder Arrestor Device Ethernet Cable

30Mbps LAN Lightning RJ45 Thunder Arrestor Device Ethernet Cable

  • 30Mbps LAN Lightning  RJ45 Thunder Arrestor Device Ethernet Cable
  • 30Mbps LAN Lightning  RJ45 Thunder Arrestor Device Ethernet Cable
30Mbps LAN Lightning  RJ45 Thunder Arrestor Device Ethernet Cable
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BRRJ45L-4L
Payment & Shipping Terms:
Minimum Order Quantity: 200 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Item Name: Surge Arrester Lightning RJ45 LAN Surge Protector Connector Type: RJ45
Outlets: 1 Port Cable Type: Ethernet
Un: 5V IL: 0.5A
In: 5kA Bandwidth: 30 Mbps
Insertion Loss: ≤0.3dB Material: Aluminium Alloy
High Light:

RJ45 Thunder Arrestor

,

30Mbps Thunder Arrestor

,

LAN Lightning Thunder Arrester

RJ45 High Quality Thunder Arrester Device Computer Adapter LAN Lightning Protection



RJ45 High Quality Thunder Arrester Device Product description:

The BR-RJ45 type network lightning arrester is a lightning protection measure taken by Wenzhou Britec Electric Co., Ltd. to independently develop and manufacture the network system.
User shall not take remove protector of each place fasteners, lest cause damage, affect the normal work.
It is suitable for multi-channel network signal line centralized protection, which is mainly used for lightning (over voltage) protection along network signal lines.
Interface using standard shielded RJ45 head, provide over-voltage protection for your Ethernet based system and network equipment
In view of the characteristics of the network system, the selection of high quality and low capacitance gas discharge tube and other devices has the advantages of small insertion loss, fast response speed, accurate clamping, and low output pressure and so on.


RJ45 High Quality Thunder Arrester Device Product Details:



  BRRJ45L-4L
Test standards IEC61643-21
Nominal voltage                                                           Un 5V
Max.continuous operating d.c.voltage                         Uc 6V
Max.continuous operating a.c.voltage                         Uc 4V
Nominal current                                                             IL 0.5A
C2 Nominal discharge current (8/20us) per line            In 5kA
Voltage protection level [line-line]                                Up ≤30V
Voltage protection level [line-PG]                                 Up ≤500V
Response time [line-line]                                               tA ≤1ns
Response time [line-PG]                                               tA ≤100ns
Operating temperature range                                       Tu -40℃…+80℃
Connection (input/output) RJ45 socket
Bandwidth             30 Mbps
Insertion Loss ≤0.3dB
Enclosure material aluminium alloy
Degree of protection IP20



Dimension:



30Mbps LAN Lightning  RJ45 Thunder Arrestor Device Ethernet Cable 0



RJ45 High Quality Thunder Arrester Device Product features:

1. Multi-functional overvoltage protection, lightning and overpressure are no longer afraid of disasters.
2. Installation and use of convenient novice can also be easy to install
3. Core components are strictly screened, stable performance and reliable operation.

Working principle of product:

During the operation of the equipment, the lightning arrester will play a protective role once the abnormal voltage occurs. When the protected device is running under normal working voltage, the arrester will not work, and it will be regarded as a circuit for the ground. Once the high voltage is present and the insulation of the protected equipment is endangered, the lightning arrester acts immediately and leads the high voltage impact current to the earth, thus limiting the amplitude of the voltage and protecting the insulation of the electrical equipment. When the overvoltage is gone, the arrester is restored to its original state quickly, so that the system can supply electricity normally. The main function of the lightning arrester is to reduce the voltage value of the protected equipment through the action of parallel discharge gap or nonlinear resistance, and to reduce the voltage value of the protected equipment, so as to protect the power equipment.
