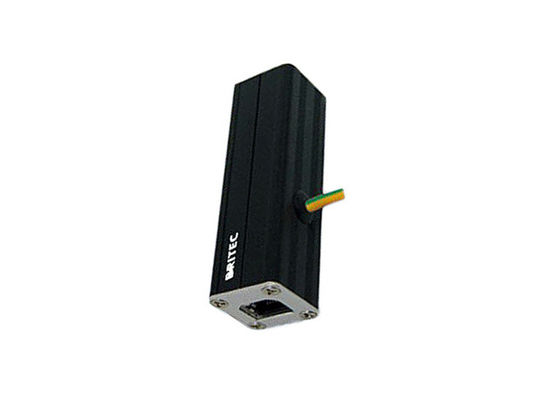

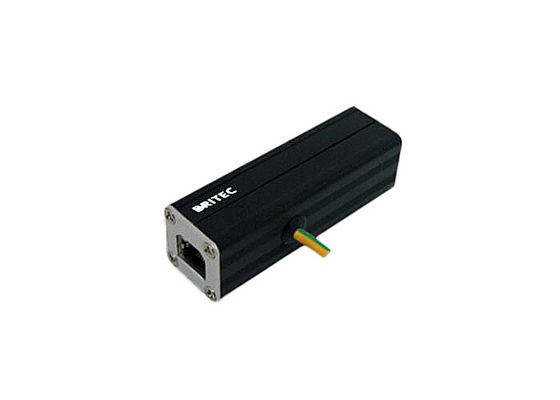

IEC 61643-21 RJ11 Lightning Data Surge Protector with Aluminium Alloy Housing and 5kA Nominal Discharge Current

IEC 61643-21 RJ11 Lightning Data Surge Protector with Aluminium Alloy Housing and 5kA Nominal Discharge Current
IEC 61643-21 RJ11 Lightning Data Surge Protector with Aluminium Alloy Housing and 5kA Nominal Discharge Current IEC 61643-21 RJ11 Lightning Data Surge Protector with Aluminium Alloy Housing and 5kA Nominal Discharge Current

Large Image :  IEC 61643-21 RJ11 Lightning Data Surge Protector with Aluminium Alloy Housing and 5kA Nominal Discharge Current

Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BRRJ11L-2L 1port
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Price: USD 40-80 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: T/T
Supply Ability: 50000 Piece/Pieces Month
Contact Now

IEC 61643-21 RJ11 Lightning Data Surge Protector with Aluminium Alloy Housing and 5kA Nominal Discharge Current

Description
Item Name: RJ11 Surge Protector Port No.: 1 Port
Material: Aluminium Alloy Standards: IEC 61643-21
Line Number: 2 Line Tu: -40℃-80℃
Structure: Protective Gap Application: AC/DC System
Operating Voltage: Low Voltage Nominal Discharge Current: 5kA
Highlight:

Rj11 data surge protector

,

IEC 61643-21 data surge protector

,

aluminium alloy data protector

IEC 61643-21 RJ11 Lightning Data Surge Protector
Applications
  • Discharges transient overvoltages induced in ADSL telephone lines (fax, modem) in accordance with IEC 61643-21
  • Lightning protection for audio signal or digital carrier equipment
  • Protection of communications equipment connected to ADSL lines
  • Suitable for lightning protection of Phone Line, Dedicated Communication Line, SPC Exchange and equipment with RJ11 connectors
  • Protection of telephone pairs
Product Specifications
Specification BRRJ11L-2L 1port
Test Standards IEC 61643-21
Nominal Voltage (Un) 110V
Max Continuous Operating DC Voltage (Uc) 170V
Max Continuous Operating AC Voltage (Uc) 120V
Nominal Current (IL) 0.5A
C2 Nominal Discharge Current (8/20μs) per Line (In) 5kA
Voltage Protection Level [Line-Line] (Up) ≤250V
Voltage Protection Level [Line-PG] (Up) ≤600V
Response Time [Line-Line] (tA) ≤1ns
Response Time [Line-PG] (tA) ≤100ns
Operating Temperature Range (Tu) -40℃ to +80℃
Connection Input/Output RJ11 Socket 2 Line
Bandwidth 10 Mbps
Insertion Loss ≤0.3dB
Enclosure Material Aluminium Alloy
Degree of Protection IP20
Product Dimensions
IEC 61643-21 RJ11 Lightning Data Surge Protector with Aluminium Alloy Housing and 5kA Nominal Discharge Current 0
Key Features
  • Multi-stage surge protection
  • Low insertion loss
  • Quick response time
  • High current capacity
  • Low limited voltage
Installation and Maintenance

a) Connect the SPD in series between the protected device and the signal/power transmission channel.

b) Connect the input terminal (IN) to the signal/power transmission channel, and the output terminal (OUT) to the protected device.

c) Connect the SPD earthing wire to the earthing bus-bar of the lightning protection system.

d) No special maintenance required. If issues arise, remove the SPD from the circuit and test the system. If the system recovers, replace the SPD immediately.

Certifications
IEC 61643-21 RJ11 Lightning Data Surge Protector with Aluminium Alloy Housing and 5kA Nominal Discharge Current 1
Manufacturing Facility
IEC 61643-21 RJ11 Lightning Data Surge Protector with Aluminium Alloy Housing and 5kA Nominal Discharge Current 2
Company Profile

Britec Electric Wenzhou Co., Ltd. was founded in 2003 and has over 21 years of experience in the surge protection device field. We maintain a professional team and experienced staff. Our product range includes AC surge arresters, DC power surge protectors, data surge protection devices, and LED lightning protective devices.

With advanced technology, robust production capacity, and excellent service, our products have gained recognition in domestic and international markets. We are known for delivering high-quality products at competitive prices.

IEC 61643-21 RJ11 Lightning Data Surge Protector with Aluminium Alloy Housing and 5kA Nominal Discharge Current 3
Packaging & Shipping

Packaging: Export standard carton or customized packaging as required.

Shipping: Products are shipped within 15-30 days after payment confirmation.

IEC 61643-21 RJ11 Lightning Data Surge Protector with Aluminium Alloy Housing and 5kA Nominal Discharge Current 4
Frequently Asked Questions
Q1: Are you manufacturer or trader?
A: We are both manufacturer and trader.
Q2: Do you provide samples?
A: Yes, we offer samples for evaluation.
Q3: What are your payment terms?
A: 30% deposit by T/T, with balance payment before shipment.
Q4: How long is your delivery time?
A: Typically 30 working days after receiving deposit. Out-of-stock items depend on production schedule.
Q5: Can we visit your factory?
A: We warmly welcome factory visits.
