| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | CE |
| Model Number: | BR-MD-12 |
| Minimum Order Quantity: | 200 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15-30 days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 50000 Piece/Pieces per Month |
| Place Of Origin: | Zhejiang, China (Mainland) | Type: | TYPE2 P1 |
|---|---|---|---|
| Model Number: | BR-MD-12 | Item Name: | Surge Protection For Data |
| Material: | Polyamide PA 6.6 | Un: | 12V |
| IL: | 0.5A | Tu: | -40℃-80℃ |
| Highlight: | data center surge protection,ac data surge protection |
||

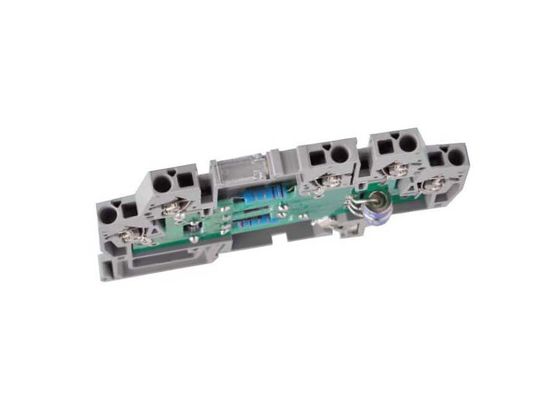

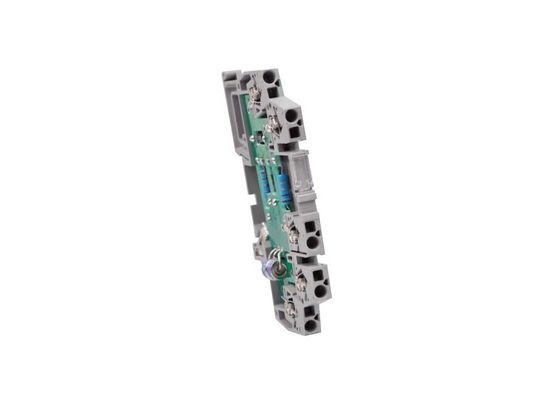

Terminal-type Arrester 12V Surge Protection For Data Interfaces
Characteristics:
Product Details:
| BR-MD-12 | |
| Test standards | IEC 61643-21 |
| SPD class | TYPE2 P1 |
| Nominal voltage Un | 12V |
| Max. continuous operating d.c. voltage Uc | 14V |
| Max. continuous operating a.c. voltage Uc | 9.5V |
| Nominal current at 45℃ IL | 0.5A |
| C2 Total nominal discharge current (8/20us) In | 10kA |
| C2 Nominal discharge current (8/20us) per line In | 5kA |
| Voltage protection level line-line for ln C2 Up | ≤25V |
| Voltage protection level line-PG for ln C2 Up | ≤750V |
| Voltage protection level line-line at 1 kV / us C3 Up | ≤19V |
| Voltage protection level line-PG at 1 kV / us C3 Up | ≤650V |
| Sereies impedance per line | 1.8 Ohm |
| Cut-off frequency line-PG fG | 2.5 MHz |
| Capacitance line-line C | ≤2.4nF |
| Capacitance line-PG C | ≤5pF |
| Operating temperature range Tu | -40℃…+80℃ |
| Cross section of cable | 0.08—2.5mm2 |
| Enclosure material | polyamide PA 6.6 |
| Degree of protection | IP20 |
Technology characteristic:
We have strong cooperation with DHL, TNT, UPS, FedEx and EMS. You also can choose your own
shipping forwarder.
Factory photos:
FAQ:
Q1: I’m so interested in your SPD products, how to contact with you?
A1: You can contact us online or check our website to send e-mail.
Q2: Where can download catalogues of your surge arrester production?
A2: You can download our catalogues on our website, or we can send it to you by email.
Q3: Your lightning protection products are so impressive. How can I become your distributor?
A3: We are so happy and welcome you to be our distributor, and looking forward to your long term
cooperation. Please self-introduce your company or business information, and your detailed plan to
contact with us online or check our website and send by e-mail.
