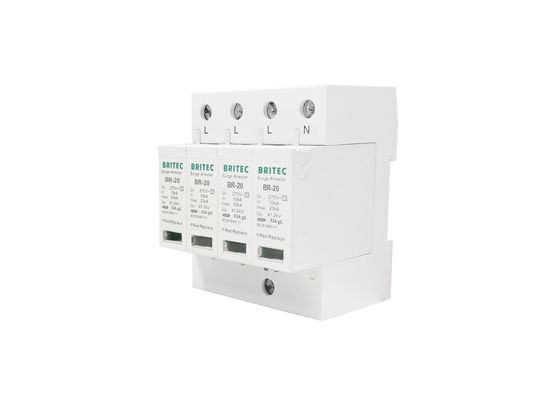

AC Type 2 Three Phase Lightning Proof Surge Protector 20kA / 4P Power Supply SPD

AC Type 2 Three Phase Lightning Proof Surge Protector 20kA / 4P Power Supply SPD

  • AC Type 2 Three Phase Lightning Proof Surge Protector 20kA / 4P Power Supply SPD
  • AC Type 2 Three Phase Lightning Proof Surge Protector 20kA / 4P Power Supply SPD
AC Type 2 Three Phase Lightning Proof Surge Protector 20kA / 4P Power Supply SPD
Product Details:
Place of Origin: China
Model Number: BR-20 275 4p
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Brand Name: BRITEC Item Name: Surge Protector
Place Of Origin: Zhejiang, China (Mainland) Model Numbers: BR-20 275 4p
Safety Standard: IEC61643-1 Fuse: 63A
Color: White Uc: 275v
In: 10kA Usage: Low Voltage
High Light:

lightning surge protector

,

power surge arrester

AC Type 2 Three-phase 20kA/4P Power Supply Surge Protector (SPD) High Quality



AC Type 2 Three Phase Lightning Proof Surge Protector Feature:



Class C SPD.
Pluggable replacement module.
Designed according to IEC 61643-1.
Failure detection indicator.
Standard modular installation.
Large discharge current (max 20kA (8/20μs)).
Remote alarm mode: Optional.



AC Type 2 Three Phase Lightning Proof Surge Protector Technology characteristic



  BR-20 275 4P
Max. continuous operating a.c. voltage                   Uc 275V
Nominal discharge current (8/20us)                          In 10kA
Max. discharge current (8/20us)                           Imax 20kA
Voltage protection level                                            Up ≤1.2kV
Response time                                                          tA ≤25ns
Max. backup fuse 63A
Operating temperature range                                   Tu -40℃—80℃
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material                     Thermal plastic UL94-V0
Dimension 4mods
Test standards IEC61643-1



Dimension:



AC Type 2 Three Phase Lightning Proof Surge Protector 20kA / 4P Power Supply SPD 0



AC Type 2 Three Phase Lightning Proof Surge Protector Application:

For use in AC power supply systems.
Provide protection against surge current resulted from direct or indirect lightning strike or similar surge voltage.
Applied in modular SPD Class II (Class C) for TN-S power supply system.



Certificate:



AC Type 2 Three Phase Lightning Proof Surge Protector 20kA / 4P Power Supply SPD 1



Shipping:



The mode of transportation is selected according to the number of products and customer needs. Express, sea or air.



AC Type 2 Three Phase Lightning Proof Surge Protector 20kA / 4P Power Supply SPD 2



Company Introduction:



Wenzhou Britec Electric Co.,Ltd. is a professional surge protector manufacturer in China. Our company is a professional manufacturer of AC (DC) SPD. We have many years of experience, such as DC surge protection, AC surge protection, data surge protection, LED surge protective and more to meet your different needs.



AC Type 2 Three Phase Lightning Proof Surge Protector 20kA / 4P Power Supply SPD 3



FAQ:



Q1. What's the payment term?
  A. We accept T/T, PAYPAL etc.



Q2. What is the standard of package?
  A. Export standard package or special package with requirement.



Q3. Do you accept OEM business?
  A. We accept OEM with your authorization.



Q4. Which market do you already sell?
  A. We already ship to many Europe, South America, African countries, Middle East, Southeast Asia etc.



Q5. What kind of certificate you have?
  A. We have CE, CB, TUV, ISO90001 etc.
