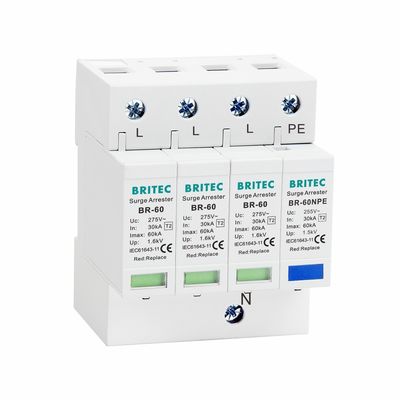

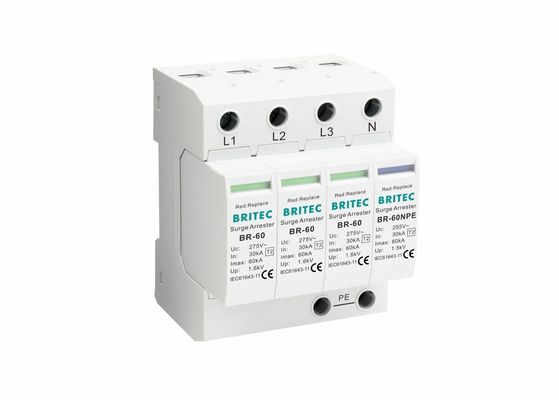

275V 60KA Surge Protection Device with 3+NPE Type for Lightning Protection

275V 60KA Surge Protection Device with 3+NPE Type for Lightning Protection
275V 60KA Surge Protection Device with 3+NPE Type for Lightning Protection 275V 60KA Surge Protection Device with 3+NPE Type for Lightning Protection

Large Image :  275V 60KA Surge Protection Device with 3+NPE Type for Lightning Protection

Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR-60 275 3+1
Document: BR-60 3+1.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 30 days after payment
Payment Terms: L/C,D/A,T/T,Western Union
Supply Ability: 100000 Piece/Pieces Month
Contact Now

275V 60KA Surge Protection Device with 3+NPE Type for Lightning Protection

Description
Keywords: Surge Arrester Function: Lighting Protection
Dimention: 72*90*70mm Maximum Discharging Current: 60KA
Voltage Protection Level: 1.6KV Type: 3+NPE
Protection Modes: L-N, N-PE Protection Rank: C
System: Low Voltage Item Name: Lightning Arrester
Highlight:

lightning protection device

,

lightning surge protector

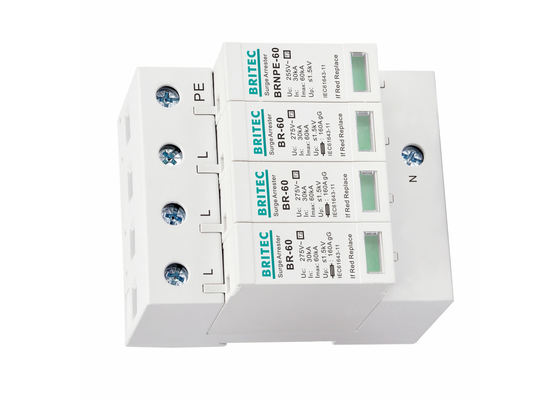

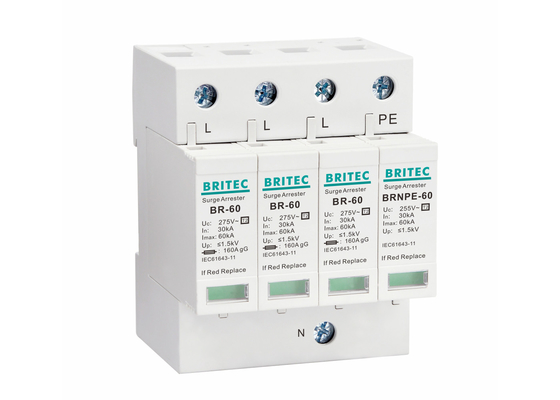

275V 60ka Power Surge Protection Device House Lightning Arrester Protector
Product Features
  • Indoor fixed installation, voltage limited type
  • Designed according to IEC6 1643-1
  • Adopts 35mm standard rail
  • Visible window displays green when operating normally, red when failed
Technical Specifications
Max. continuous operating a.c. voltage Uc 275V
Voltage protection level Up ≤1.6kV
Nominal discharge current (8/20us) In 30kA
Max. discharge current (8/20us) Imax 60kA
Response time tA ≤25ns
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
Max. backup fuse 200A
Operating temperature range Tu -40℃--80℃
Relative Humidity ≤95%RH
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Dimensions
275V 60KA Surge Protection Device with 3+NPE Type for Lightning Protection 0
Applications

Suitable for TT and TN-S power supply system of AC50/60Hz, installed on the joint of LPZ0A zone or LPZ0B and LPZ1 zone, which protects the electric network not shocked by the thunder and lightning.

Certifications
275V 60KA Surge Protection Device with 3+NPE Type for Lightning Protection 1
Company Information

Wenzhou Britec Electric Co.,Ltd professional designs and manufactures highly reliable, industrial grade, TVSS (transient voltage surge supressors) surge protectors that guard sensitive equipment from damage.

275V 60KA Surge Protection Device with 3+NPE Type for Lightning Protection 2
Manufacturing Capabilities

Britec owns advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. Britec team keep developing newest product for our customer, that is why technical level of our products can be reached to the leading level, we also can help customer OEM/ODM.

275V 60KA Surge Protection Device with 3+NPE Type for Lightning Protection 3
Frequently Asked Questions
Q1: Can I get some samples?
A: Yes, sample orders welcomed.
Q2: Can I use my own Logo or design on goods?
A: Yes, customized logo and design on mass production are available.
Q3: What is the delivery time?
A: 7-10 days for samples, 30 days for mass production.
Q4: What is the payment term?
A: T/T, Paypal etc.
Q5: May I visit your factory?
A: Sure, welcome any time.
