Mini Single Phase 275V 60kA Lightning Arrester with Thermoplastic UL94-V0 Surge Protection Device

Mini Single Phase 275V 60kA Lightning Arrester with Thermoplastic UL94-V0 Surge Protection Device
Mini Single Phase 275V 60kA Lightning Arrester with Thermoplastic UL94-V0 Surge Protection Device

Large Image :  Mini Single Phase 275V 60kA Lightning Arrester with Thermoplastic UL94-V0 Surge Protection Device

Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR-60 275 1+1
Document: BR-60 1+1.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 30 days after payment
Payment Terms: L/C,D/A,T/T,Western Union
Supply Ability: 100000 Piece/Pieces Month
Contact Now

Mini Single Phase 275V 60kA Lightning Arrester with Thermoplastic UL94-V0 Surge Protection Device

Description
Material: Thermoplastic UL94-V0 Structure: MOV
Temperature Range: -40℃~+80℃ Connection Diagram: TT And TN System
Standards Compliance: IEC 61643-11 / EN 61643-11 Classification: Class II
Pole: 1P+NPE Applicable Grid: 250V/440VAC（50/60Hz）
Voltage Protection Level: 1.6KV Status Indicator: Green/Red
Highlight:

lightning protection device

,

power surge arrester

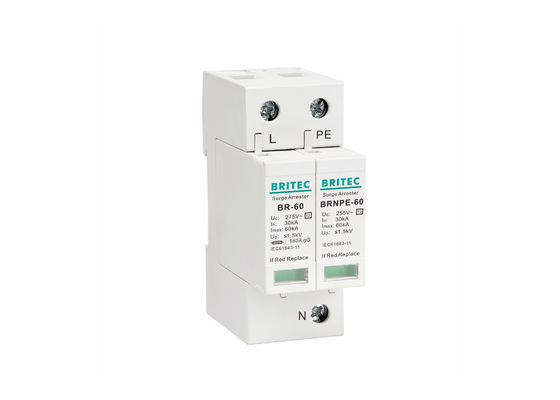

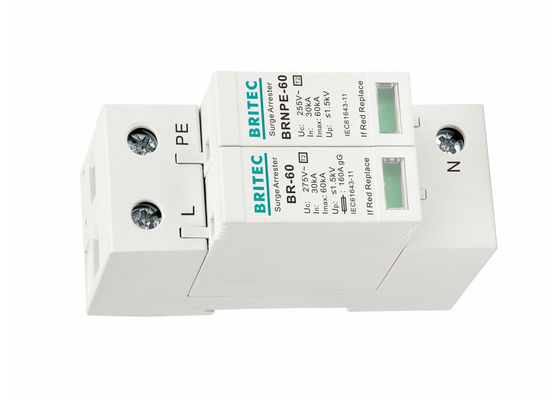

Mini Single Phase Low Voltage Lightning Power Surge Arrester AC275 SPD
Product Features
  • Plug design, easy maintenance
  • Designed according to IEC61643 standard
  • Optional remote signaling monitoring interface
  • Green light in notice window indicates normal; red indicates broken, replacement notice, which is clear and easy distinguished
Technical Characteristics
Model BR-60 275 1+1
Applicable Power Supply System TT and TN-S system
Max. continuous operating a.c. voltage Uc 275V
Nominal discharge current (8/20us) In 30kA
Max. discharge current (8/20us) Imax 60kA
Voltage protection level Up ≤1.6kV
Response time tA ≤25ns
Operating state / fault indication green / red
Remote Alarm Function Optional
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Degree of protection IP20
Operating temperature range Tu -40℃--80℃
Relative Humidity ≤95%RH
Dimensions
Mini Single Phase 275V 60kA Lightning Arrester with Thermoplastic UL94-V0 Surge Protection Device 0
Applications

Applied to equipotential bonding of the main low voltage distribution boxes in the building, providing overvoltage protection arising from the class C lightning strike to power supply system or disoperation.

Company Information

Established in 2003, Britec Electric Wenzhou Co., Ltd. concentrates on new technology of lightning protection, research and development on new products, production and service. Company covers four product series: AC lightning protection products, DC power line surge protection products, signal line surge protection products, and LED series surge protection products, with more than 100 varieties of products. Products are CE, CB and TUV certified. And company has passed through the ISO9001 International Quality Management System.

Mini Single Phase 275V 60kA Lightning Arrester with Thermoplastic UL94-V0 Surge Protection Device 1
Payment Terms
  • 100% in advance (Contract Value less than $5000)
  • 30% in advance, the balance payment should be paid before shipment
Mini Single Phase 275V 60kA Lightning Arrester with Thermoplastic UL94-V0 Surge Protection Device 2
Delivery Time

20 working days after receiving deposit (depend on the quantity).
