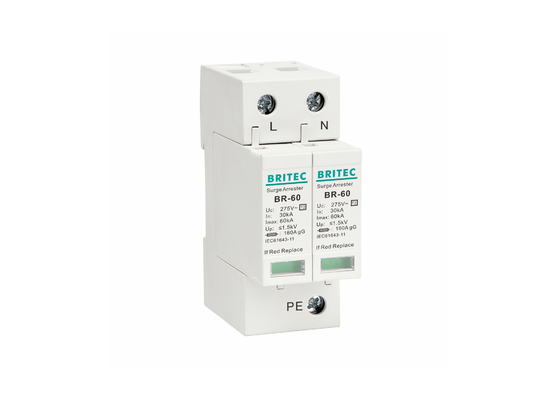

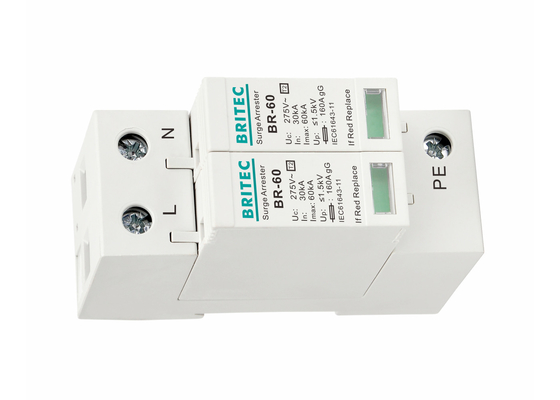

60ka Power Lightning Surge Arrester Single Phase AC Electrical Surge Protector

Large Image : 60ka Power Lightning Surge Arrester Single Phase AC Electrical Surge Protector

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Model Number:	BR-60 275 2P

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

60ka Power Lightning Surge Arrester Single Phase AC Electrical Surge Protector

Description

Item Name:	Surge Arrester	Place Of Origin:	Zhejiang, China (Mainland)
Brand Name:	BRITEC	Model Numbers:	BR-60 275 2p
Safety Standard:	IEC61643-1	Pole Number:	2P
Uc:	275v	In:	30kA
Imax:	60kA	Up:	≤1.5kv
Keyword:	Lightning Protection	Keyword:	Lightning Protection
Highlight:	lightning protection device , power surge arrester

60ka Power Lightning Surge Arrester Single Phase AC Electrical Surge Protector

60ka Power Lightning Surge Arrester Features:

• Pluggable module --- convenient for maintenance.

• High discharge current --- Imax 60kA per pole.

• Indication window for clear display of SPD status --- each pole with one indication window.

• Narrow size surge arrester, special design for saving installation space --- width 18mm/pole, single phase.

60ka Power Lightning Surge Arrester Technology characteristic:

	BR-60 275 2P
SPD classification according to IEC61643-11	Class II
Max. continuous operating a.c. voltage Uc	275V
Voltage protection level Up	≤1.5kV
Max. discharge current (8/20us) Imax	60kA
Nominal discharge current (8/20us) In	30kA
Response time tA	≤25ns
Test Stardard	IEC61643-1
Operating temperature range Tu	-40℃—80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0

Dimension:

60ka Power Lightning Surge Arrester Application:

• Suitably used in the TN-S power supply system of AC 50/60HZ.

• Suitable for system power protection, such as power distribution cabinet, switch cabinet, AC distribution board etc.

Company Information:

Wenzhou Britec Electric Co.,Ltd. established in 2003 located in Yueqing City, Zhejiang Province. We are an enterprise focusing on SPD production, sales, and R&D. Our company currently provides up to 100 kinds of surge protective Device SPD. Such as: AC Power Surge Protection Device SPD, DC Surge protective Device, Data surge protection, LED lightning protection etc. We also provide surge protectors

according to customers' requirements.

Shipping:

Shipping by air, sea, express or upon clients' demands.

FAQ:

Q1: How long is your products warranty?
A: The warranty period of our products is 2 Years.

Q2: What is the service offered by company?
A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement. We also have the sales team to offer good service from pre-sale to after-sale.

Q3: Are you trading company or manufacturer?
A: We are factory.
