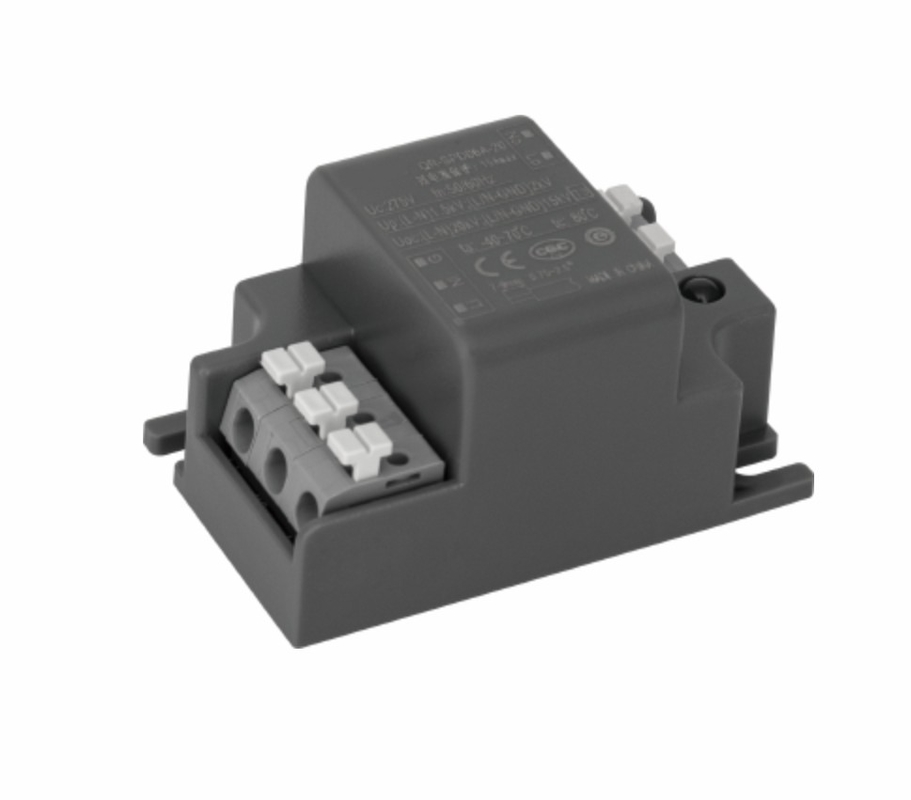

SPD06A-20 Surge Protectors for LED 20kv 10kv T3 led streetlight surge protector

Product Description:

The LED Surge Protection Device, also known as LED SPD, is a crucial component for ensuring the reliable operation and longevity of LED lighting systems. Designed to safeguard LED fixtures from voltage surges and transient disturbances, this surge protector is a cost-effective solution for protecting your valuable LED investments.

Operating Temperature: The LED SPD is engineered to withstand extreme temperatures, with an operating range of -40℃ to +85℃. This wide temperature tolerance ensures that the surge protection device remains effective in various environmental conditions, making it suitable for both indoor and outdoor LED lighting applications.

Protection Level: With a protection level of ≤2.0kV, the LED SPD offers robust protection against voltage surges, helping to prevent damage to LED fixtures caused by transient voltage spikes. By limiting the voltage to a safe threshold, this surge protector ensures the uninterrupted operation of your LED lighting system.

Open-Circuit Voltage: The LED Surge Protection Device features an open-circuit voltage rating of 20kV, allowing it to effectively divert high-voltage surges away from connected LED fixtures. This capability helps to extend the lifespan of LED lights and reduces the risk of premature failure due to voltage fluctuations.

Max. Continuous Operating A.C. Voltage: With a maximum continuous operating A.C. voltage of 275V, the LED SPD is designed to handle the typical voltage levels found in LED lighting installations. By providing reliable protection within this voltage range, this surge protector helps to maintain the stability and performance of LED fixtures.

Max. Discharge Current: The LED Surge Protection Device offers a maximum discharge current of 10kA, allowing it to safely dissipate high-energy surges and protect LED lighting systems from damage. This capability ensures that the surge protector can effectively handle sudden voltage spikes without compromising the safety or functionality of the connected LED fixtures.

When it comes to surge protectors for LED lighting, the LED Surge Protection Device stands out as a dependable and efficient solution for safeguarding your LED investments. With its wide operating temperature range, high protection level, and robust voltage surge handling capabilities, this surge protector provides the peace of mind that your LED lighting system is well-protected against electrical disturbances.

Features:

• Product Name: LED Surge Protection Device
• Warranty: 5 Years
• Response Time: ≤25ns
• Operating Temperature: -40℃~+85℃
• Max. continuous operating a.c. voltage: 275V

Technical Parameters:

Applications:

BRITEC LED Surge Protection Device Model SPD06A-20 is a high-quality surge protector designed specifically for LED lighting applications. Made in China, this product is ideal for various occasions and scenarios where LED lighting systems are utilized. Below are the key product attributes and the application occasions and scenarios:

• Brand Name: BRITEC
• Model Number: SPD06A-20
• Place of Origin: China
• Minimum Order Quantity: 10 PCS
• Packaging Details: Carton
• Delivery Time: 15 days after receipt of deposit
• Payment Terms: TT
• Supply Ability: 1000000 per month
• Max. Continuous Operating A.C. Voltage: 275V
• Max. Discharge Current: 10kA
• Protection Class: Class II+Class III
• Warranty: 5 Years
• Open-Circuit Voltage: 20kV

1. LED SPD for Commercial Buildings: Install the LED surge protector in commercial buildings to safeguard LED lighting systems from power surges and fluctuations.

2. LED Driver Surge Protector for Outdoor Lighting: Protect outdoor LED lighting fixtures, such as street lights and garden lights, from lightning strikes and electrical disturbances.

3. Surge Protectors for LED Streetlights: Use the surge protector with LED streetlights to ensure continuous operation and longevity of the lighting infrastructure in urban areas.

4. LED SPD for Industrial Facilities: Implement the surge protection device in industrial facilities where LED high bays and industrial lighting are installed to prevent damage due to electrical surges.

5. Surge Protectors for LED Stadium Lighting: Safeguard LED stadium lights from power fluctuations during sporting events and ensure uninterrupted lighting performance.

6. LED Driver Surge Protector for Residential Lighting: Secure residential LED lighting systems in homes, apartments, and condominiums against unexpected power surges.

With its advanced features and durability, the BRITEC LED Surge Protection Device Model SPD06A-20 is a reliable solution for various LED lighting applications, offering peace of mind and protection for LED systems.

Customization:

Enhance your LED SPD device with our Product Customization Services:

- Brand Name: BRITEC

- Model Number: SPD06A-20

- Place of Origin: China

- Minimum Order Quantity: 10 PCS

- Packaging Details: carton

- Delivery Time: 15 days after receipt of deposit

- Payment Terms: TT

- Supply Ability: 1000000 per month

- Nominal current: 10kA

- Warranty: 5 Years

- Max. continuous operating a.c. voltage: 275V

- Protection Class: Class II+ Class III

- Humidity: ≤95%RH

Support and Services:

The LED Surge Protection Device provides advanced technical support and services to ensure optimal performance and protection for your LED lighting systems. Our team of experts is available to assist with installation, troubleshooting, and maintenance to help you maximize the lifespan and efficiency of your LED lights. We offer comprehensive training programs and resources to educate users on the proper use and care of the surge protection device, ensuring long-term reliability and performance.
