| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV/CB/CE |
| Model Number: | BR-25GR 4P |
| Minimum Order Quantity: | 5 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Item Name: | 3 Phase Surge Protection Device | Type: | Ac Type1 Thunder Lightning Arrester |
|---|---|---|---|
| Uc: | 275V | Iimp: | 25kA |
| Installation: | Din Rail 35mm | Imax: | 100kA |
| Standard: | IEC/EN 61643-11 | Warranty: | 5 Years |
| Pole: | 4P | Material: | Thermoplastic UL94-VO |
| Protection: | IP20 | Tu: | -40℃-80℃ |

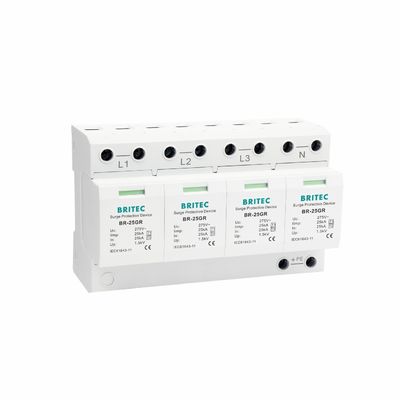

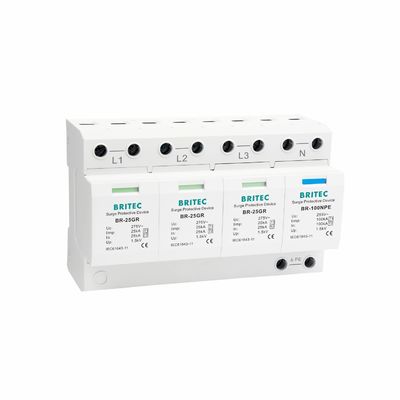

Type 1 4P Surge Protection Device thunder lightning arrester
thunder lightning arrester Product Description:
Iimp by pole: 25 kA
Total Iimp: up to 100 kA
3-Phase+Neutral AC network
BR-25GR compliant with EN/IEC 61643-11 standards, tested and specified according to both T1 and T2 test classes.
thunder lightning arrester Technology characteristic:
| Specification | BR-25GR 4P |
| Item name | Surge Arrester |
| SPD dassification according to EN61643-11 | Type 1 + Type 2 |
| SPD dassification according to EN61643-11 | Class I + Class II |
|
Max continuous 0perating a.c. voltage Uc |
275V |
| Lightning impulse current (10/350µs) limp | 25kA |
| Norminal discharge current (8/20µs) In | 25kA |
| Maximum discharge current (8/20µs) Imax | 100kA |
| Voltage protection level Up | ≤2.3kV |
| Follow current extinguishing capability a.c. lifi | 5kA rms |
| Max. backup fuse | 315A gG |
| Response time tA | ≤100ns |
| Operating temperature range Tu | -40℃—80℃ |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermoplastic UL94-V0 |
| Degree of protection | IP20 |
· For electrical installations.
· Suitable for lightning protection of power supply system in areas with high risk of lightning strike (LPZ0B or interface between LPZ0B and LPZ1).
· Can handle lightning currents and protect sensitive electronic equipment.
· Application-optimized and prewired combined lightning current.
· Particularly useful in a high lightning density area where the risk of heavy surge current or even direct strike is high (e.g.: buildings equipped with lightning rods).
According to different lightning protection areas, AC Surge protective device is divided into four categories: Type 1, Type 2, Type 3 and Type 1+2 Surge protective devices.
Q1: Selection of surge protector
Al: The grading of the surge protector (commonly known as lightning protection) Is assessed according to the IEC61024 subdivision lightning protection theory, which is installed at the junction of the partition. Technical requirements and functions differ. The first-stage lightning protection device is installed between the 0-1 zone, high for the flow requirement, the minimum requirement of EN 61643-11 / IEC 61643-11 is 25 ka (10/350), and the second and third levels are installed between the 1-2 and 2-3 zones, mainly to suppress the overvoltage.
Q2: Are you a lightning surge protectors factory or lightning surge protectors trading company?
A2: We are a lightning surge protectors manufacturer.
Q3: Warranty and services:
A3:1. Warranty 5 years
2. lightning surge protectors products and accessories have been tested 3 times before ship out.
3. We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.
Q4: How can I get some lightning surge protectors samples?
A4: We are honored to offer you lightning surge protectors samples, pis contact our staff, and leave detailed contact information, we promise to keep your information confidential.
Q5: Is the sample available and free?
AS: Sample is available, but the sample cost should be payable by you. The cost of the sample will be refunded after further order.
Q6: Do you accept customized order?
A6: Yes, we do.
Q7: What’s the delivery time?
A7: It usually takes 7-15days after confirming payment, but a specific time should be based on the order quantity.
