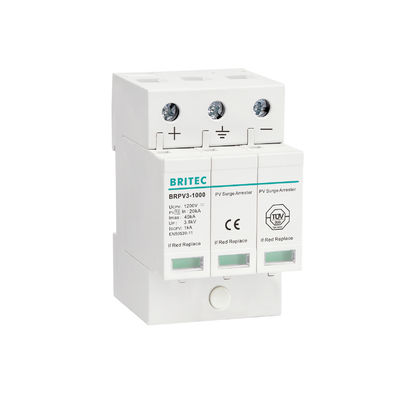

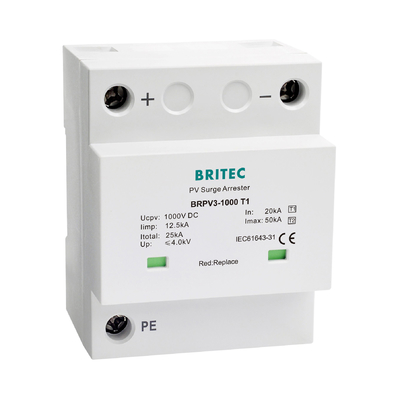

BRPV3-1000 40KA DC SPD Surge Protection Device Solar Photovoltaic Lightning Arrester surge protection t1 t2 dc

BRPV3-1000 40KA DC SPD Surge Protection Device Solar Photovoltaic Lightning Arrester surge protection t1 t2 dc

  • BRPV3-1000 40KA DC SPD Surge Protection Device Solar Photovoltaic Lightning Arrester surge protection t1 t2 dc
  • BRPV3-1000 40KA DC SPD Surge Protection Device Solar Photovoltaic Lightning Arrester surge protection t1 t2 dc
BRPV3-1000 40KA DC SPD Surge Protection Device Solar Photovoltaic Lightning Arrester surge protection t1 t2 dc
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV/CB/CE/ROHS/ISO9001
Model Number: BRPV3-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: carton
Delivery Time: 15 days after receipt of deposit
Payment Terms: TT
Supply Ability: 1000000 per month
Contact Now
Detailed Product Description
Enclosure Material: Thermoplastic UL94-V0 Degree Of Protection: IP20
Cross-section Area (Max.): 35mm² Response Time: ≤25ns
Operating State: Green / Red Cross-section Area (Min.): 4mm²
Product Name: DC Surge Protection Device Storage Temperature Range: -40℃~+85℃
High Light:

40KA DC SPD surge protection device

,

IP20 SPD surge protection device

,

SPD Solar Photovoltaic Lightning Arrester

type 2 lightning arrester   Product Description:

DC Surge Protection Device is designed to protect your equipment from overvoltage caused by lightening or other external events. This device is built with a Voltage Protection Level ≤4.0kV, a Thermoplastic UL94-V0 enclosure material, and an Operating Temperature Range of -40℃ to +85℃. It also features a Cross-section area (Max.) of 35mm² and operating state of Green / Red, ensuring a secure and reliable protection solution for your application. Our 1000v surge arrester offers superior protection against lightening strikes and other forms of electrical surges, making it an ideal surge Protection Device for your devices.



type 2 lightning arrester Features:

  • Product Name: DC Surge Protection Device
  • Cross-section area (Max.): 35mm²
  • Cross-section area (Min.): 4mm²
  • Enclosure material: Thermoplastic UL94-V0
  • Rated Voltage: DC
  • Maximum Discharge Current: 40KA(8/20μs)
  • PV Surge Protector
  • Solar Surge Protective Device
  • 1000V Surge Arrester
BRPV3-1000 40KA DC SPD Surge Protection Device Solar Photovoltaic Lightning Arrester surge protection t1 t2 dc 0

type 2 lightning arrester Technical Parameters:

Property Value
Operating Temperature Range -40℃~+85℃
Degree of protection IP20
Humidity Range ≤95%RH
Cross-section area (Min.) 4mm²
Maximum Discharge Current 40KA(8/20μs)
Maximum Continuous Operating Voltage ≤DC 1000V
Rated Voltage DC
Operating state Green / Red
Cross-section area (Max.) 35mm²
Enclosure material Thermoplastic UL94-V0


type 2 lightning arrester Applications:

BRITEC BRPV3-1000 DC Surge Protection Device is a professional solar surge protective device designed and manufactured in China. It is certified with TUV/CB/CE/ROHS/ISO9001, and can be ordered with a minimum quantity of 1 PCS. The device is packed in a carton and can be delivered within 15 days after the receipt of payment. BRITEC has the monthly supply capacity of 1000000 units.

The BRITEC BRPV3-1000 DC Surge Protection Device can handle a maximum discharge current of 40KA(8/20μs) and has a minimum cross-section area of 4mm². It operates with a rated voltage of DC and a response time of ≤25ns, and its operating temperature range is -40℃~+85℃.



type 2 lightning arrester Customization:

BRITEC BRPV3-1000 DC Surge Protection Device

Our BRITEC BRPV3-1000 DC Surge Protection Device is a lightening protector designed to protect your DC systems from the damaging effects of lightning and other overvoltage transients.

It has the following specifications:

  • Brand Name: BRITEC
  • Model Number: BRPV3-1000
  • Place of Origin: China
  • Certification: TUV/CB/CE/ROHS/ISO9001
  • Minimum Order Quantity: 1PCS
  • Packaging Details: Carton
  • Delivery Time: 15 days after receipt of deposit
  • Payment Terms: TT
  • Supply Ability: 1000000 per month
  • Maximum Continuous Operating Voltage: ≤DC 1000V
  • Humidity Range: ≤95%RH
  • Storage Temperature Range: -40℃~+85℃
  • Operating Temperature Range: -40℃~+85℃
  • Cross-section area (Min.): 4mm²

Our BRITEC BRPV3-1000 DC Surge Protection Device is designed to give your system reliable surge protection at an affordable price. Contact us now to learn more about this surge protection device!



type 2 lightning arrester Support and Services:

We provide comprehensive technical support and service for our DC Surge Protection Device. Our dedicated team of experts is available to answer any questions you may have about installation, operation, troubleshooting and maintenance of the device. We also offer on-site technical assistance and training to ensure that you are able to utilize the device to its fullest potential. In addition, we provide detailed user manuals and online tutorials to help you learn the necessary skills to operate the device efficiently.
