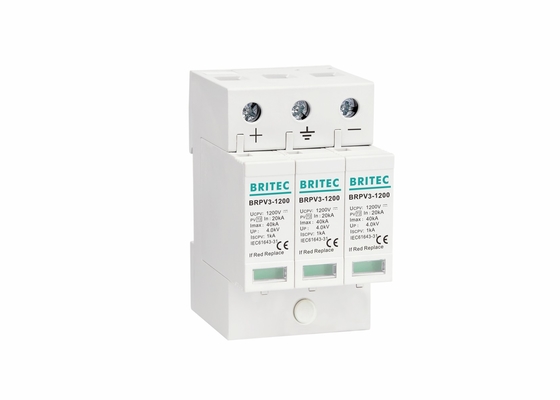

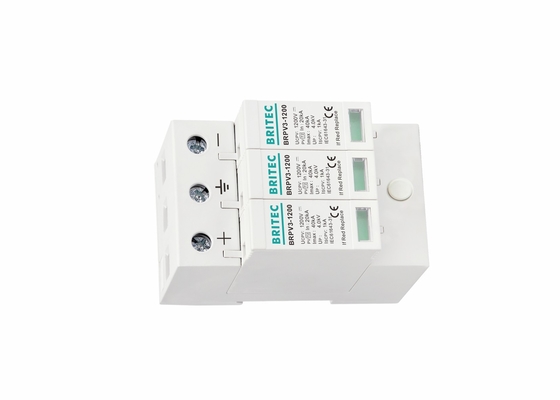

1200 V Power Dc Surge Protector Solar 3P T2 Lightning Arrester PV SPD

1200 V Power Dc Surge Protector Solar 3P T2 Lightning Arrester PV SPD

  • 1200 V Power Dc Surge Protector Solar 3P T2 Lightning Arrester PV SPD
  • 1200 V Power Dc Surge Protector Solar 3P T2 Lightning Arrester PV SPD
1200 V Power Dc Surge Protector Solar 3P T2 Lightning Arrester PV SPD
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BRPV3-1200
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Place Of Origin: Zhejiang, China (Mainland) Type: DC Power Surge Protector
Model Number: BRPV3-1200 Material: Thermoplastic
Ucpv: 1200V Dc In: 20kA
Imax: 40kA Up: ≤4.0kV
Indicator: Green Indicates Normal State And Red Indicates Failure Protection: IP20
Highlight:

12v dc surge protector

,

dc surge protector solar

Solar 1200V DC Power Surge Protector 3P T2 Lightning Arrester PV SPD



1200 V Power Dc Surge Protector Characteristic:



• Discharge current In: 20kA / Imax: 40kA.
• Remote signal: optional.
• IEC 61643-31 compliance.
• With the MOV (Metal Oxide Varistor).
• Consisting of a base part and plug-in protection modules.
• Insure all protections (between + and-, + and Ground, - and Ground).
• BRPV3-1200 is a DC Surge Protection Device (SPD) for medium risk DC power applications up to 1200Vdc.
• Combined disconnection and short-circuiting device with safe electrical isolation in the protection module prevents fire damage resulting from d.c. switching arcs.


1200 V Power Dc Surge Protector Product detail:


3 Mod BRPV3-1200
SPD classification according to EN61643-31 Type 2
SPD classification according to IEC61643-31 Class II
Max. continuous operating dc voltage                       Ucpv 1200V
Nominal discharge current (8/20us)                                In 20kA
Max. discharge current (8/20us)                                 Imax 40kA
Voltage protection level [(DC+/DC-)→PE]                     Up ≤4.0kV
Response time                                                                tA ≤25ns
Operating temperature range                                         Tu -40℃-80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material                  Thermoplastic UL94-V0
Degree of protection IP20



Dimension:



1200 V Power Dc Surge Protector Solar 3P T2 Lightning Arrester PV SPD 0



1200 V Power Dc Surge Protector Application:

• For use in Photovoltaic applications.
• Provides protection against the direct and indirect effects of lightning.
• Protect against lightning surge voltages in photovoltaic power supply networks.
• Suitable for the new energy solar photovoltaic power generation systems or other dc power supply system of lightning protection, the maximum continuous operating voltage DC 1200v.

1200 V Power Dc Surge Protector Installation:

• Installation position in the dc power supply system.
• These units must be installed in parallel on the DC networks to be protected and provide common and differential modes protection.



About us:



Wenzhou Britec Electric Co., Ltd is ISO and CE certificated manufacturer, we are suppliers of SPDs. We are specialized in surge protection device. We can offer lightning arrester with specifications and uses according to clients' requirements. Our company has carried out a completed management system of production, scientific research and sales service. Our products are widely used in various electric power stations, electric power plants, factories and electric power systems. Warmly welcome worldwide customers to cooperate with us. You will be deserved with the high qualified products, favorable price, on-time delivery and our best service.



1200 V Power Dc Surge Protector Solar 3P T2 Lightning Arrester PV SPD 1



Certificate:



1200 V Power Dc Surge Protector Solar 3P T2 Lightning Arrester PV SPD 2



Packing&Shipping:


• Packaging Details: standard cartons.
• Port: Ningbo/Shanghai.

• Delivery Time: 7-10 days after payment for sample order, 15-30 days after payment for big order.



1200 V Power Dc Surge Protector Solar 3P T2 Lightning Arrester PV SPD 3



FAQ:


Q1. What advantages do you have?

  A: We have good quality products, excellent technical support and service.



Q2. How long is the quality gurantee?

  A: Product quality warranty is two years.



Q3. What is the delivery time?

  A: Normally, it is about 20 days after payment. It is needs to be negotiated to special requirement orders.



Q4. How about the quality of your product?

  A: Before shipping out, we will check for quality, including check the function of products, the appearance, the packing.



Q5. How do you keeping our long-term business and good relationship?

  A: We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
