| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV/CB/CE/ROHS/ISO9001 |
| Model Number: | BR-40 48 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Packaging Details: | carton |
| Delivery Time: | 15 days after receipt of deposit |
| Payment Terms: | TT |
| Supply Ability: | 1000000 per month |
| Enclosure Material: | Thermoplastic UL94-V0 | Operating Temperature Range: | -40℃~+85℃ |
|---|---|---|---|
| Storage Temperature Range: | -40℃~+85℃ | Response Time: | ≤25ns |
| Voltage Protection Level: | ＜800V | Maximum Discharge Current: | 40kA(8/20μs) |
| Cross-section Area (Max.): | 35mm² | Operating Voltage: | DC 48V |
| Highlight: | BR-40 48 DC SPD,Dc Surge Suppressor 40kA 48v,Thermoplastic Pv Surge Arrester |
||

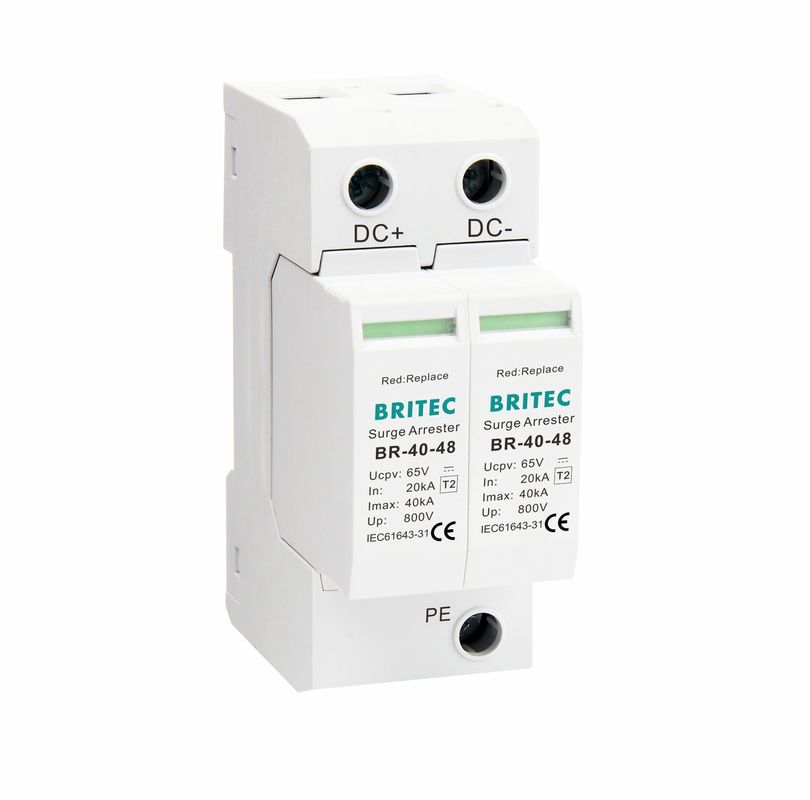

48v 40ka DC Surge Arrester Type II Power Lightning Arrester Product detail:
| 2 Mod | BR-40 48 |
| SPD classification according to IEC61643-31 | Class II |
| Operating Voltage Un | DC 48V |
| Max. Continuous Operating Voltage Uc | DC 65V |
| Nominal discharge current (8/20us) In | 20kA |
| Max. discharge current (8/20us) Imax | 40kA |
| Voltage protection level Up | ＜800V |
| Response time tA | ≤25ns |
| Operating temperature range Tu | -40℃-80℃ |
| Operating state / fault indication | green / red |
| Technology | MOV |
| Format | Plug-in modular |
| Protection Mode | +/PE,-/PE |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermoplastic UL94-V0 |
| Degree of protection | IP20 |
| Standards compliance | IEC 61643-31 / EN 61643-31 / UL1449 ed.4/GB 18802.1 |
Dimension:
This Arrester is used to protect the inverter and solar panels
Able to Withstand voltage 65VDC
With a nominal discharge current 20KA
And also a total discharge current 40KA
With IP20 protection
International standards CE and TUV
Able to withstand temperature of -40 to 80 ° C
