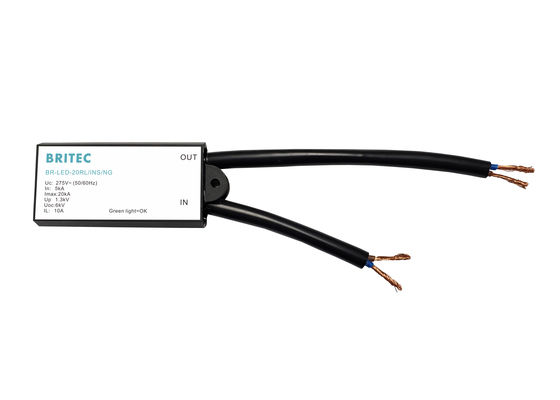

275v LED Surge Protective Device Type 3 6KV 20KA Light Street Protector

Large Image : 275v LED Surge Protective Device Type 3 6KV 20KA Light Street Protector

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Model Number:	BR-LED-20RL/INS/NG

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

275v LED Surge Protective Device Type 3 6KV 20KA Light Street Protector

Description

Nominal Operating Voltage:	230V	Nominal Discharge Current:	5kA
Protection Level(Up):	≤1.3kV	Size:	13.537.681mm
Item Name::	LED Surge Protection	Type:	Type 2+3
Material::	Thermal Plastic UL94-V0	Uc:	AC 275V
Imax:	20kA	Standard::	IEC61643-11 / EN 61643-11
Keyword:	Lightning Protection
Highlight:	275v Surge Protective Device , LED Surge Protector Type3 , Surge 20KA Light Street Protector

6KV 20KA 275v LED Surge Protective Device Light Street Surge Protector Wholesale

6KV 20KA 275v LED Surge Protective Device Light Street Surge Protector Product Description:

• LED Light Power SPD: BR-LED-20RL/INS/NG designed for protecting LED Driver and could be connected perfectly with its input port, sealed enclosure, waterproof and dustproof, IP65 protection grade, belongs to Class II+III power SPD.

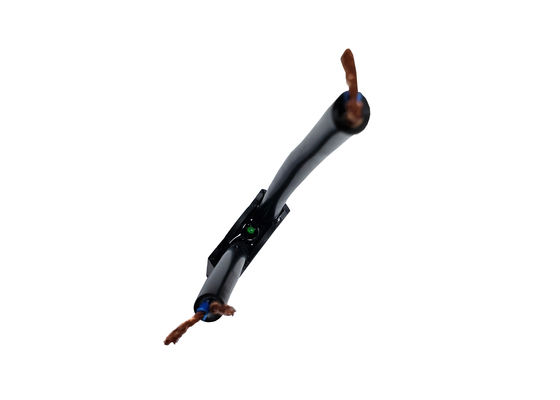

• Build-in LED Indication saves maintenance time by identifying replacement need

• The product size small, 81 × 37.6× 13.5mm (includes mounting holes).

• IEC 61643-11/EN 61643-11 recognized

• The maximum discharge current is 20kA, nominal discharge current is 5kA, the level of protection is below 1.3kV, especially good for protecting LED Street lights form lightning surge damage.

6KV 20KA 275v LED Surge Protective Device Light Street Surge Protector Product Details:

	BR-LED-20RL/INS/NG
SPD classification according to EN61643-11	Type 2+3
SPD classification according to IEC 61643-11	Class II+III
Nominal a.c. voltage Un	230V
Max. continuous operating a.c. voltage Uc	275V
Nominal discharge current (8/20us) In	5kA
Max. discharge current (8/20us) Imax	20kA
Nominal current IL	10A
Voltage protection level Up	≤1.3kV
Combined impulse Uoc	6kV
Response time tA	≤100ns
Operating temperature range Tu	-40℃—80℃
Operating state / fault indication	green/non
Section of cables	1.5mm²
Length of cables	110mm/150mm
Degree of protection	IP65

Dimension:

275v LED Surge Protective Device Type 3 6KV 20KA Light Street Protector 0

6KV 20KA 275v LED Surge Protective Device Light Street Surge Protector Applications:

• Outdoor and Commercial LED Lighting

• Roadway lighting

• Traffic lighting

• Digital signage

• Wall wash lighting

• Parking garage lighting

• Flood lighting

• Tunnel lighting

• Street lighting

Why need LED surge protector?

LED lamp posts can be directly struck by lightning since they are usually in an exposed position. In some cases, this can affect entire streets, since the lights are interconnected within the power grid. If there are no suitable protective devices in place, the lightning current quickly can be dispersed across the entire installation and incur significant damage. Accordingly, suitable surge protection should be used as protection against damage from lightning or surge voltages.

Company information:

Wenzhou Britec Electric Co., Ltd., founded in 2003, is located in Yueqing city, Zhejiang, China. The enterpriseis dedicated in research and production of surge protection, which is always in with high-tech driven, customer requirement guided, professional, concentrate, supplying high quality, cost-efficient products. Now products are well-received in domestic and oversea market, product quality and after-sales service has got highly praise from customers.

275v LED Surge Protective Device Type 3 6KV 20KA Light Street Protector 1

Workshop:

275v LED Surge Protective Device Type 3 6KV 20KA Light Street Protector 2

FAQ:

Q1. What Certificates Have You Got?
A1: Our company is verified by ISO9001, and products approved by CE, CB, TUV etc.

Q2. What is your terms of payment?
A2: T/T 30% as deposit, 70% before delivery.

Q3. What is your terms of delivery?
A3: EXW, FOB, CFR, CIF.

Q4. How about your delivery time?
A4: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A5: Yes, we could produce by your samples or technical drawings. We are power in R&D.
