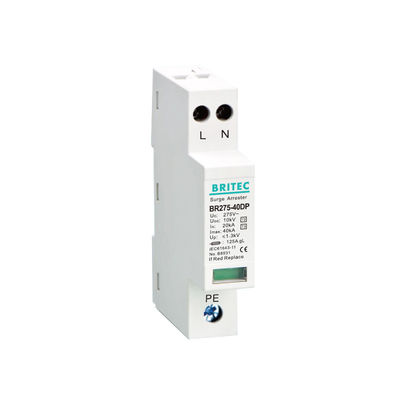

BR-40DP 2P Electric Surge Protective Device Type 3 Spd 275V 40kA Lightning Protection

BR-40DP 2P Electric Surge Protective Device Type 3 Spd 275V 40kA Lightning Protection

  • BR-40DP 2P Electric Surge Protective Device Type 3 Spd 275V 40kA Lightning Protection
BR-40DP 2P Electric Surge Protective Device Type 3 Spd 275V 40kA Lightning Protection
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE,TUV
Model Number: BR-40DP 2P
Payment & Shipping Terms:
Minimum Order Quantity: 10 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 10-20 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Test Standards: IEC 61643-11 / EN61643-11 Uc: 275V
In: 20kA Imax: 40kA
Certificate: TUV,CE,CB,IEC Country Of Origin: China
Mounting On: 35mm Din Rail Version: Plug-in
MOQ: 1PCS Color: White
Degree Of Protection: IP 20
Highlight:

Electric Surge Protective Device Type3

,

2P Spd Surge Protective Device Type3

,

275V Type3 Surge Protective Device


Type 3 Electric Surge Protective 275V 40kA Lightning Surge Protection Devices

Electric Surge Protective Device :


AC/DC SPD Packing Details:

2P  SPD:60 PCS PER CARTON

3P  SPD:42 PCS PER CARTON



AC/DC SPD Delivery Time:

7 days after confirming order,detail delivery date should be decided according to production season and order quantity.



AC/DC SPD Shipping:

1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!


Electric Surge Protective Device Product Details:


  BR 275 40DP 2P
SPD classification according to EN61643-11 Type 2 + Type 3
SPD classification according to IEC61643-11 Class II + Class III
Max. continuous operating a.c. voltage                   Uc 275V
Nominal discharge current (8/20us)                        In 20kA
Max. discharge current(8/20μs)                          Imax 40kA
Voltage protection level                                              Up ≤1.3kV
Voltage protection level 5kA                                      Up ≤1.0kV
Combined impulse                                               Uoc 10kV
Max. backup fuse 125A gG
Response time                                                            tA ≤25ns
Operating temperature range                                 Tu -40℃-80℃
Operating state / fault indication    green / red
Cross-section area (Min.) 2.5mm2
Cross-section area (Max.) 16mm2
For mounting on 35mm Din rail
Enclosure material            Thermoplastic UL94-V0
Degree of protection IP20
Order Code B8241
Order Code (With remote signaling) B8242


Dimension:

BR-40DP 2P Electric Surge Protective Device Type 3 Spd 275V 40kA Lightning Protection 0
BR-40DP 2P Electric Surge Protective Device Type 3 Spd 275V 40kA Lightning Protection 1


Type 2 AC Surge Protector

In: 20 kA

Imax: 40 kA

Pluggable module for each phase

Remote signaling (option )

IEC 61643-11, EN 61643-11 certified



Electric Surge Protective Device Advantage:


• Advanced production process and beautiful appearance.
• Compact DIN rail design.
• High discharge current performance.
• Long service life.
• Visual inspection window.


Our Services:


• 20 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.


What is surge arrester?


In the equipment system, the inductive or capacitive coupling voltage is caused by the lightning shock and the switching operation of the upstream power supply system. Therefore, the surge may damage the photovoltaic modules and inverters and other devices. This will cause serious consequences for the operation of the system. The surge protector is a power defense specially designed for this purpose.


Working principle:

Once the high voltage is present and the insulation of the protected equipment is endangered, the lightning arrester acts immediately and leads the high voltage impact current to the earth, thus limiting the amplitude of the voltage and protecting the insulation of the equipment. When the overvoltage is gone, the arrester is restored to its original state quickly, so as to protect the power equipment.

Company profile:

Wenzhou Britec Electric Co.,Ltd. was founded in 2003, it's a professional manufacturer in SPDs. We are specialized in developing and marketing of high quality surge arresters, including AC surge protector, DC surge protection device, data surge protective, LED lightning protection in the market. Welcome all customers over the world to contact us for future business relationship and achieving mutual success!

BR-40DP 2P Electric Surge Protective Device Type 3 Spd 275V 40kA Lightning Protection 2

BR-40DP 2P Electric Surge Protective Device Type 3 Spd 275V 40kA Lightning Protection 3

BR-40DP 2P Electric Surge Protective Device Type 3 Spd 275V 40kA Lightning Protection 4

Certificate:

BR-40DP 2P Electric Surge Protective Device Type 3 Spd 275V 40kA Lightning Protection 5

Payment & Shipping:

BR-40DP 2P Electric Surge Protective Device Type 3 Spd 275V 40kA Lightning Protection 6BR-40DP 2P Electric Surge Protective Device Type 3 Spd 275V 40kA Lightning Protection 7

FAQ:

Q1: When I can receive quotation and detail information after send the enquiry?
  A: Reply will be sent in 24hours.

Q2: Do you provide samples? Is it free or extra?
  A: Yes, we could provide the sample, but it is not free.

Q3: How's the delivery? Because I really need them is urgently?
  A: Samples cost 7 days. Bulk order cost 20 days.

Q4: If I want to release order, what's the payment method you accept?
  A: We accept T/T, Paypal etc.

Q5: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
  A: Yes, we have product catalogue. Please contact us on line or send an Email to sending the catalogue.
