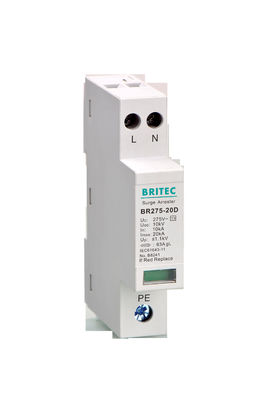

Name: BR275-20DP 2P 20kA Surge Protective Device Type 3 Lightning Arrester Spd Single phase 2 Pole
Brand: BRITEC
SKU: BR275-20DP 2P
Rating: 5 (113 reviews)

Home Products Surge Protective Device Type 3

BR275-20DP 2P 20kA Surge Protective Device Type 3 Lightning Arrester Spd Single phase 2 Pole

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BR275-20DP 2P

Payment & Shipping Terms:

Minimum Order Quantity:	20 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Test Standards:	IEC Standard	Class:	IP20
Up:	1.1kV	Uoc:	10kV
Package:	Carton Package	Waveform:	8/20
Quality:	100%Brand	Tu:	-40℃...+80℃
Type:	T3	Place Of Origin:	CN;ZHE
High Light:	Surge Protective Type 3 Arrester Spd , Single Module Surge Protective Type3 Arrester , 20kA Surge Protective Type3 Arrester

Thermal Plastic Type 3 Single Module 2 Pole 20kA Surge Protective Device With Window Indication

Single Module 2 Pole 20kA Surge Protective Device Feature:

Product Feature:

surge protection, large current capacity, low residual voltage, fast response time, standard guide rail design, convenient installment, module deterioration indication, the thermal automatic release function, it can auto recovered after the faults remove, and do not affect the normal power supply.

Delivery time:15days
Type:T3
Number of Pole:2
Place of Origin:CN;ZHE
Quality: 100%Brand
Standard: IEC Standard
Packing: Carton

Single Module 2 Pole 20kA Surge Protective Device Product Details:

	BR30-20DP	BR75-20DP	BR150-20DP	BR275-20DP
SPD classification according to EN61643-11	Type 3	Type 3	Type 3	Type 3
SPD classification according to IEC61643-11	Class III	Class III	Class III	Class III
Nominal a.c. voltage Un	24V	60V	120V	230V
Max. continuous operating a.c. voltage Uc	30V	75V	150V	275V
Max. continuous operating d.c. voltage Uc	38V	100V	190V	300V
Nominal discharge current (8/20us) In	10kA	10kA	10kA	10kA
Combined impulse Uoc	10kV	10kV	10kV	10kV
Voltage protection level Up	≤300V	≤600V	≤800V	≤1200V
Response time tA	≤25ns	≤25ns	≤25ns	≤25ns
Operating temperature range Tu	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃
Operating state / fault indication	green / red	green / red	green / red	green / red
Cross-section area (Min.)	2.5mm²	2.5mm²	2.5mm²	2.5mm²
Cross-section area (Max.)	16mm²	16mm²	16mm²	16mm²
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0
Degree of protection	IP20	IP20	IP20	IP20
Order Code	B8245	B8343	B8341	B8339
Order Code (With remote signaling)	B8246	B8344	B8342	B8340

Dimension:

BR275-20DP 2P 20kA Surge Protective Device Type 3 Lightning Arrester Spd Single phase 2 Pole 1

Single Module 2 Pole 20kA Surge Protective Device Application:

• Used to guard sensitive equipments from voltage spike.

• Protecting low-voltage consumers' installations against indirect lightning discharges.

• Ideally suited for use in the main distribution board of the low-voltage consumer’s installation of a building.

• It is suitable for the power supply system with the rated voltage of 220V/380V, which is used to protect the indirect lightning and direct lightning and other instantaneous overvoltage in the power supply system of 50/60HZ.

Single Module 2 Pole 20kA Surge Protective Device Advantage:

• Single module device saving you space.

• High nominal current.

• Advanced production process and beautiful appearance.

• With the power status indication, indicating the working state of surge protector.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

Working principle of product:

When the surge protector has no voltage, the impedance is very high, which means that the circuit breaker is open. When the voltage occurs, the impedance drops to a few Europe, and the surge current will flow through the surge protector and will not enter the device. At the same time, because the surge protector has a small impedance at this time, the voltage on both sides of the surge is relatively small, and because he is in parallel with the protected equipment, it prevents the equipment from suffering from large surge power. Pressure, so as to play the effect of discharge and pressure limiting.

Our Company:

Wenzhou Britec Electric Co.,Ltd is located in Yueqing City, Zhejiang Province, China. Our factory is the specialized manufacturer of SPDs including AC surge arrester, DC surge protector, data surge protective device, LED lightning protection, etc. We export lightning arrester to South America, Middle East, Africa, Europe, and other areas.

BR275-20DP 2P 20kA Surge Protective Device Type 3 Lightning Arrester Spd Single phase 2 Pole 2

Workshop:

Our certifications:

BR275-20DP 2P 20kA Surge Protective Device Type 3 Lightning Arrester Spd Single phase 2 Pole 4

FAQ:

Q1. Are you a manufacturer or a trading company?
A: We are the direct factory manufacturer.

Q2. Where is your company located?
A: Our factory is located in Yueqing City, Zhejiang Province, China(mainland).

Q3. What are your main products?
A: Our main products are AC lightning protector, PV(solar) surge arrester, data SPDs, LED surge protection device, etc.

Q4. What's your nearest port?
A: Ningbo / Shanghai Port.

Q5. What's your payment term?
A: Normally 30% deposit and rest by TT before shipping.
