| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV/UL |
| Model Number: | BR-25M 2P |
| Minimum Order Quantity: | 1 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Item Name: | 275v Surge Protection Device | Place Of Origin: | Wenzhou,Zhejiang |
|---|---|---|---|
| Response Time: | 25ns | Number Of Positions: | 2P |
| Brand Name: | BRITEC | Model Numbers: | BR-25M 2P |
| Rated Voltage: | AC 275V | EN Type: | Type 1 |
| Color: | White | ||
| High Light: | lightning T1+T2 Surge Arrester B+C,35mm Dinrail type 1 spd,type 1 surge protection device |
||

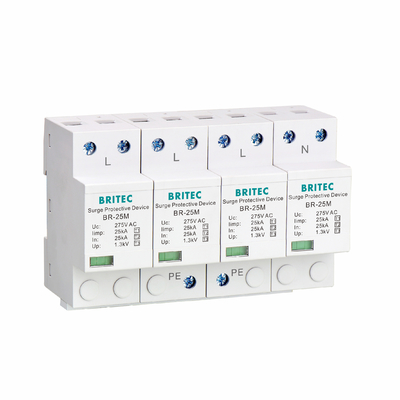

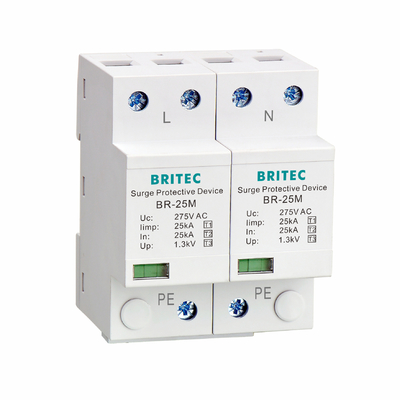

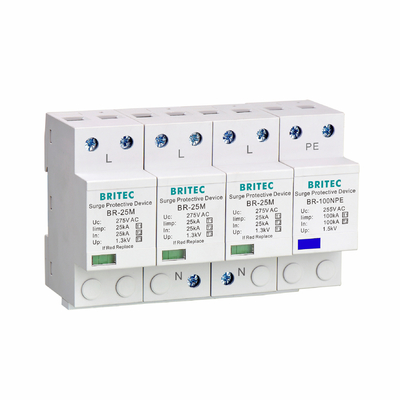

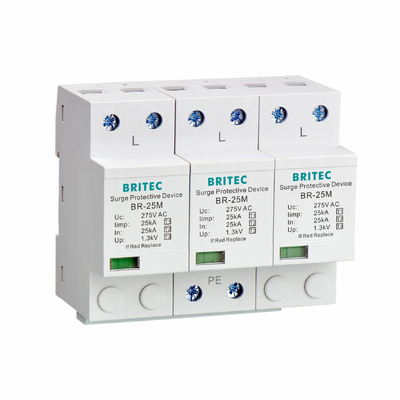

T1 Type 1 surge arrester Class I+II lightning 275v surge protection device
275v surge protection device Features:
+ Connectable lightning current and surge arrestors
+ High arresting capacity up to 25 kA (10/350μs)
+ Visual status display
+ Available with optional remote signalling
+ Vibration-proof
+ Combination arrestors for buildings with lightning protection
+ Simple standard hat rail mounting
+ Labelled connections
+ Usable in systems with lightning protection class I+II
275v surge protection device Technology characteristic:
| BR-25M 2P | |
| Max. continuous operating a.c. voltage Uc | 275V |
| Lightning impulse current (10/350us) Iimp | 25kA |
| Nominal discharge current (8/20us) In | 25kA |
| Maximum discharge current (8/20us) Imax | 100kA |
| Voltage protection level Up | ≤1.3kV |
| Response time tA | ≤25ns |
| Max. backup fuse | 315A |
| Operating temperature range Tu | -40℃—80℃ |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermoplastic UL94-V0 |
| Test standards |
IEC 61643-11, EN 61643-11 |
275v surge protection device Dimension:
275v surge protection device Benefits:
Easy installation
DIN rail mounting
Max nominal discharge phase 100 kA
Excellent protection for electrical panel
CB, CE, TUV,RoHS Certificate:
Wenzhou Britec Electric Co., Ltd. established in the year of 2003 and located in Yueqing, Zhejiang, China. Our company specialized in research and development of surge protection devices.The series of surge protection device Type 1 and Type 2 and Type 3, BR PV and SPDs for Data offer the market with a new choice of high quality surge arresters. All our goods enjoy 5-year warranty. Most of our products are sold to Germany, United Kingdom, Italy, Spain, France, Hungary, Brazil, Argentina, South Korea, Hongkong, Singapore, Malaysia, Thailand, Indonesia, other countries and regions.
Q: Are you trading company or manufacturer?
A: We are professional manufacturer specialized in orthopedic and sport products. And we trade our products with our clients directly.
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.
Q: Can we use our own logo?
A: Yes, we can print your private logo according to your request.
Q: What’s your MOQ?
A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
