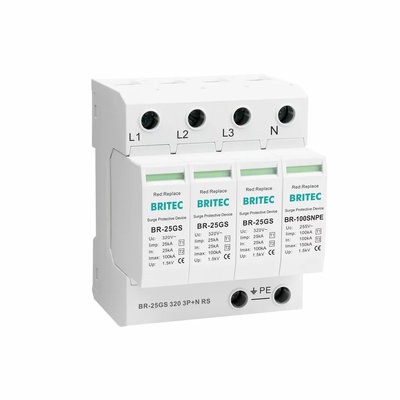

25kA Type 1+2 Surge Arrester with DIN Rail 35mm Mounting for Reliable Surge Protection Device

Large Image : 25kA Type 1+2 Surge Arrester with DIN Rail 35mm Mounting for Reliable Surge Protection Device

Product Details:

Brand Name:	BRITEC
Certification:	TUV/CB/CE/ROHS/ISO9001
Model Number:	BR-25GS 3P+N
Document:	BR-25GS 1P+N.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Packaging Details:	Carton
Delivery Time:	15 Days After Receipt Of Deposit
Payment Terms:	TT
Supply Ability:	1000000 Per Month

Contact Now

25kA Type 1+2 Surge Arrester with DIN Rail 35mm Mounting for Reliable Surge Protection Device

Description

Operating Temperature:	-40℃~+80℃	Remote Signaling:	Option
Customized:	Yes	Maximumdischargecurrent (Imax):	100kA
Relative Humidity:	≤95％	Conform To:	IEC/EN 61643-11
Poles:	1P,1P+N ,2P,3P,3P+N, 4P Optional	Model Numbers:	BR-25GS 1P+N
Highlight:	25kA Surge Arrester , Type 1+2 Surge Protection Device , DIN Rail 35mm SPD

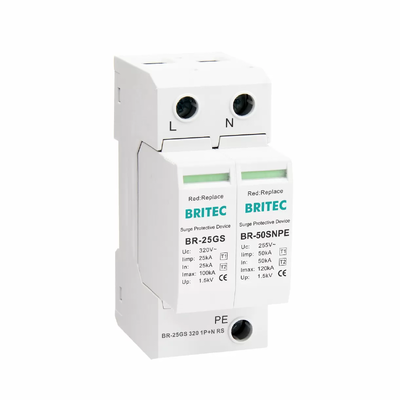

BR-25GS 1P+N Type B+C SPD T1 25kA Surge Protection Device

Product Overview

Type 1+2 25kA Surge Arrester designed for TT and TNS AC systems, providing comprehensive lightning surge control and power protection.

Key Features

Product Name: T1+T2 Surge Arrester B+C
Conforms to IEC/EN 61643-11 standards
Designed for effective surge protection device (SPD) applications
Functions as a reliable lightning protector to safeguard electrical systems
Suitable for environments with relative humidity ≤95%
Easy installation with DIN Rail 35 mm method of assembly
Customization options available to meet specific requirements
Optional remote signaling feature for monitoring surge arrester status

Technical Specifications

Method Of Assembly	DIN Rail 35 Mm
Customized	Yes
Color	Grey
Relative Humidity	≤95%
Poles Number	1P+N
Poles	1P, 1P+N, 2P, 3P, 3P+N, 4P Optional
Classification	Type B+C
Degree Of Protection	IP20
Conform To	IEC/EN 61643-11
Dimensions	Varies By Model

Detailed Specifications

Specification	BR-25GS 150 1P+N	BR-25GS 275 1P+N	BR-25GS 320 1P+N
SPD classification (EN61643-11)	Type 1 + Type 2	Type 1 + Type 2	Type 1 + Type 2
SPD classification (IEC61643-11)	Class I + Class II	Class I + Class II	Class I + Class II
Nominal operating a.c. voltage (Un)	120V/240V(50/60Hz)	230V/400V(50/60Hz)	240V/415V(50/60Hz)
Max. continuous operating a.c. voltage (Uc)	150V/255V(50/60Hz)	275V/255V(50/60Hz)	320V/255V(50/60Hz)
Lightning impulse current (10/350μs)	25kA/50kA	25kA/50kA	25kA/50kA
Nominal discharge current (8/20μs)	25kA/50kA	25kA/50kA	25kA/50kA
Max. discharge current (8/20μs)	100kA/120kA	100kA/120kA	100kA/120kA
Quantity of electric charge	12.5As/25As	12.5As/25As	12.5As/25As
Specific energy	156kJ/Ω, 625kJ/Ω	156kJ/Ω, 625kJ/Ω	156kJ/Ω, 625kJ/Ω
Voltage protection level	≤1.5kV/≤1.5kV	≤1.5kV/≤1.5kV	≤1.5kV/≤1.5kV
Max. backup fuse	200A gG	200A gG	200A gG
Short-circuit current rating a.c.	25kA	25kA	25kA
Follow current extinguishing capability	25kA/100A	25kA/100A	25kA/100A
Temporary overvoltage TOV-withstand (L-N)	230V/120min.	440V/120min.	580V/120min.
Temporary overvoltage TOV-withstand (N-PE)	1200V/200ms	1200V/200ms	1200V/200ms
Response time	≤100ns	≤100ns	≤100ns
Leakage current	＜0.1mA	＜0.1mA	＜0.1mA
Operating temperature range	-40℃-85℃	-40℃-85℃	-40℃-85℃
Operating state/fault indication	green/red	green/red	green/red
Cross-section area (Min.)	4mm²	4mm²	4mm²
Cross-section area (Max.)	35mm²	35mm²	35mm²
For mounting on	35mm Din rail	35mm Din rail	35mm Din rail
Enclosure material	Thermoplastic UL94-V0	Thermoplastic UL94-V0	Thermoplastic UL94-V0
Degree of protection	IP20	IP20	IP20
Order Code	B17060	B17073	B17098
Order Code (With remote signaling)	B17061	B17074	B17099

Suffixes: Add Suffix "RS" for dry contact remote signaling version. Example: BR-25GS 275 1P+N RS

Additional Features

Remote signalling available
35mm wide electrical installation guide rail
Simple and easy to use
More reliable and more safety
Surge protect, prevents home electric network receive excessive impact while lightning
Number of poles: 1P+N

Applications

For protecting low voltage equipment from surge damages
Especially suitable for application in the A grade lightning protection in high risk area of lightning strike
Suitable for indoor operation (if installed outdoors, must be equipped with waterproof shell)
Mainly used for the first stage of lightning surge overvoltage protection in AC distribution system
Used to protect electrical and electronic equipment from lightning electromagnetic pulse induced voltages, operating transients and overvoltages
Widely used in communication equipment, power, security, traffic, industrial control and other fields of power protection
Distribution box with overhead input in building

Installation Guidelines

Installations more than 10 m high (apartment buildings, office buildings, hotels, etc.): type 2 SPD recommended for protecting private areas and floor distributors (communal areas) in addition to a type 1 or type 1+2 SPDs.

Customization Options

BRITEC offers customizable T1+T2 Surge Arrester B+C products designed to provide reliable surge protection device (SPD) solutions. Our model BR-25GS 3P+N, originating from China, is certified with TUV, CB, CE, ROHS, and ISO9001 standards, ensuring high quality and safety.

The BR-25GS series includes various model numbers such as BR-25GS 1P+N, with dimensions that vary by model to suit diverse installation requirements. Poles options include 1P, 1P+N, 2P, 3P, 3P+N, and 4P, allowing for tailored configurations to match specific electrical systems.

Our surge protection devices are designed with SPD T1 25kA capabilities, delivering effective protection against transient overvoltages. Customization is available to meet your unique needs, including optional remote signaling for enhanced monitoring and control.

We maintain a strong supply ability of 1,000,000 units per month, with a minimum order quantity of 50PCS. Products are securely packaged in cartons and shipped within 15 days after receipt of deposit, with payment terms set as TT.
