25kA Type 1 Pluggable Surge Arrester SPD for Lightning Protection in Industrial Applications

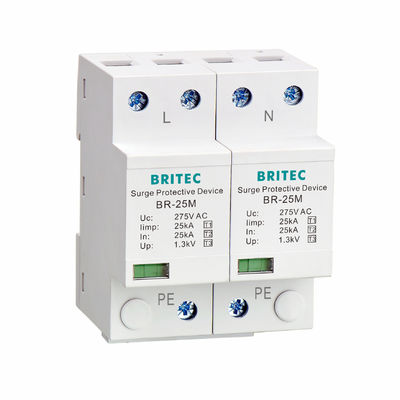

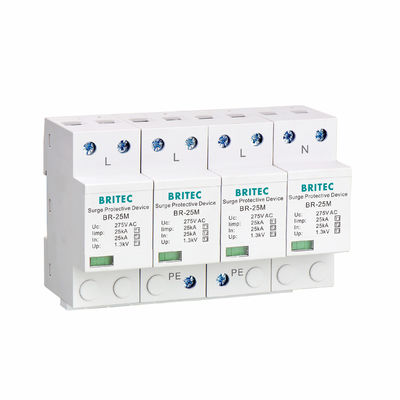

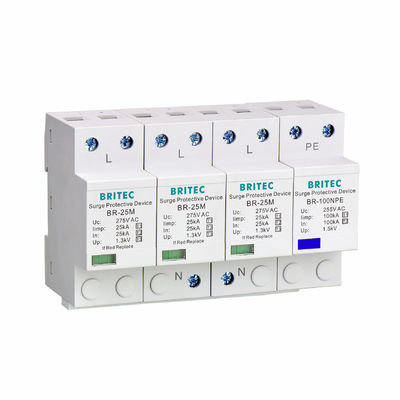

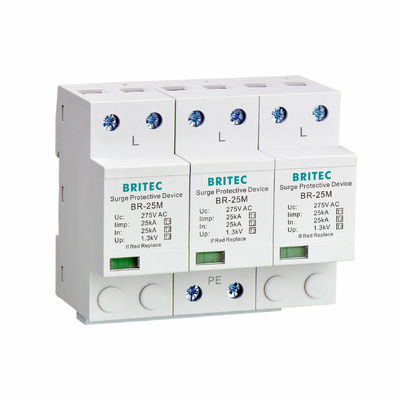

Large Image : 25kA Type 1 Pluggable Surge Arrester SPD for Lightning Protection in Industrial Applications

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV/CB/CE/ROHS/ISO9001
Model Number:	BR-25M 4P

Payment & Shipping Terms:

Minimum Order Quantity:	15 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C,D/A,T/T,Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

25kA Type 1 Pluggable Surge Arrester SPD for Lightning Protection in Industrial Applications

Description

Item Name:	Thunder Surge Protection Device	Model Numbers:	BR-25M 4P
EN Type:	T1	Configuration:	AC 275V
Place Of Origin:	Wenzhou	Response Time:	25ns
Brand Name:	BRITEC	MOQ:	15PCS
Highlight:	25kA thunder arrester , Type 1 thunder arrester , 25kA power strip protector

BR-25M 4P 25kA Surge Arrester Type 1 Thunder Arrester SPD Class 1 Pluggable

Product Overview

25kA surge arrester Type 1 thunder surge protection device power strip protector designed for industrial applications and lightning protection systems.

Key Features

Type 1 SPD capable of discharging lightning current with waveform 10/350μs
Designed for installation in primary distribution boards at the origin of electrical installations
Must be used in conjunction with coordinated Type 2 devices for complete protection
Essential for installations with lightning protection systems

Technical Specifications

Max. continuous operating a.c. voltage (Uc)	275V
Lightning impulse current (10/350μs) (Iimp)	25kA
Nominal discharge current (8/20μs) (In)	25kA
Maximum discharge current (8/20μs) (Imax)	100kA
Voltage protection level (Up)	≤1.3kV
Response time (tA)	≤25ns
Max. backup fuse	315A
Operating temperature range (Tu)	-40℃ to +80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0
Test standards	IEC 61643-11, EN 61643-11

Product Dimensions

Applications

Application-optimized and prewired combined lightning current arrester. Particularly useful in high lightning density areas where the risk of heavy surge current or direct strikes is high (e.g., buildings equipped with lightning rods).

Certifications

Our company maintains ISO9001, ISO45001, and ISO14001 management systems. Various products are TUV, CB CE, RoHS certified.

Company Information

Wenzhou Britec Electric Co., Ltd. was established in 2003 and is located in Yueqing, Zhejiang, China. We specialize in research and development of surge protection devices. Our product range includes Type 1, Type 2, and Type 3 surge protection devices, BR PV SPDs, and SPDs for data applications, offering the market high-quality surge arresters.

With 18 years of experience in research, development, and production of surge protection products, we provide a 5-year warranty on our devices.
