Product Details:
|
| Item Name:: | Surge Protection Device | Class: | B+C |
|---|---|---|---|
| Uc: | 275V | Iimp: | 7kA |
| In: | 20kA | Imax: | 50kA |
| Material: | Thermoplastic | Pole Number:: | 2P |
| Warranty: | 5 Years | Product Structure: | Plug |
| Type Of Current: | AC | ||
| Highlight: | SPD Ac Surge Protection Device,7KA Lightning T1+T2 Surge Arrester B+C,2P T1+T2 Surge Arrester B+C |
||

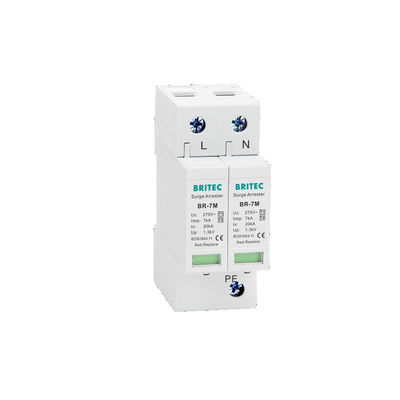

7KA Lightning arrester Type 1+2 SPD Ac Surge Protection Device IEC 61643-11
7KA Lightning arrester Type 1+2 SPD Ac Surge Protection Characteristics:
| BR-7M 275 2P | |
| SPD classification according to EN 61643-11 | Type 1 + Type 2 |
| SPD classification according to IEC 61643-11 | Class I + Class II |
| Max. continuous operating a.c. voltage Uc | 275V |
| Lightning impluse current (10/350us) Iimp | 7kA |
| Nominal discharge current (8/20us) (L-N / N-PE) In | 20kA |
| Max. discharge current (8/20us) (L-N / N-PE) Imax | 50kA |
| Voltage protection level (L-N / N-PE) Up | ≤1.3kV |
| Response time (L-N / N-PE) tA | ≤25ns |
| Operating temperature range Tu | -40℃—80℃ |
| Operating state / fault indication | green / red |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| For mounting on | 35mm Din rail |
| Protection degree | IP20 |
| Enclosure material | Thermoplastic UL94-V0 |
Technology characteristic:![]()
![]()
