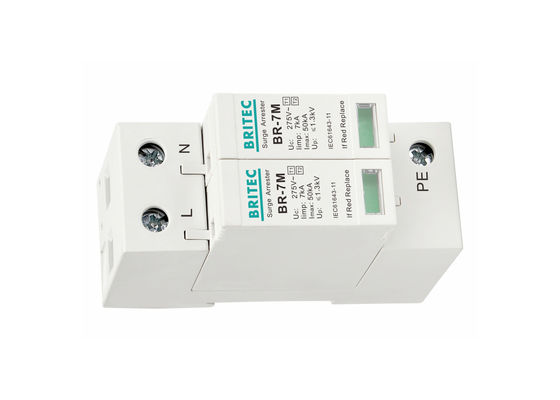

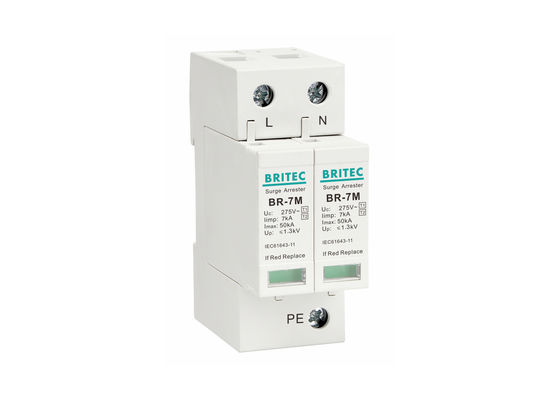

IEC 61643-11 7KA Lightning Arrester SPD Ac Surge Protection Device

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Model Number:	BR-7M 275 2P

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Item Name::	Surge Protection Device	Class:	B+C
Uc:	275V	Iimp:	7kA
In:	20kA	Imax:	50kA
Material:	Thermalplastic	Pole Number::	2P
Warranty:	2-5 Years	Colour:	White
High Light:	7KA Ac Surge Protection Device , IEC 61643-11 SPD Protection Device , Lightning arrester SPD Protection Device

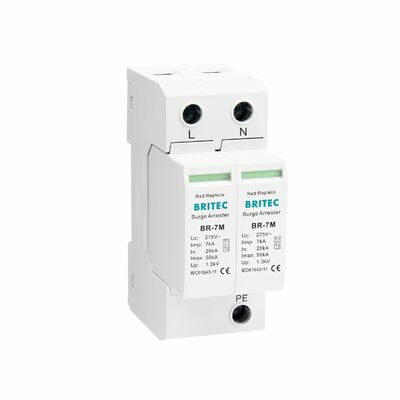

7KA Lightning arrester Type 1+2 SPD Ac Surge Protection Device IEC 61643-11

7KA Lightning arrester Type 1+2 SPD Ac Surge Protection Description:

• The lightning arrester BR-7M 2P meets the type 1+2 requirement class according to IEC 61643-11.

• Low voltage protection level.

• The use of high-performance varistors permits a rapid response time and a low protection level, without any line follow current.

• DIN-rail mounting configuration.

• If circumstances are uncertain and there is a risk of fire from an overload, the internal cut-off unit disconnects the arrestor from the mains if necessary.

7KA Lightning arrester Type 1+2 SPD Ac Surge Protection Characteristics:

	BR-7M 275 2P
SPD classification according to EN 61643-11	Type 1 + Type 2
SPD classification according to IEC 61643-11	Class I + Class II
Max. continuous operating a.c. voltage Uc	275V
Lightning impluse current (10/350us) Iimp	7kA
Nominal discharge current (8/20us) (L-N / N-PE) In	20kA
Max. discharge current (8/20us) (L-N / N-PE) Imax	50kA
Voltage protection level (L-N / N-PE) Up	≤1.3kV
Response time (L-N / N-PE) tA	≤25ns
Operating temperature range Tu	-40℃—80℃
Operating state / fault indication	green / red
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Protection degree	IP20
Enclosure material	Thermal plastic UL94-V0

Technology characteristic:

IEC 61643-11 7KA Lightning Arrester SPD Ac Surge Protection Device 0

7KA Lightning arrester Type 1+2 SPD Ac Surge Protection Features:

+ High arresting capacity up to 7 kA (10/350μs)

+ Surge capacity (8/20μs): 50kA

+ Visual status display

+ Pluggable module for easy replacement

+ Available with optional remote signaling

+ Meet both standards of UL 1449-4th and IEC 61643-11:2011

+ Vibration-proof

+ Protecting low voltage equipment from surge damages.

+ Combination arrestors for buildings with lightning protection

+ (Class B+C) for TN-S power supply system.

+ Simple standard din rail mounting

+ Quick response

+ Labelled connections

+ Double thermal disconnector devices, providing reliable protection.

+ Usable in systems with lightning protection class 1+2

When to use lightning arresters?

Lightning arresters are designed to prevent lightning or high surges ruin your valued equipment. It can be used in protecting the likes of: Energy supplies, Building installation equipment, Telecommunications, Wind power, Machine-building, Datacenters.

Our certifications:

IEC 61643-11 7KA Lightning Arrester SPD Ac Surge Protection Device 1

Logistics & payment:

IEC 61643-11 7KA Lightning Arrester SPD Ac Surge Protection Device 2

FAQ:

Q1: Are you the manufacturer factory or trading company?
A: We are the manufacturer with professional produce experience on SPD more than 17years.

Q2: Where is your factory located?
A: Our factory is located in Yueqing city, Zhejiang Province, China.

Q3: How long is the delivery time? What's your fast delivery time?
A: According to quantity, it would be 15-30days after comfimation of payment.

Q4: How to agent yours products?
A: You can purchase the samples for testing, and then you can contact the sales manager to answer more detailed agency questions for you.

Q5: How should I pay for my order ? what is the procession of this purchase?
A: You can do 30% prepayment at first, then we will start to make production. When the goods is ready, we will take pictures to you, and then you can do the ballance. After we got your payment. We will send the goods to you.
