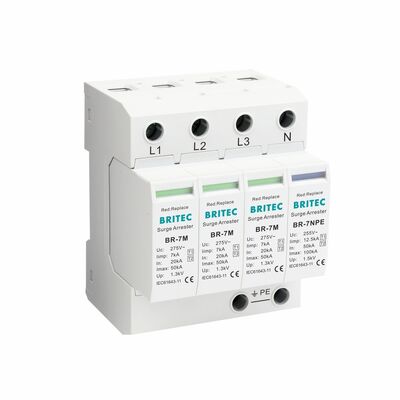

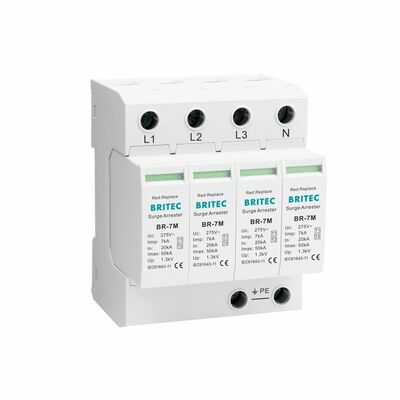

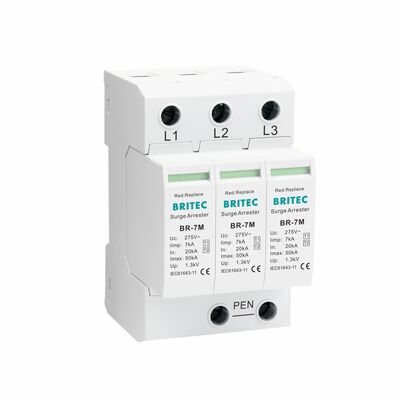

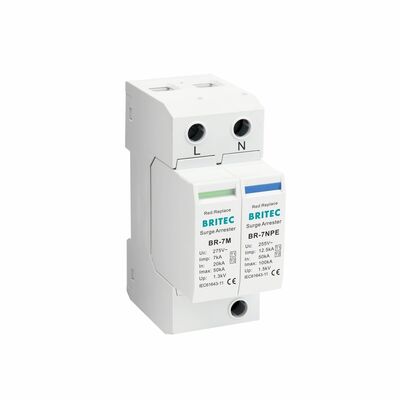

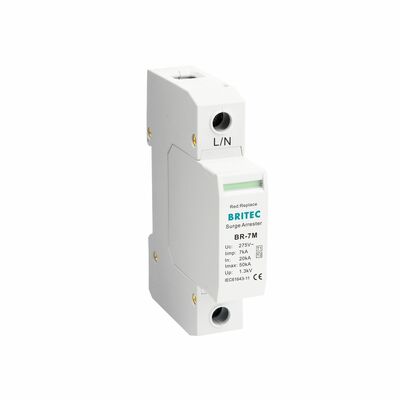

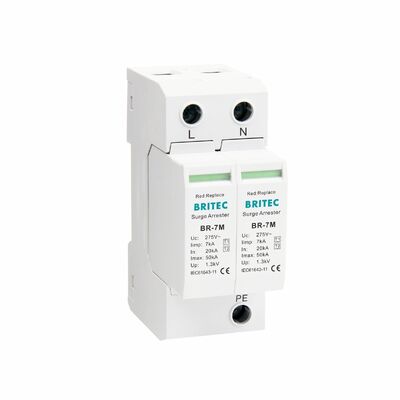

7KA Lightning Impulse Current Type 1+2 Surge Protection Device with DIN-rail Mounting

7KA Lightning Impulse Current Type 1+2 Surge Protection Device with DIN-rail Mounting
7KA Lightning Impulse Current Type 1+2 Surge Protection Device with DIN-rail Mounting 7KA Lightning Impulse Current Type 1+2 Surge Protection Device with DIN-rail Mounting 7KA Lightning Impulse Current Type 1+2 Surge Protection Device with DIN-rail Mounting 7KA Lightning Impulse Current Type 1+2 Surge Protection Device with DIN-rail Mounting 7KA Lightning Impulse Current Type 1+2 Surge Protection Device with DIN-rail Mounting 7KA Lightning Impulse Current Type 1+2 Surge Protection Device with DIN-rail Mounting

Large Image :  7KA Lightning Impulse Current Type 1+2 Surge Protection Device with DIN-rail Mounting

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV/CB/CE
Model Number: BR-7M 275 2P
Document: BR-7M 2P.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 100 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 30 days after payment
Payment Terms: T/T
Supply Ability: 100000 pieces per month
Contact Now

7KA Lightning Impulse Current Type 1+2 Surge Protection Device with DIN-rail Mounting

Description
Operating Temperature Range: -40 To +80 Deg. Standards: IEC 61643:11 , IEC 62305
Maximum Operating Voltage: 275V Poles Number: 2P
Classification: Type B+C In: 20kA (8/20us)
Max Discharge Current: 50kA OEM&ODM: Welcome
Color: White Un: 230/400 Vac/50(60)Hz
Highlight:

7KA Ac Surge Protection Device

,

IEC 61643-11 SPD Protection Device

,

Lightning arrester SPD Protection Device

7KA Lightning Arrester Type 1+2 SPD AC Surge Protection Device
Product Overview
Class I+II / Type 1+2 surge protective devices with low voltage protection level, designed for use in lightning protection zones concept at boundary 1-2. Features DIN-rail mounting and utilizes metal oxide varistor components with high discharge capacity.
Technical Specifications
Parameter Value
SPD classification (EN 61643-11) Type 1 + Type 2
SPD classification (IEC 61643-11) Class I + Class II
Max. continuous operating AC voltage (Uc) 275V
Lightning impulse current (10/350μs) Iimp 7kA
Nominal discharge current (8/20μs) In 20kA
Max. discharge current (8/20μs) Imax 50kA
Voltage protection level Up ≤1.3kV
Response time tA ≤25ns
Operating temperature range -40℃ to +80℃
Operating state / fault indication Green / Red
Cross-section area (Min./Max.) 4mm² / 35mm²
Mounting 35mm DIN rail
Protection degree IP20
Enclosure material Thermoplastic UL94-V0
Product Dimensions
7KA Lightning Impulse Current Type 1+2 Surge Protection Device with DIN-rail Mounting 0
Key Features
  • High arresting capacity up to 7 kA (10/350μs)
  • Surge capacity (8/20μs): 50kA
  • Visual status display with green/red indicators
  • Pluggable module for easy replacement
  • Available with optional remote signaling
  • Compliant with UL 1449-4th and IEC 61643-11:2011 standards
  • Vibration-proof construction
  • Protects low voltage equipment from surge damages
  • Combination arrestors for buildings with lightning protection (Class B+C)
  • Designed for TN-S power supply systems
  • Simple standard DIN rail mounting
  • Quick response time ≤25ns
  • Clearly labelled connections
  • Double thermal disconnector devices for reliable protection
  • Suitable for systems with lightning protection class 1+2
Applications
Lightning arresters prevent lightning or high surges from damaging valuable equipment. Ideal for protecting: Energy supplies, Building installation equipment, Telecommunications, Wind power systems, Machine-building facilities, and Data centers.
Certifications
7KA Lightning Impulse Current Type 1+2 Surge Protection Device with DIN-rail Mounting 1
Logistics & Payment
7KA Lightning Impulse Current Type 1+2 Surge Protection Device with DIN-rail Mounting 2 7KA Lightning Impulse Current Type 1+2 Surge Protection Device with DIN-rail Mounting 3
Frequently Asked Questions
Q1: Are you the manufacturer factory or trading company?
A: We are the manufacturer with professional production experience on SPD for more than 21 years.
Q2: Where is your factory located?
A: Our factory is located in Yueqing city, Zhejiang Province, China.
Q3: How long is the delivery time? What's your fast delivery time?
A: Delivery time is typically 15-30 days after confirmation of payment, depending on quantity.
Q4: How to become an agent for your products?
A: You can purchase samples for testing, then contact our sales manager for detailed agency information.
Q5: How should I pay for my order? What is the purchase process?
A: We require 30% prepayment to begin production. When goods are ready, we provide photos for verification before you pay the balance. After payment confirmation, we ship the goods.
